Weo pipe - female series s
WEO metric standpipe.
Partnumber:
14.821.1225
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
Cejn

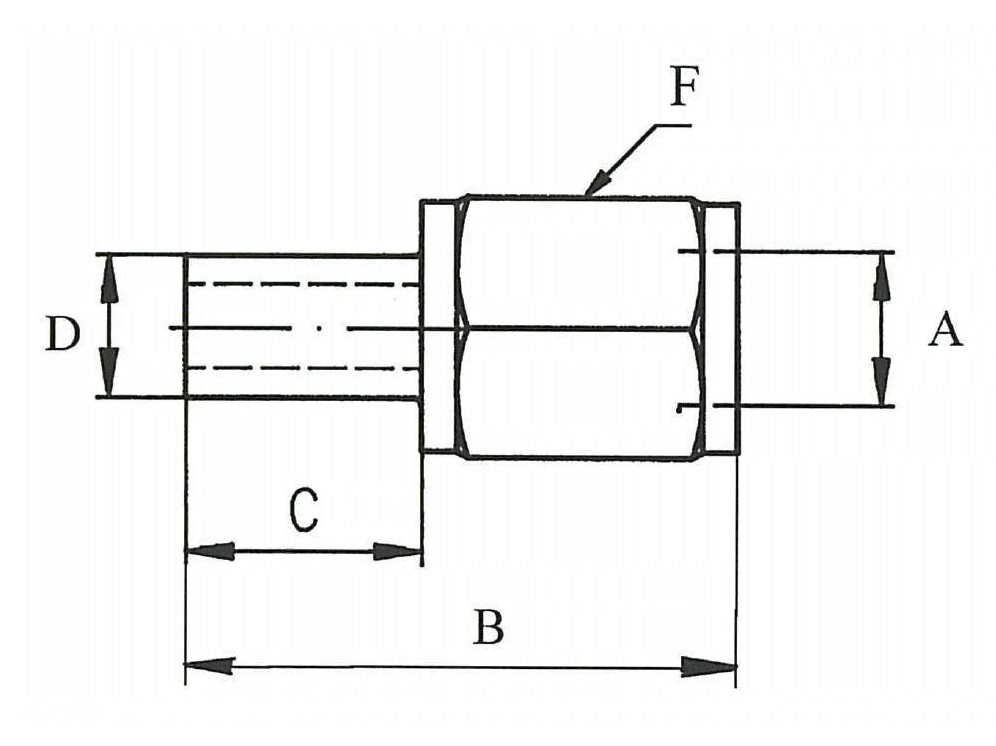

Dimension A
23 mm
Dimension B
75 mm
Dimension C
35 mm
Dimension D
25 mm
Dimension F
32 mm
Hexagon
32 mm
Material
Steel
Pressure max.
350 bar
Safety factor
4
Sealing material
NBR
Series
S
Surface treatment
Electro zinc plated
Temperature intermittent max.
+120 °C
Temperature max.
+100 °C
Temperature min.
-30 °C
WEO plug-in
3/4 "
Package size
0 pcs
Barcode
5704295491653
Gross weight
0,22 Kg
Net weight
0,22 Kg
Country of origin
Intrastat code
73269098
WEO metric standpipe.
