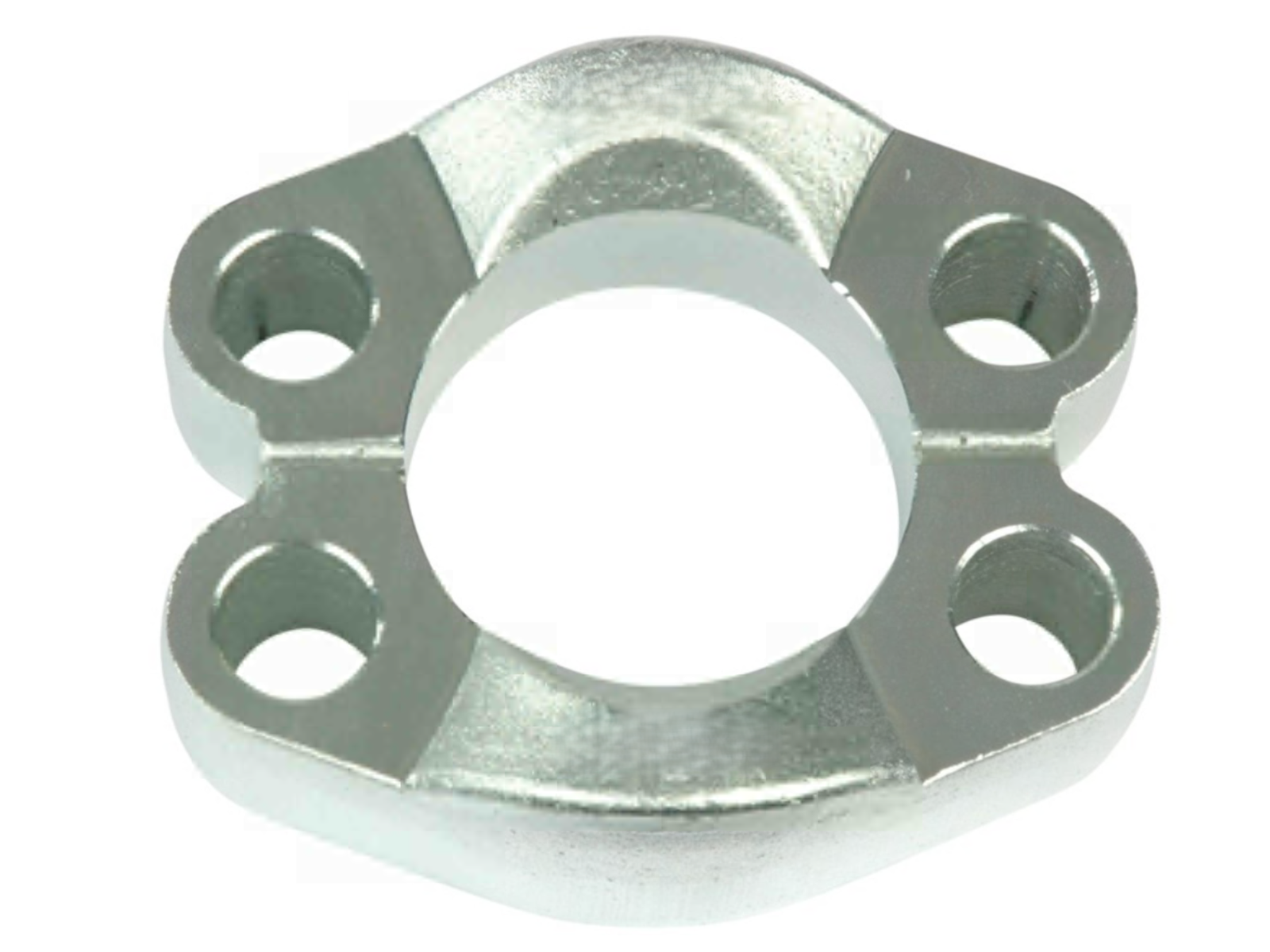

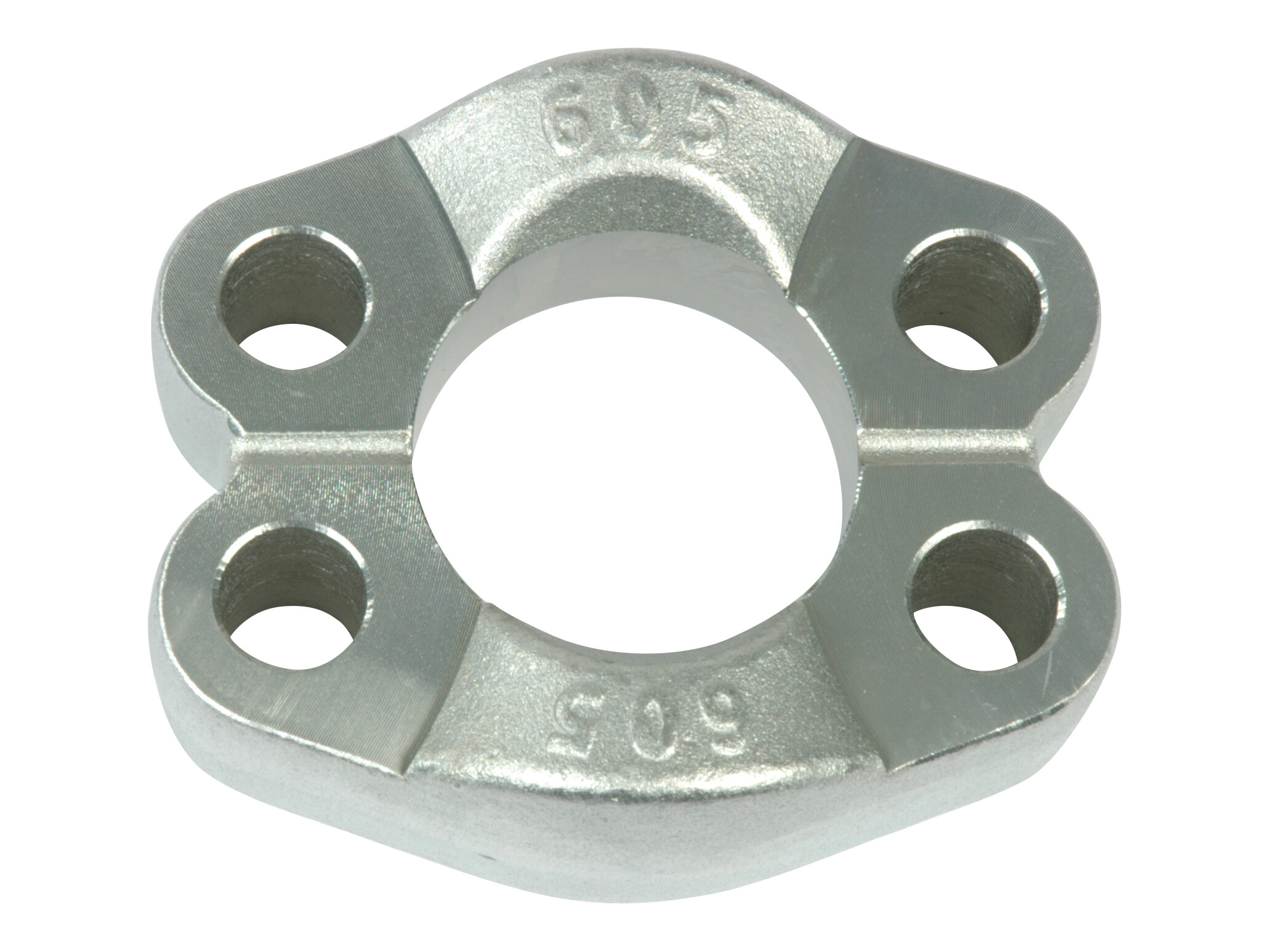

Helflanger (AFSI)

Helflanger (AFSI)

Vælg variant
VÆLG VARIANT
VÆLG VARIANT
Varenummer Beskrivelse Flange O-ring Bolt dimension Tryk maks.
AFSI305 Fuldflange 1.1/2" SAE3000
AFSI602 Fuldflange 3/4" SAE6000 3/4 " 24,99X3,53 mm M10x35 mm 420 bar
AFSI603 Fuldflange 1" SAE6000 1 " 32,93X3,53 mm M12x45 mm 420 bar
AFSI604 Fuldflange 1.1/4" SAE6000 1.1/4 " 37,69X3,53 mm M14x50 mm 420 bar
AFSI605 Fuldflange 1.1/2" SAE6000 1.1/2 " 47,22X3,53 mm M16x55 mm 420 bar
AFSI606 Fuldflange 2" SAE6000 2 " 56,75X3,53 mm M20x70 mm 420 bar
Flange SAE/DIN
6000 PSI
Standard ISO
ISO 6162-2
Standard SAE
SAE J518 Code 62
