VUP-16 - Vinkelsamler 45 gr skot 7/8-14 JIC udv x 7/8-14 JIC udv

VUP-16 - Vinkelsamler 45 gr skot 7/8-14 JIC udv x 7/8-14 JIC udv

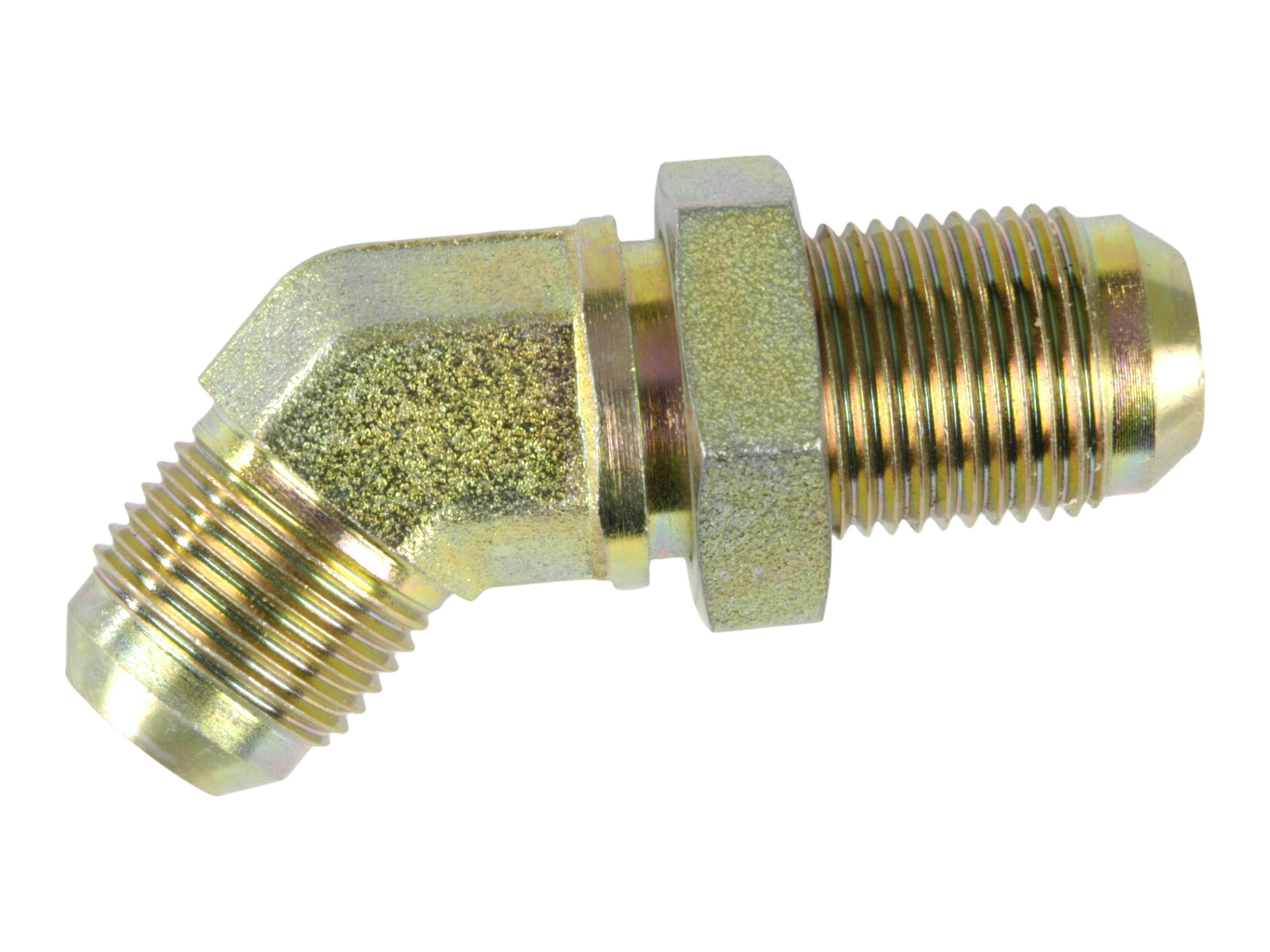

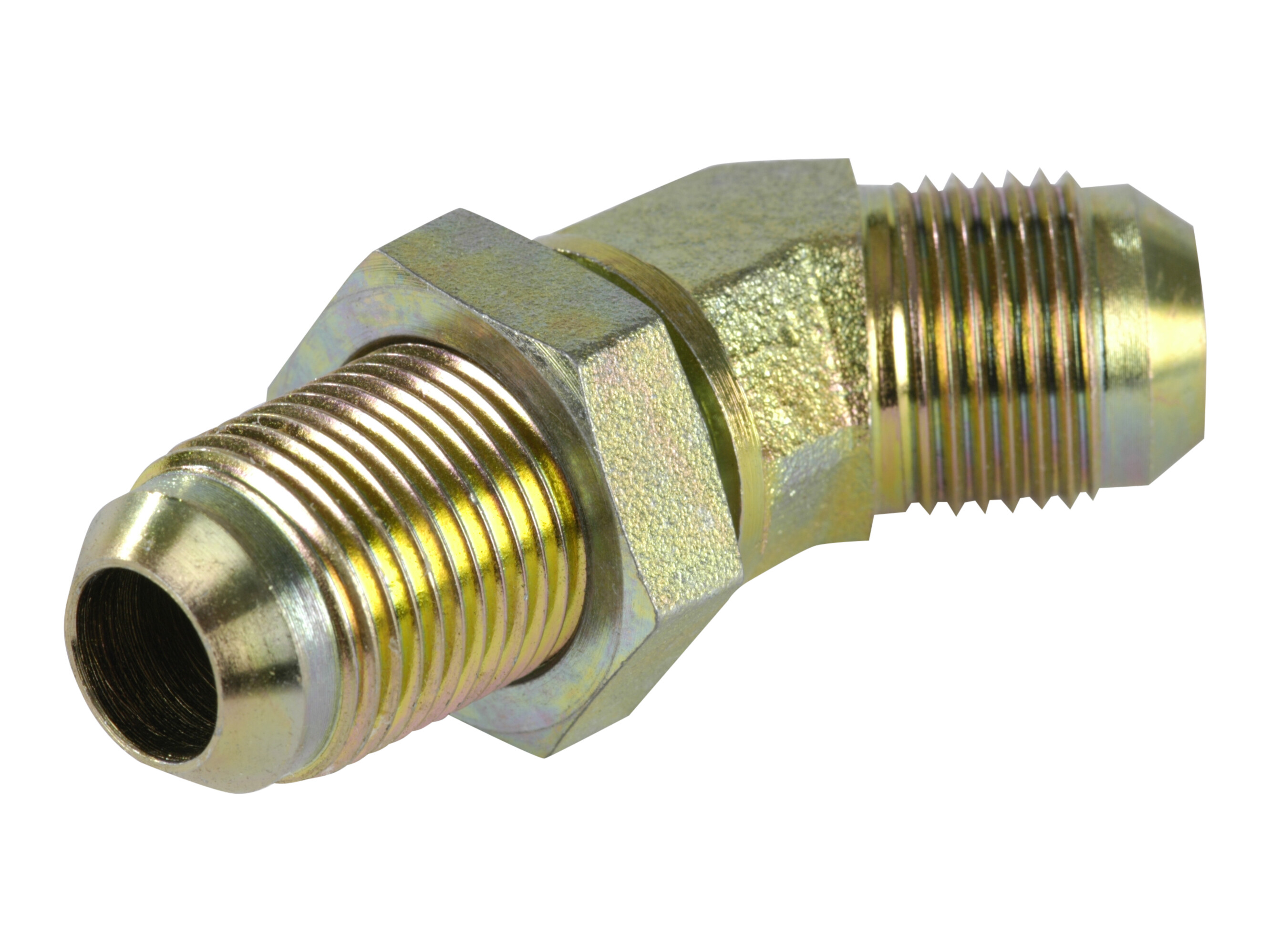

Vinkelsamler 45 gr skot 7/8-14 JIC udv x 7/8-14 JIC udv

Partnumber:

VUP-16

Package size:

0 pcs

Min. order quantity is:

1 pcs

Tilbehør (2)
Reservedele (1)

B-16 - Støttering Ø16

Partnumber: B-16

J-14/16 - Omløber 7/8-14 JIC Nøglevidde 27mm

Partnumber: J-14/16

31FS10 - Låsemøtrik 7/8 UNF

Partnumber: 31FS10

Specifications
Dimensions and shipping

28 mm

55 mm

30 mm

38,5 mm

Diameter rør

16 mm

Dimension J1

7/8-14 JIC

Gevind udvendig

7/8-14 JIC

Korrosions resistens

1400 hours salt spray DIN EN ISO 9227

Materiale

Stål

Mærke navn

FOR

Overfladebehandling

El-forzinket / hvidkromatiseret

16 mm

Tryk maks.

350 bar

Vinkel

45 °

Package size

0 pcs

Barcode

5704295979557

Gross weight

0,18 Kg

Net weight

0,18 Kg

Country of origin

ITA

Intrastat code

73071110

Product information

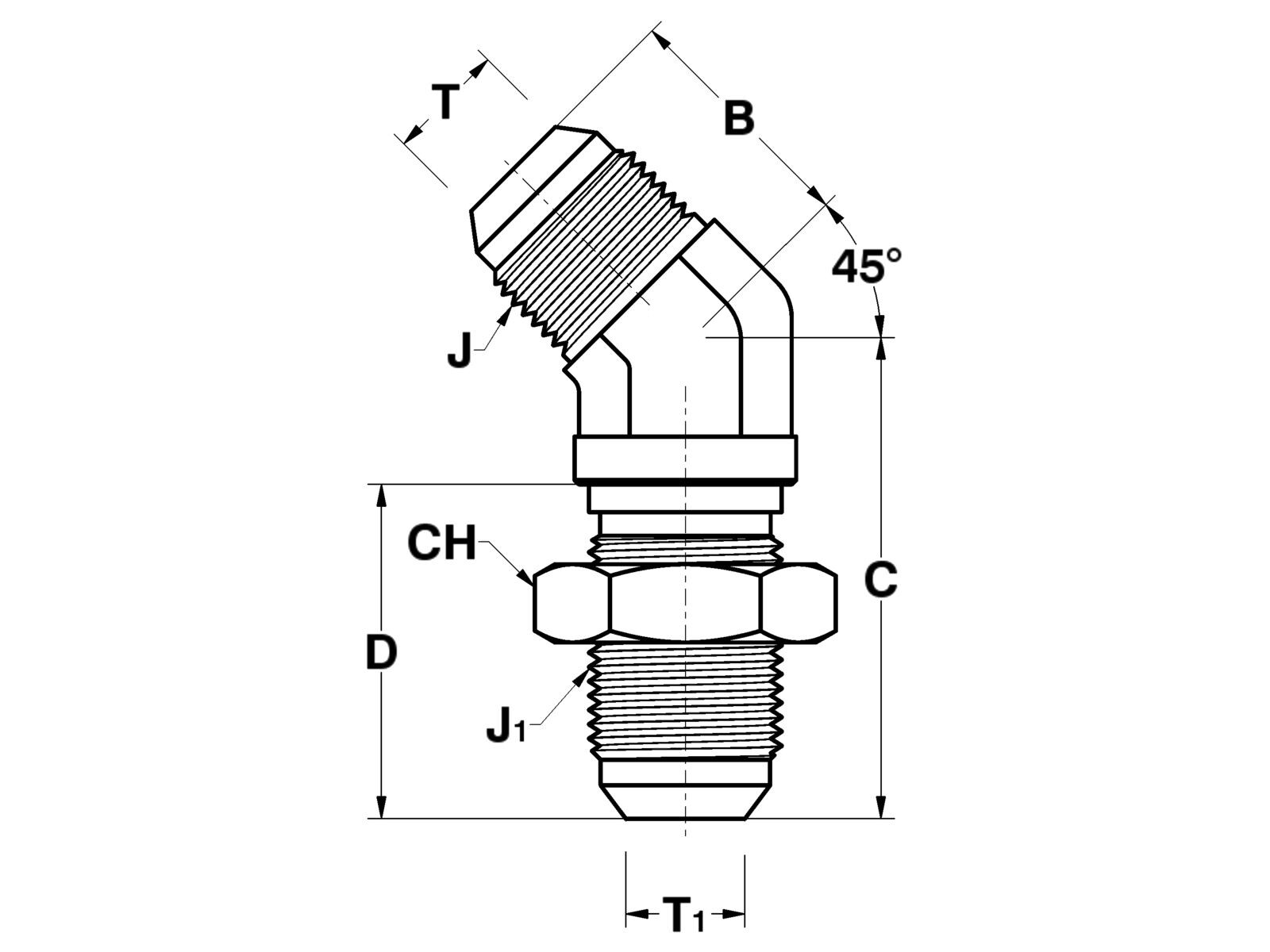

Measure sketch

Vinkelsamler 45 gr skot 7/8-14 JIC udv x 7/8-14 JIC udv

Note: Opening 3D files requires a program that supports the file format
