VG-16 - Vinkel 45 gr 7/8-14 JIC udv x 7/8-14 JIC omløber

VG-16 - Vinkel 45 gr 7/8-14 JIC udv x 7/8-14 JIC omløber

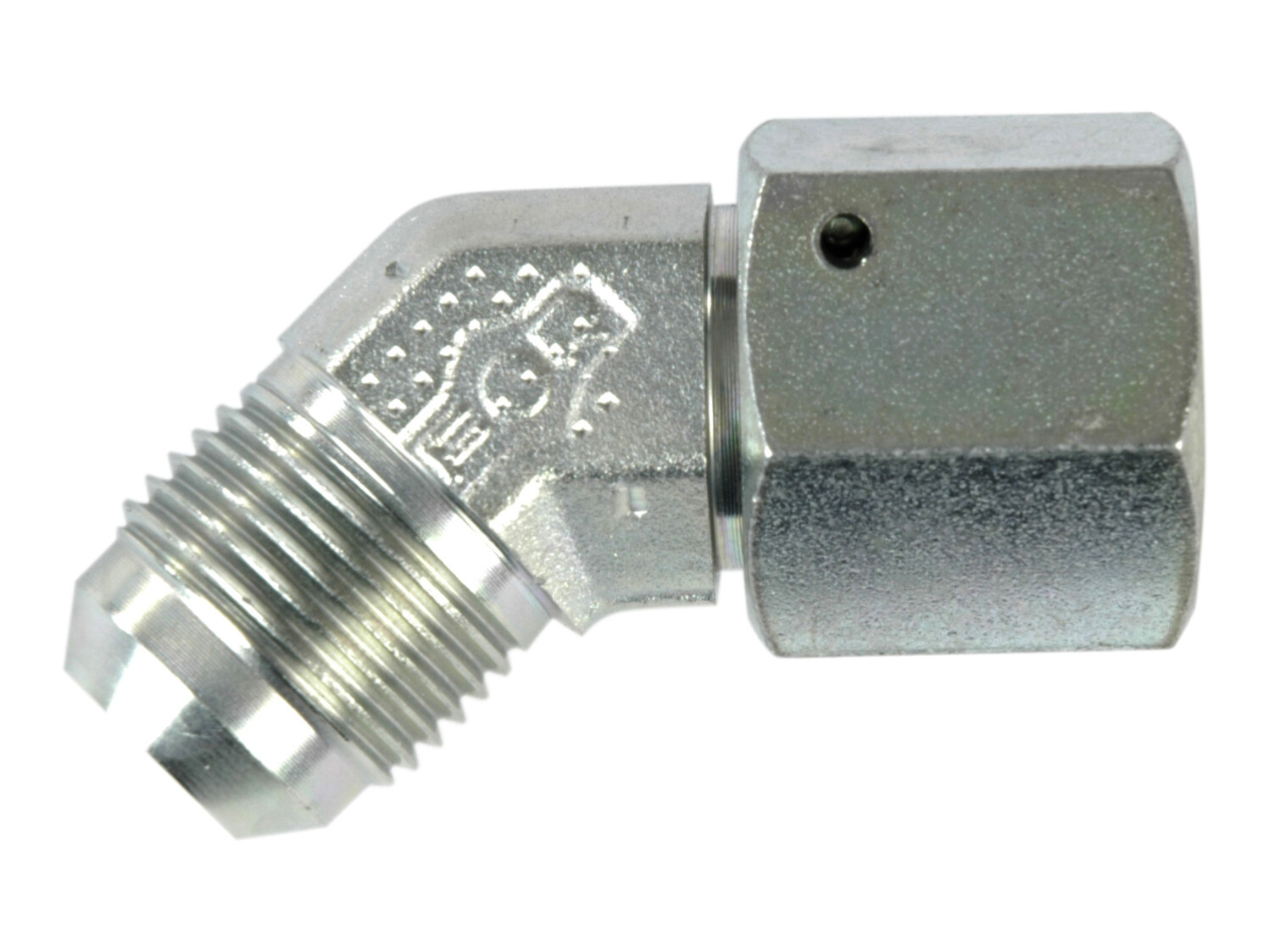

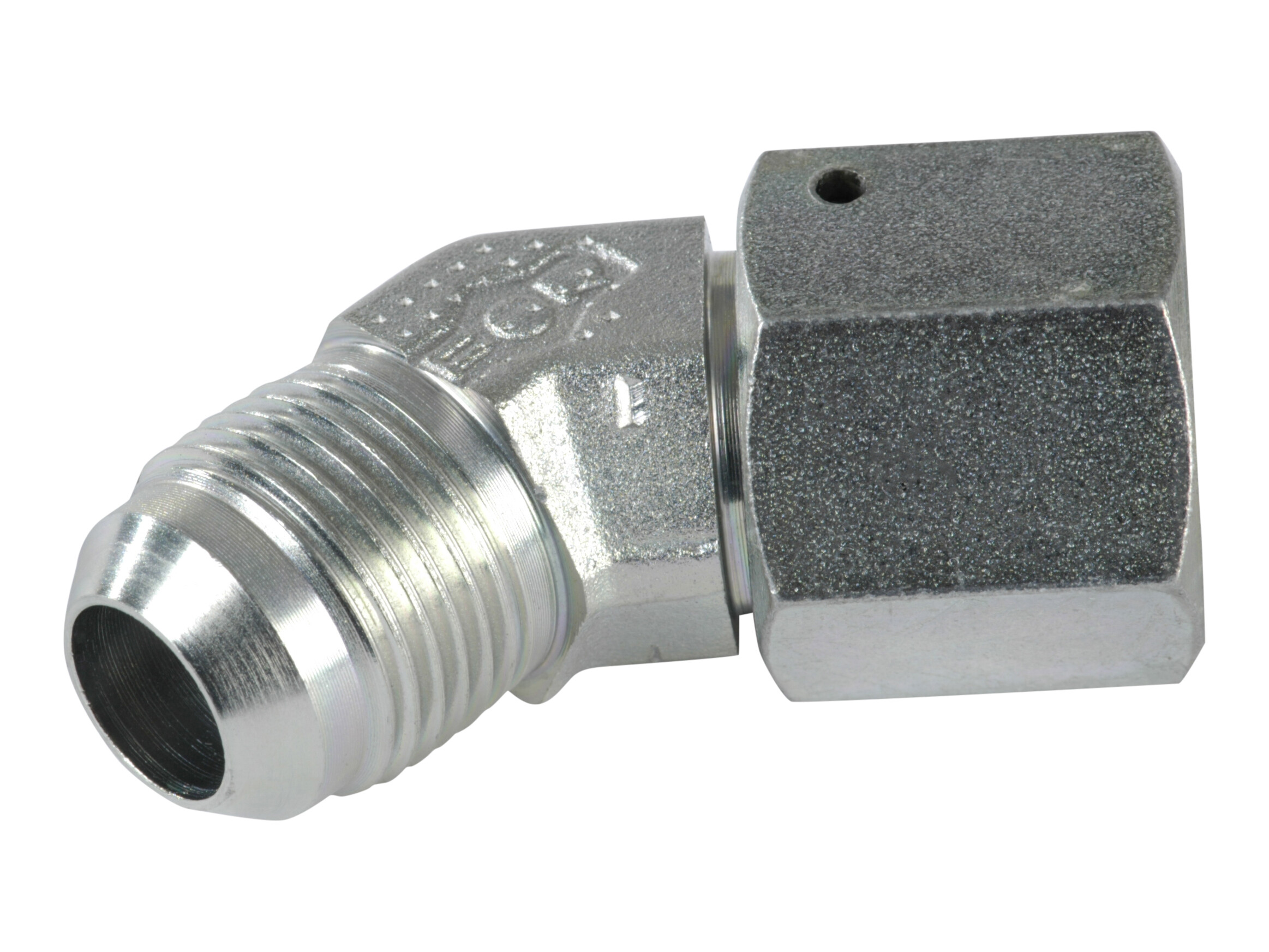

Vinkel 45 gr 7/8-14 JIC udv x 7/8-14 JIC omløber

Artikelnummer:

VG-16

Förpackningsstorlek:

0 pcs

Minsta beställningskvantitet:

1 pcs

Accessories (1)

Mutter, UNF-7/8''-14

Partnumber: J-14/16

Specifications
Dimensions and shipping

Diameter rör

16 mm

Dimension B

28 mm

Dimension C

37 mm

Dimension CH

27 mm

Dimension J

7/8-14 JIC

Dimension J1

7/8-14 JIC

Dimension T

16 mm

Gänga inv.

7/8-14 JIC

Gänga utv.

7/8-14 JIC

Modell kod

A105004/16

Märke namn

FOR

Rostbeständighet

1400 hours salt spray DIN EN ISO 9227

Tillverkningsmaterial

Stål

Tryck max.

350 bar

Vinkel

45 °

Ytskiktbehandling

El-forzinket / hvidkromatiseret

Package size

0 pcs

Barcode

5704295978772

Gross weight

0,13 Kg

Net weight

0,13 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

Vinkel 45 gr 7/8-14 JIC udv x 7/8-14 JIC omløber

Note: Opening 3D files requires a program that supports the file format
