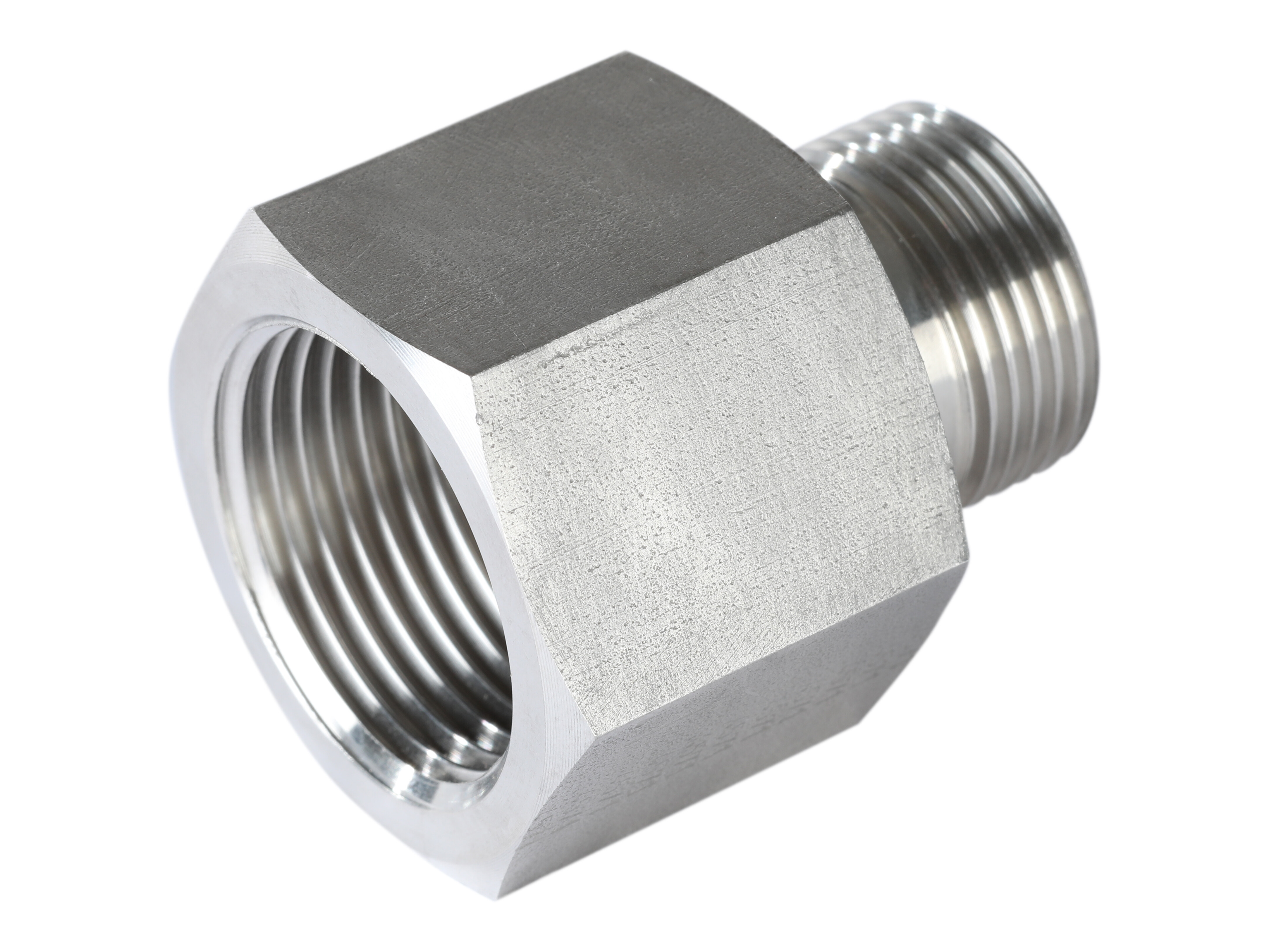

RI3/4-1/71 - Reduktion - 3/4" BSP x 1" BSP indv - AISI 316Ti
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
RI3/4-1/71
Package size:
0 pcs
Min. order quantity is:
1 pcs
If you order this item, then
RI3/4WD1/71
will be ordered instead.
Angle
0 °
Brand Name
Volz
Material
Rustfrit stål
Material quality
1.4571 / AISI316Ti
Model code
RI 3/4 x 1
Pressure max.
400 bar
Temperature max.
+400 °C
Temperature min.
-60 °C
Thread inner
G 1 BSP
Thread outer
G 3/4 BSP
Package size
0 pcs
Barcode
5704295301891
Gross weight
Kg
Net weight
Kg
Country of origin
deu
Intrastat code
73072910
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
