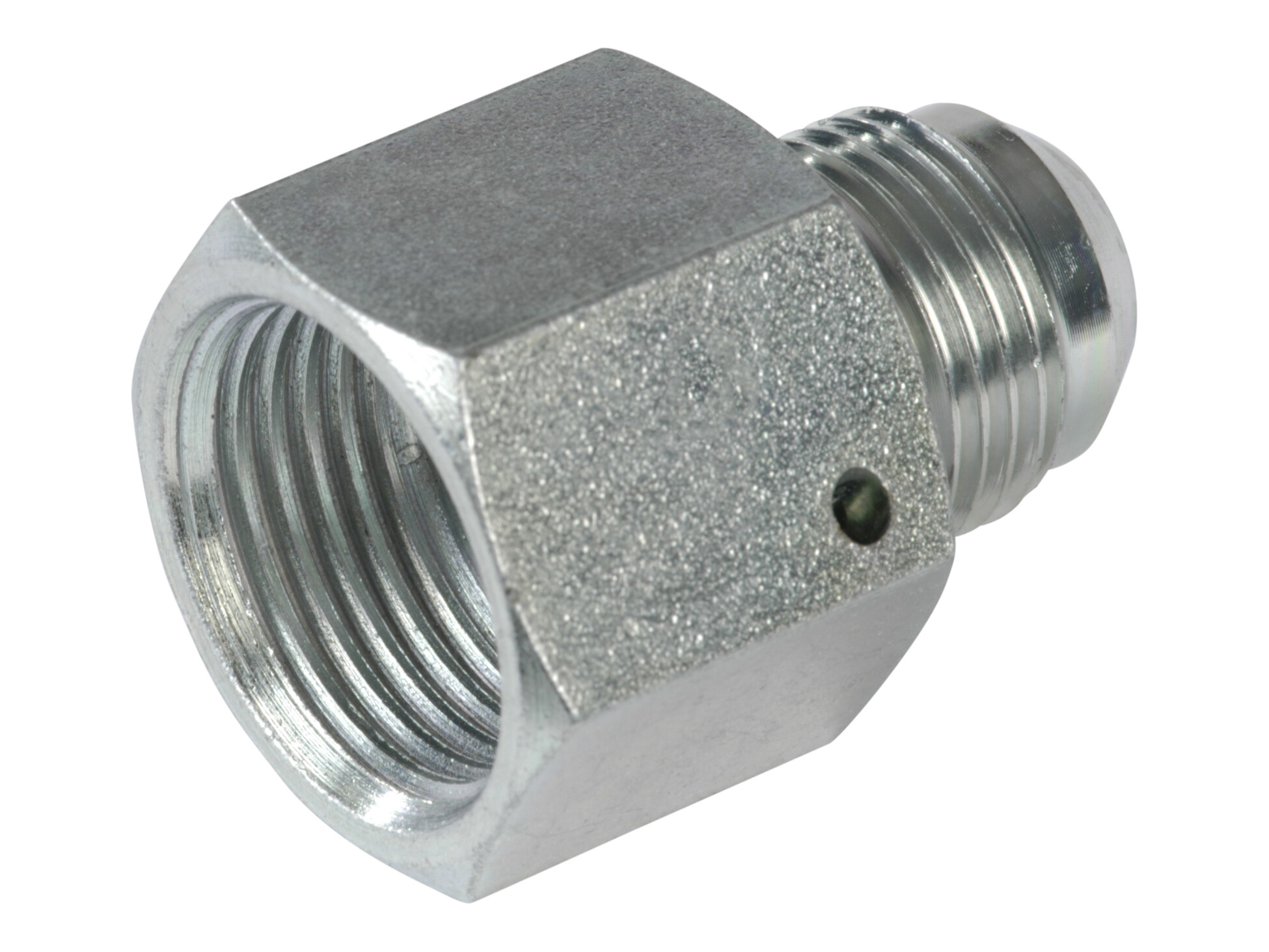

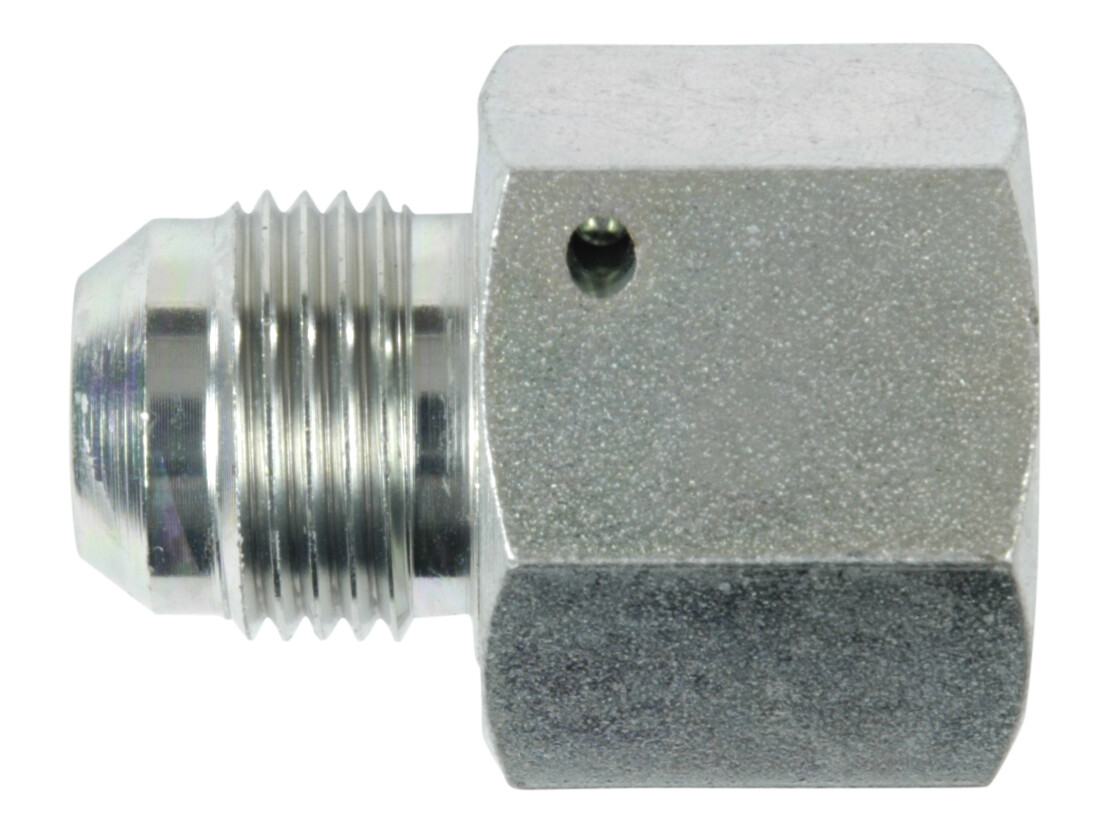

RFM-20-16 - Reduktion 1.1/16-12 JIC omløber x 7/8-14 JIC udv
Reduktion 1.1/16-12 JIC omløber x 7/8-14 JIC udv
Partnumber:
RFM-20-16
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
16 mm
Dimension A
31 mm
Dimension CH
32 mm
Dimension J
1.1/16-12 JIC
Dimension J1
7/8-14 JIC
Dimension T
20 mm
Hexagon
32 mm
Material
Stål
Pressure max.
300 bar
Surface treatment
El-forzinket / hvidkromatiseret
Thread inner
1.1/16-12 JIC
Thread outer
7/8-14 JIC
Package size
0 pcs
Barcode
5704334145189
Gross weight
0,13 Kg
Net weight
0,13 Kg
Country of origin
ITA
Intrastat code
73071110
Reduktion 1.1/16-12 JIC omløber x 7/8-14 JIC udv
