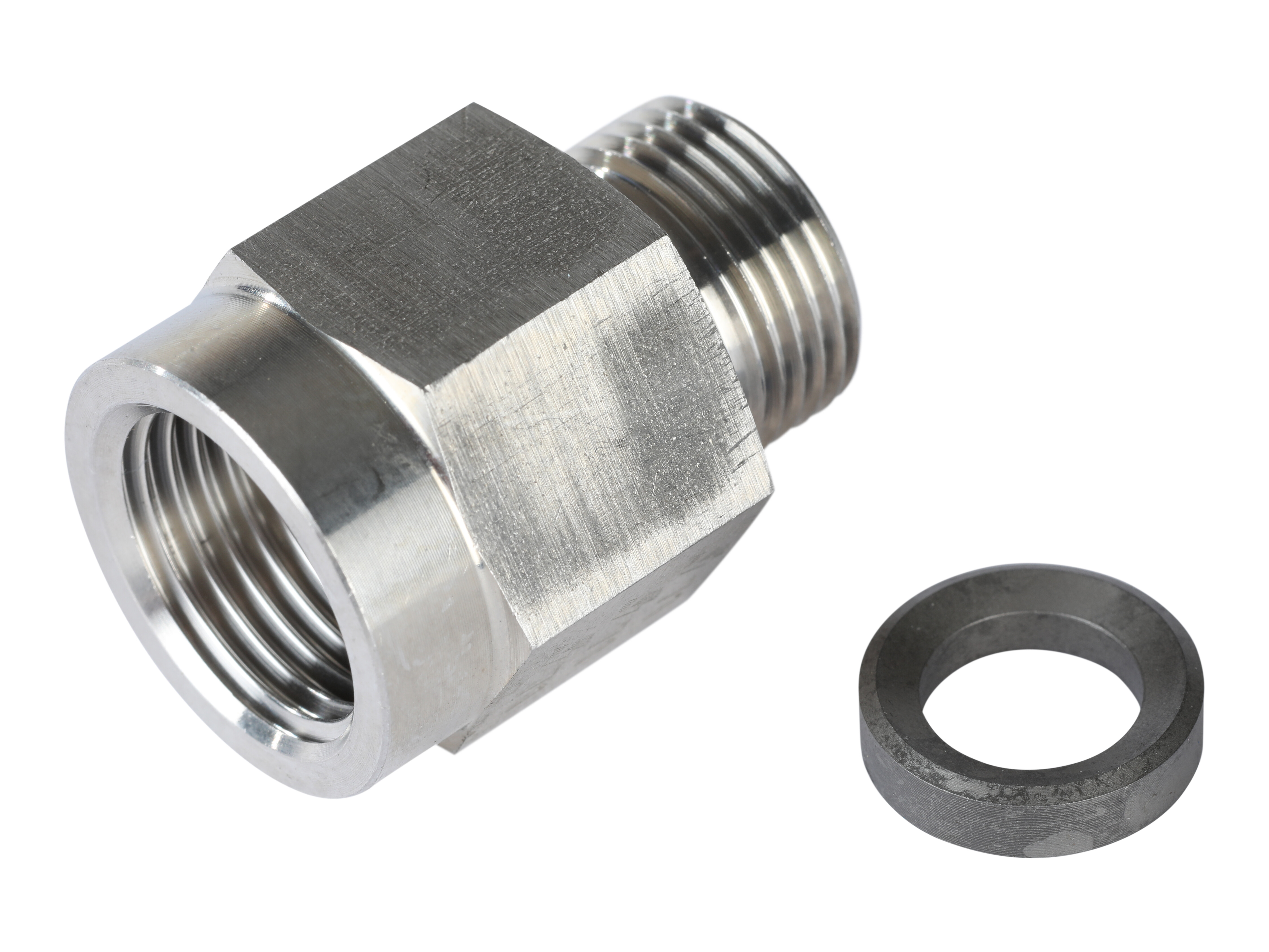

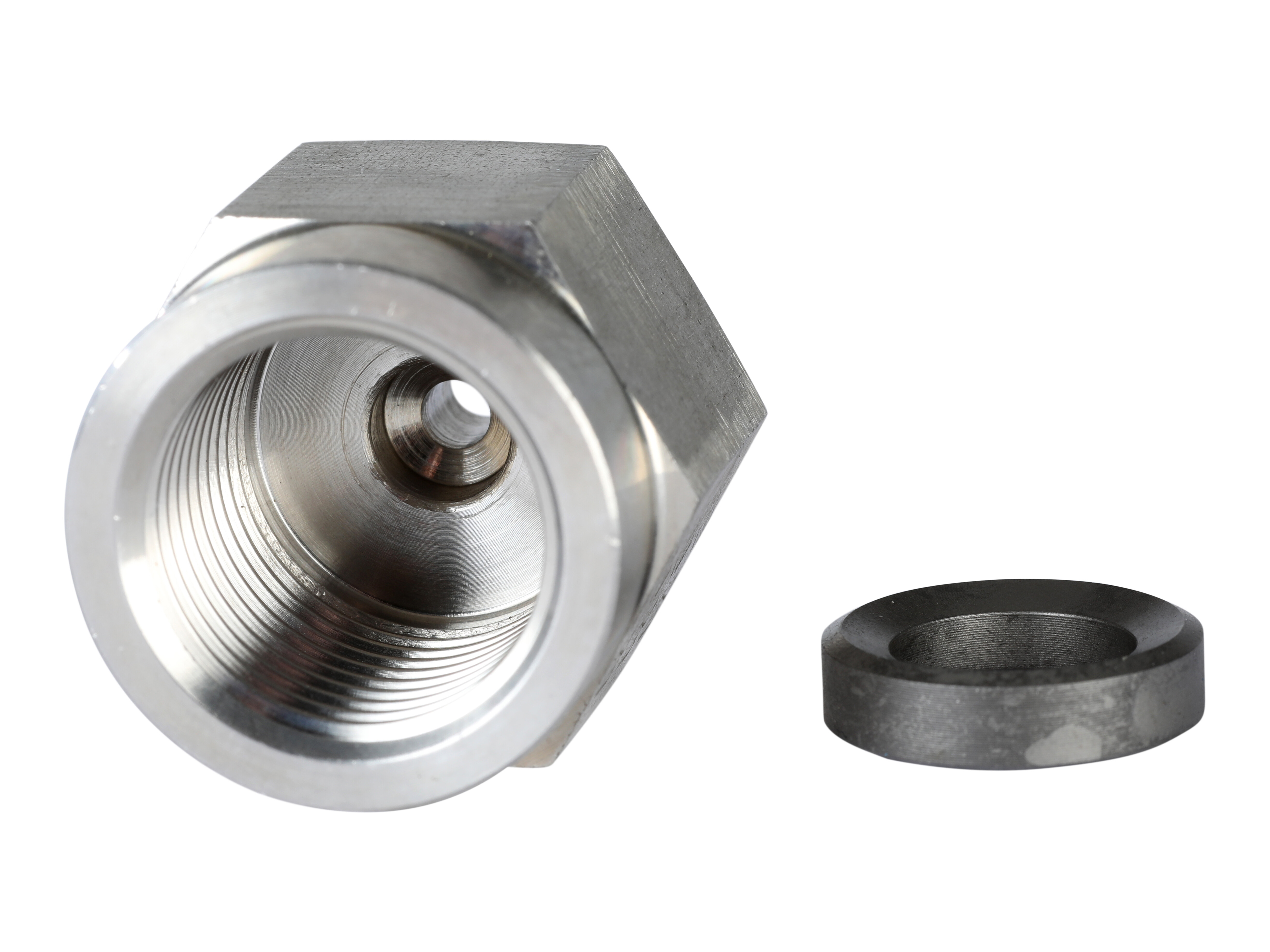

Manometer forskruning - ø6S x 1/2" BSP indv - AISI 316Ti
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Artikelnummer:
O06SX/71
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Angle
0 °
Brand Name
Volz
Diameter pipe
6 mm
L1
46 mm
L2
38 mm
L3
31 mm
L4
20 mm
L5
5 mm
Material
Rustfrit stål
Material quality
1.4571 / AISI316Ti
Model code
XMAV 06 SR 1/2
Pressure max.
630 bar
S1
27 mm
S2
17 mm
Safety factor
4
Series
S
Temperature max.
+400 °C
Temperature min.
-60 °C
Thread T1
G 1/2 BSP
Thread T2
M14x1,5 mm
Thread inner
G 1/2 BSP
Thread inner metric
M14x1,5 MM
Thread outer metric
M14x1,5
d1
6 mm
d2
3,5 mm
Förpackningsstorlek
0 pcs
Streckkod
5704334282334
Bruttovikt
0,13 Kg
Nettovikt
0,13 Kg
Ursprungsland
DEU
Intrastat artikelkod
73072910
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
