Manometer påskruning - ø12S x 1/4" BSP indv-oring-AISI 316TI
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Varenummer:
VO12SDKO14/7
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Diameter rør
12 mm

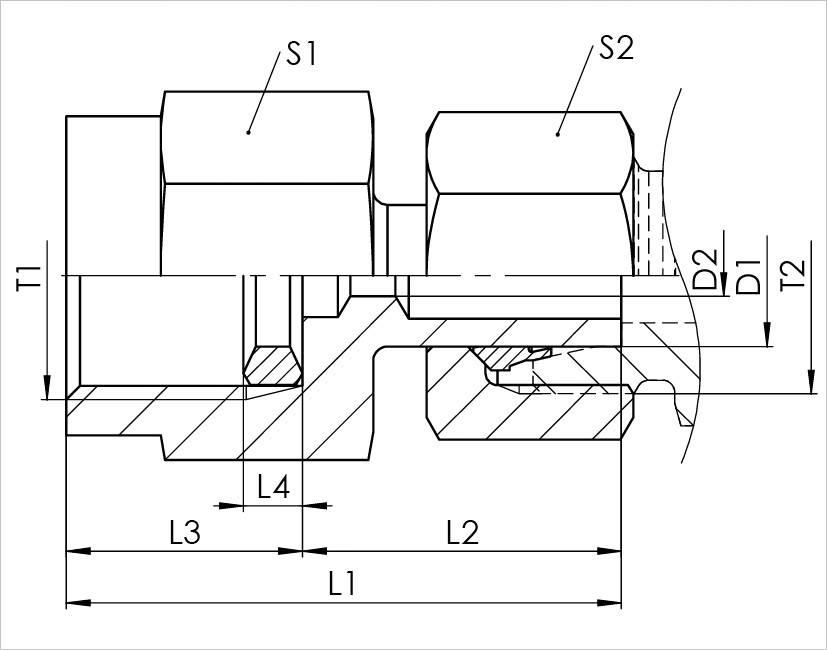

Dimension D1
12 mm
Dimension D2
3.5 mm
Dimension L1
39.5 mm
Dimension L2
25 mm
Dimension L3
14.5 mm
Dimension L4
4.5 mm
Dimension S1
19 mm
Dimension S2
24 mm
Gevind 1
G 1/4 BSP
Gevind T2
M20x1,5 mm
Gevind indvendig
G 1/4 BSP
Gevind indvendig metrisk
M20x1,5
Materiale
Rustfrit stål
Materialekvalitet
1.4571 / AISI316Ti
Model kode
MAEV 12 SR 1/4
Mærke navn
Volz
Pakningsmateriale
FKM/FPM (Viton®)
Serie
S
Sikkerhedsfaktor
4
Temperatur maks.
+200 °C
Temperatur min.
-25 °C
Tryk maks.
630 bar
Vinkel
0 °
Package size
0 pcs
Barcode
5704334233282
Gross weight
0,10 Kg
Net weight
0,10 Kg
Country of origin
DEU
Intrastat code
73072910
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
