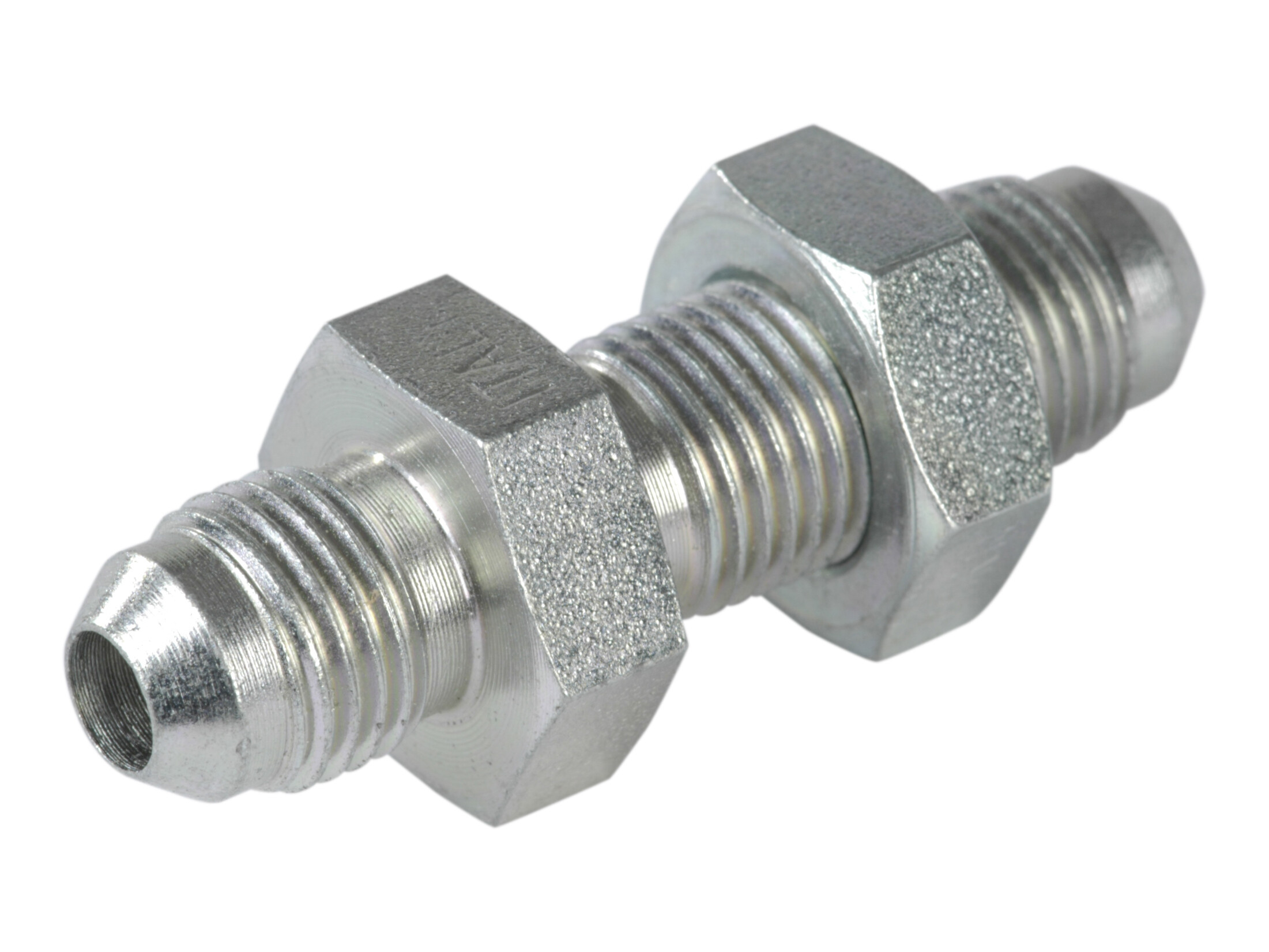

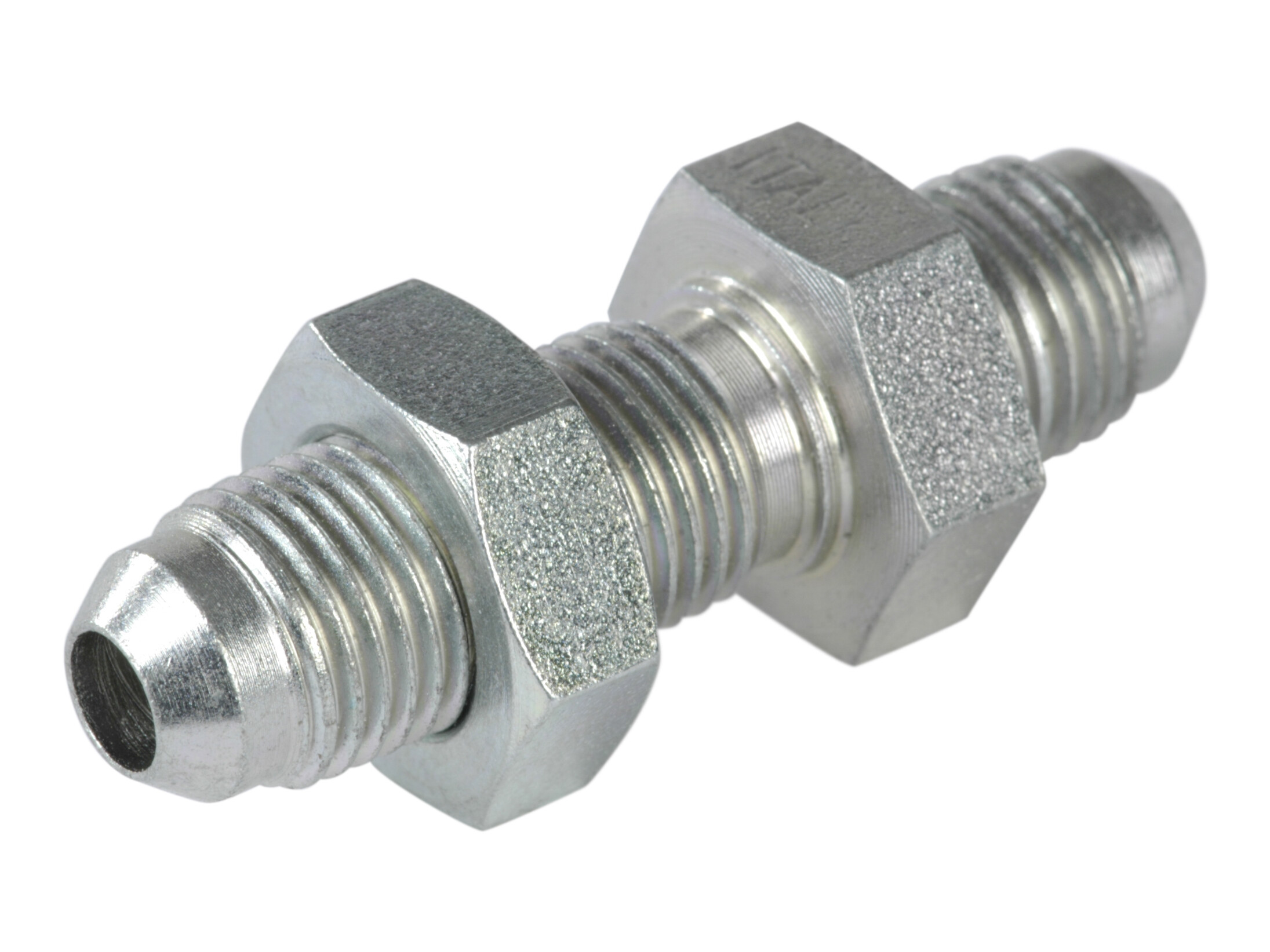

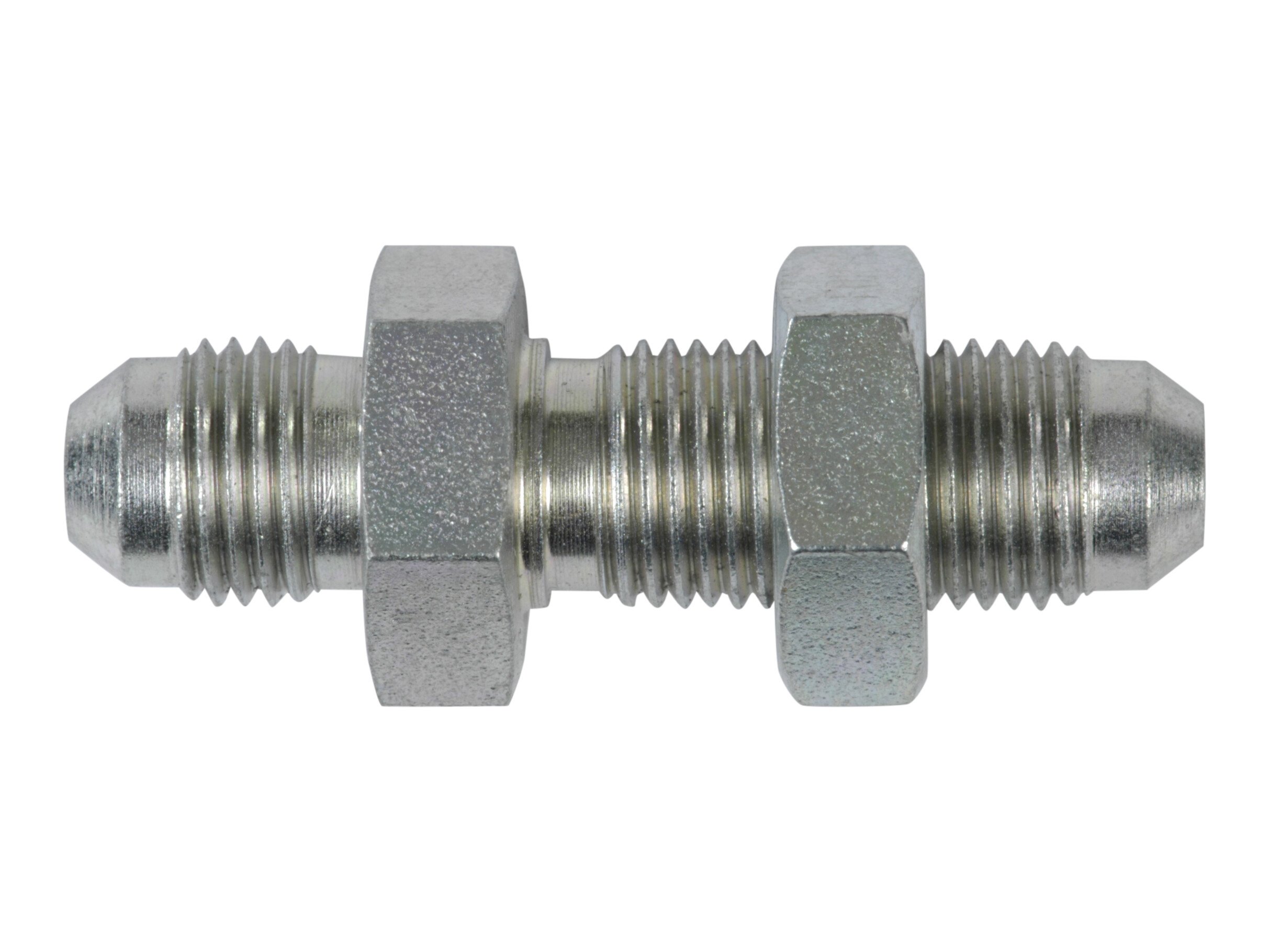

Skotforskruning 1/2-20 JIC udv x 1/2-20 JIC udv
Skotforskruning 1/2-20 JIC udv x 1/2-20 JIC udv
Partnumber:
MUP-08
Package size:
0 pcs
Min. order quantity is:
1 pcs
Diameter rør
8 mm

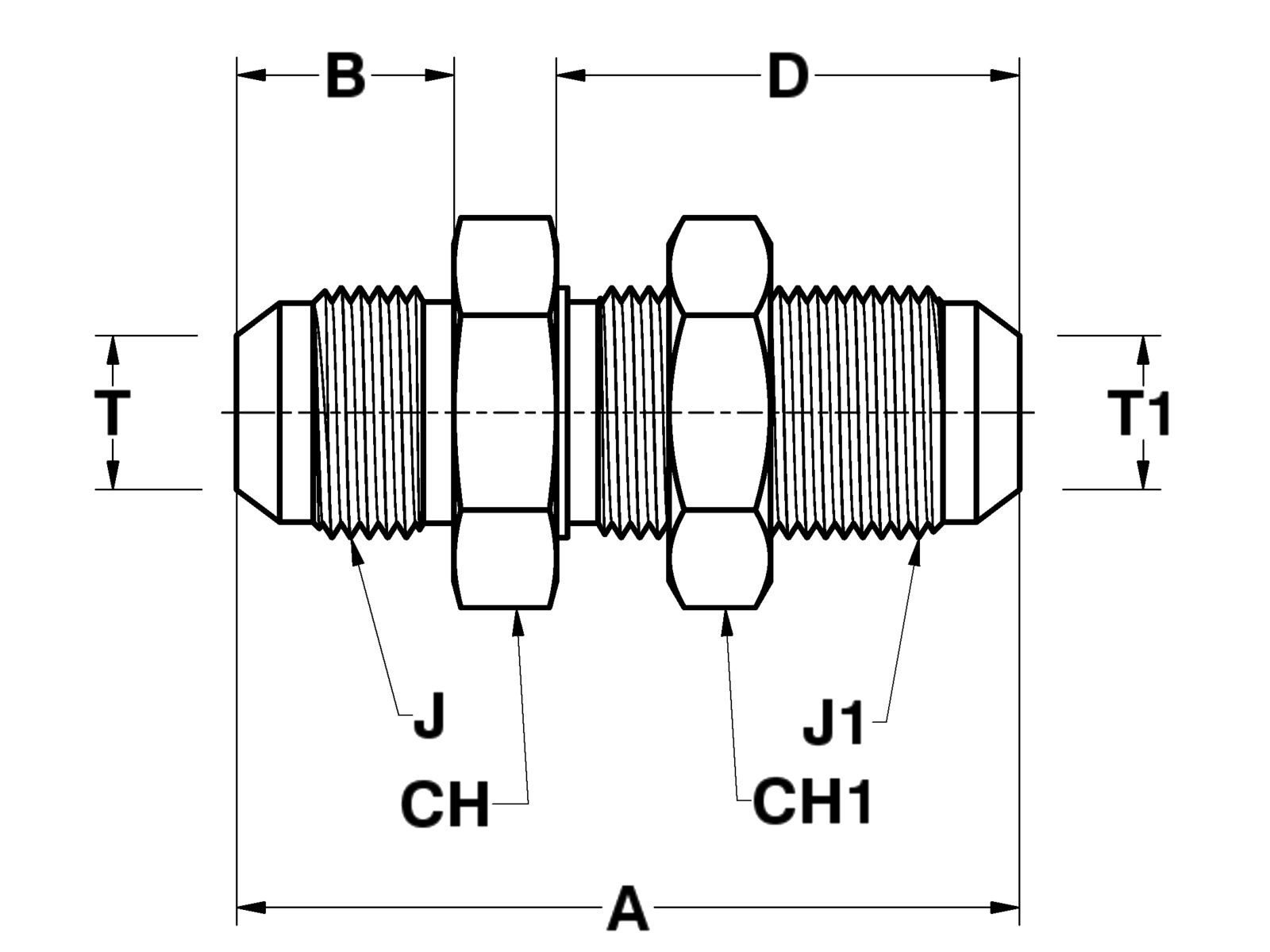

Dimension A
52.5 mm
Dimension B
14 mm
Dimension CH
19 mm
Dimension CH1
19 mm
Dimension D
31.5 mm
Dimension J
1/2-20 JIC
Dimension J1
1/2-20 JIC
Dimension T
8 mm
Dimension T1
8 mm
Gevind udvendig
1/2-20 JIC
Korrosions resistens
1400 hours salt spray DIN EN ISO 9227
Materiale
Stål
Mærke navn
FOR
Overfladebehandling
El-forzinket / hvidkromatiseret
Tryk maks.
416 bar
Vinkel
0 °
Package size
0 pcs
Barcode
5704334235439
Gross weight
0,05 Kg
Net weight
0,05 Kg
Country of origin
ITA
Intrastat code
73071110
Skotforskruning 1/2-20 JIC udv x 1/2-20 JIC udv
