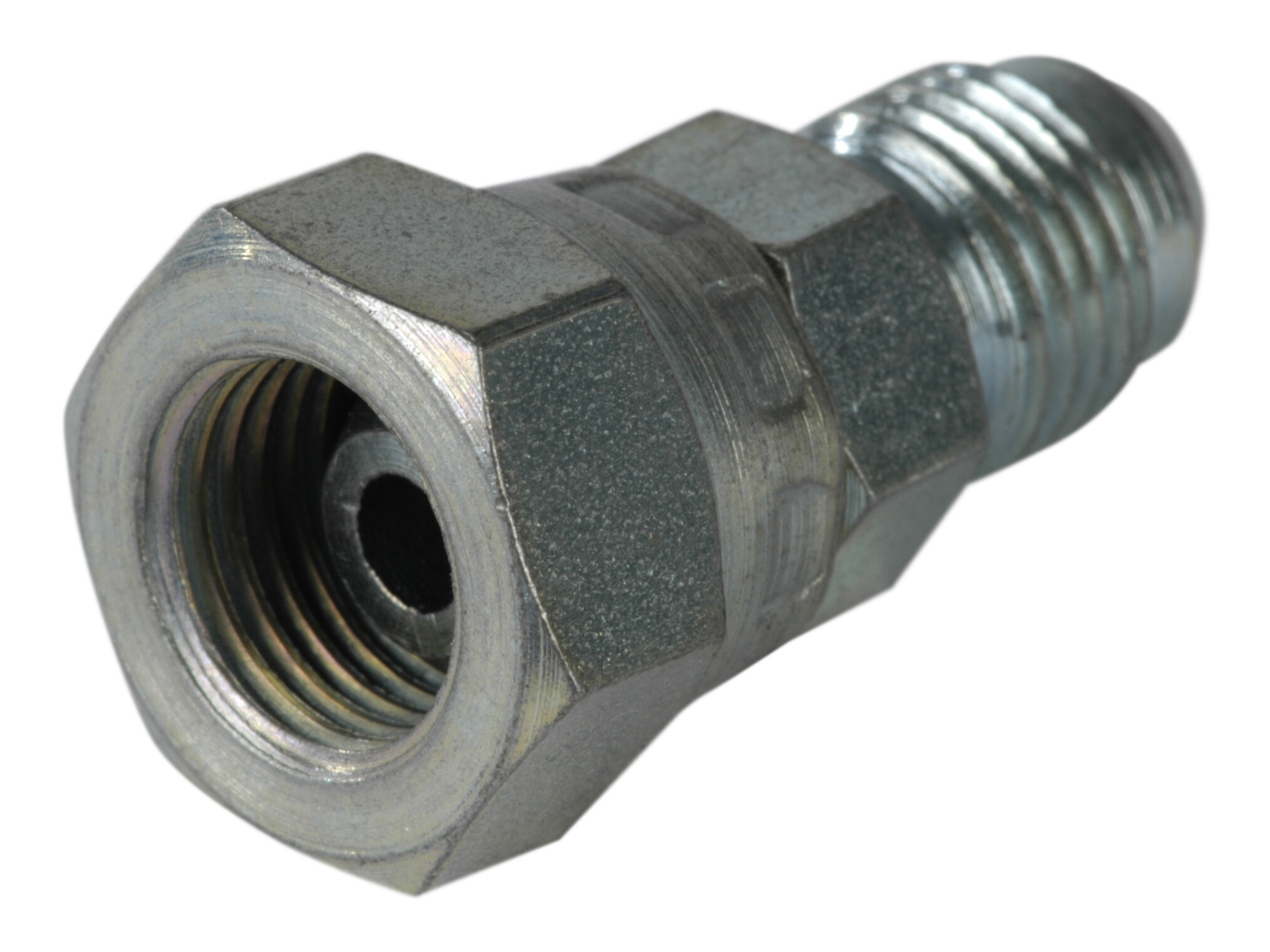

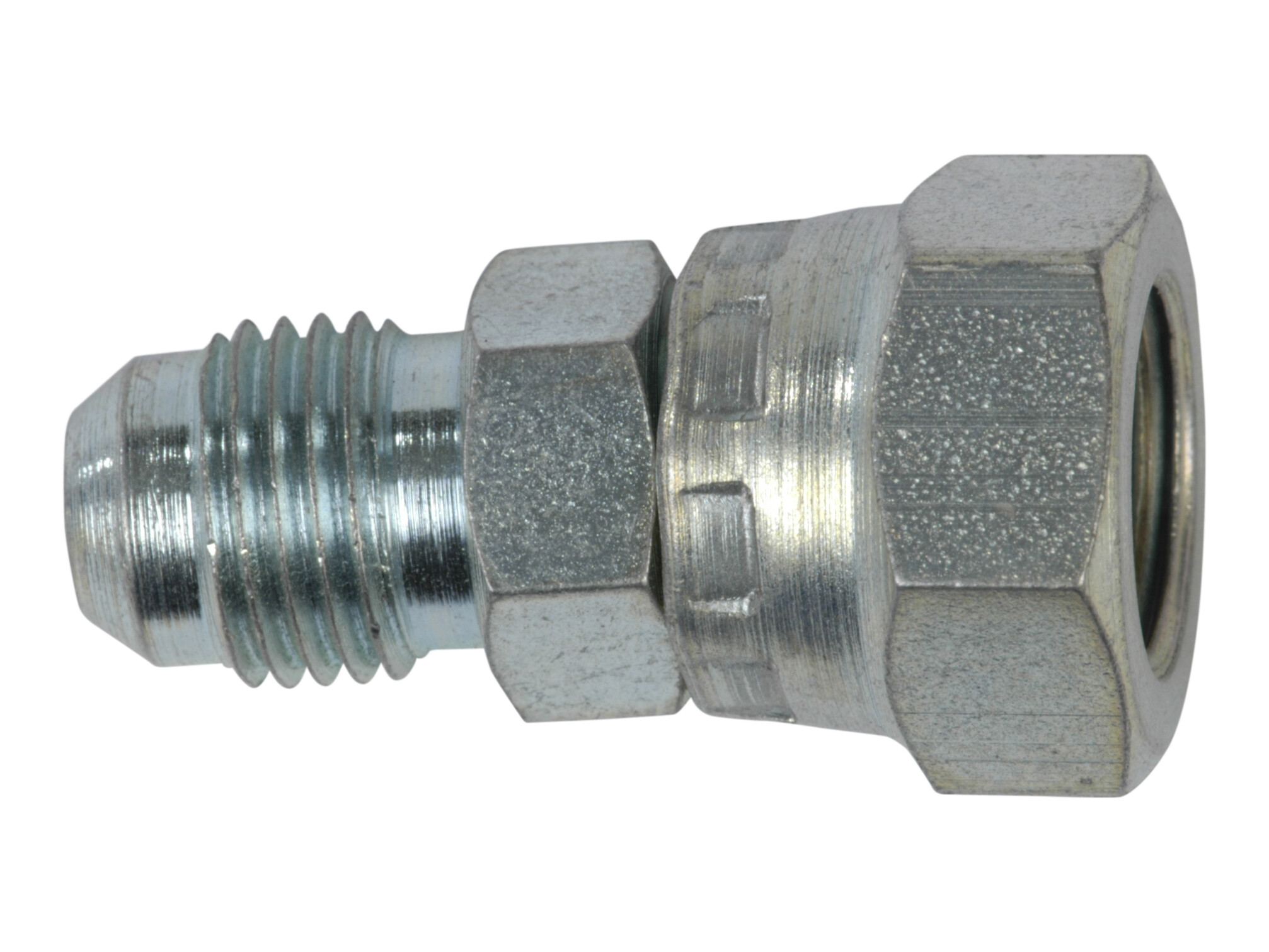

Påskruning 1/2-20 JIC udv x 1/4 BSP indv
Påskruning 1/2-20 JIC udv x 1/4 BSP indv
Partnumber:
MF-08-1/4
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
8 mm
Dimension A
35.5 mm
Dimension B
14 mm
Dimension CH
19 mm
Dimension D
21.5 mm
Dimension F
G 1/4 BSP
Dimension J
1/2-20 JIC
Dimension T
8 mm
Material
Stål
Pressure max.
416 bar
Surface treatment
El-forzinket / hvidkromatiseret
Thread inner
G 1/4 BSP
Thread outer
1/2-20 JIC
Package size
0 pcs
Barcode
5704334274612
Gross weight
0,04 Kg
Net weight
0,04 Kg
Country of origin
ITA
Intrastat code
73071110
Påskruning 1/2-20 JIC udv x 1/4 BSP indv
