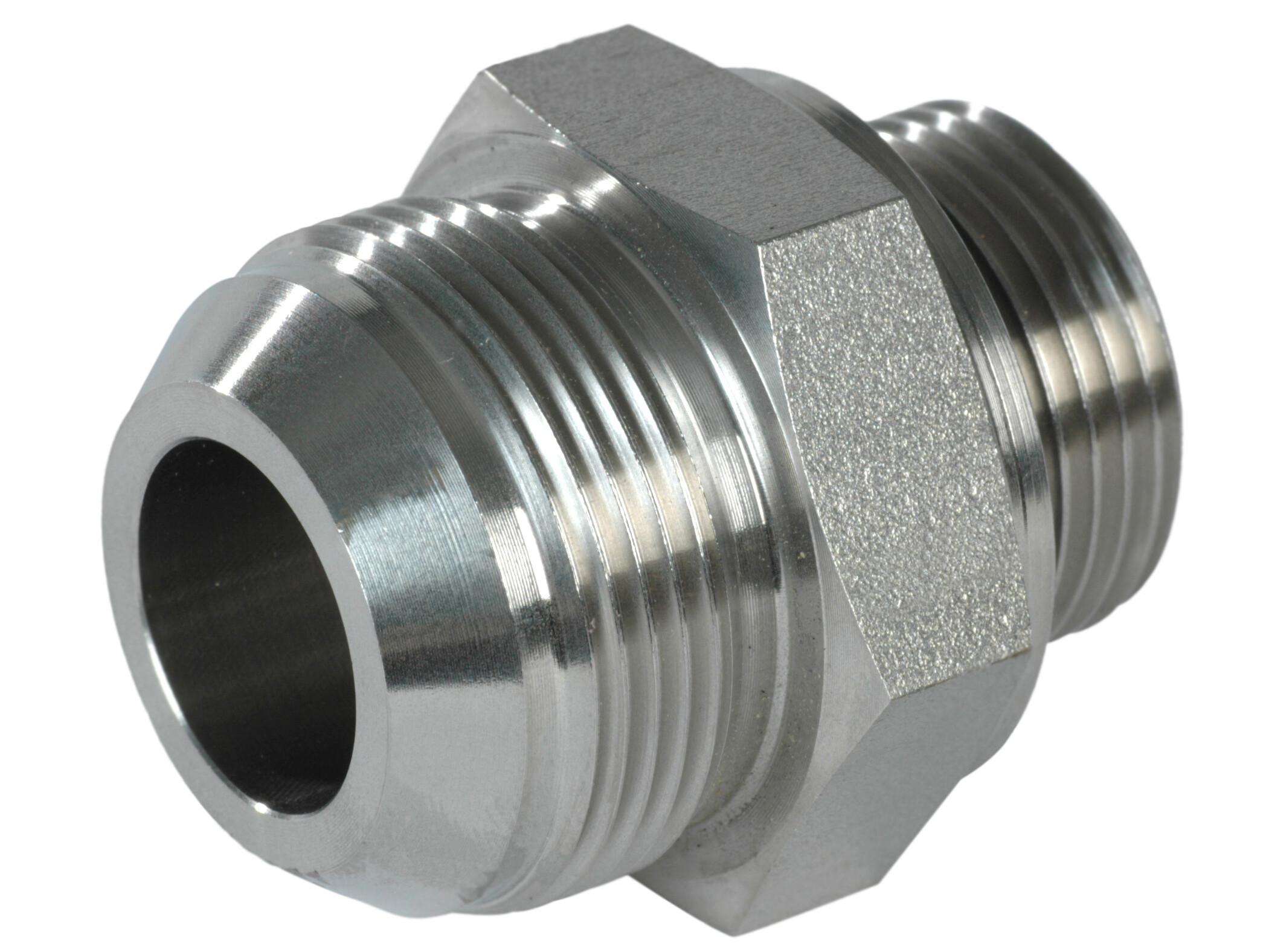

Indskruning 1.1/16-12 JIC udv x 1/2 BSP udv-AISI316
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Varenummer:
M-20-1/2/71
Pakke str.:
0 stk
Min. bestillingsenhed er:
1 stk
C
11 mm
Diameter pipe
20 mm
L
49 mm
Material
Rustfrit stål
Material quality
1.4404 / AISI316L
Pressure max.
600 bar
Sealing material
NBR
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread
G 1/2 BSP
Thread outer
1.1/16-12 JIC
Thread outer
G 1/2 BSP
Package size
0 stk
Barcode
5704295451794
Gross weight
Kg
Net weight
Kg
Country of origin
esp
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
