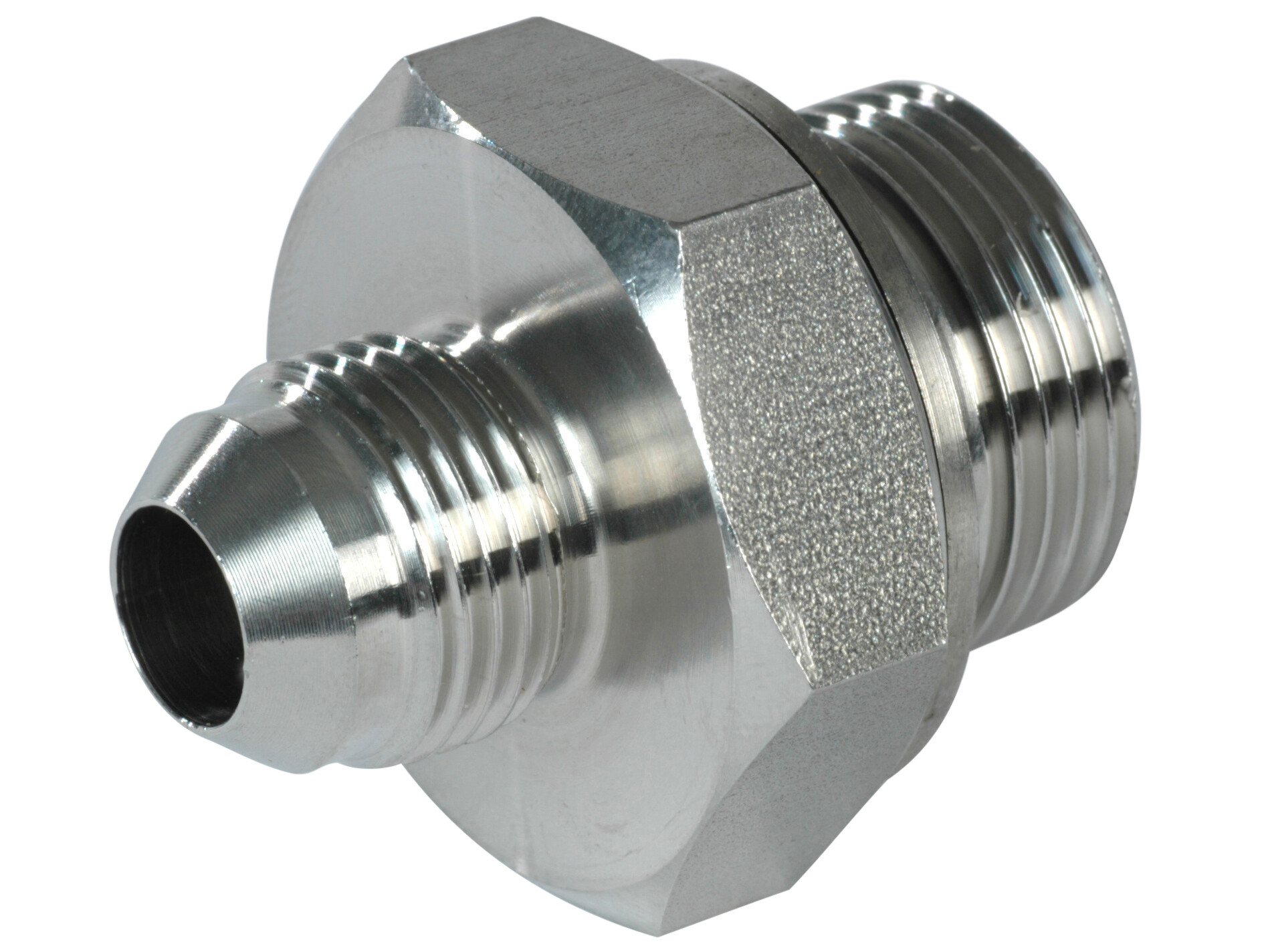

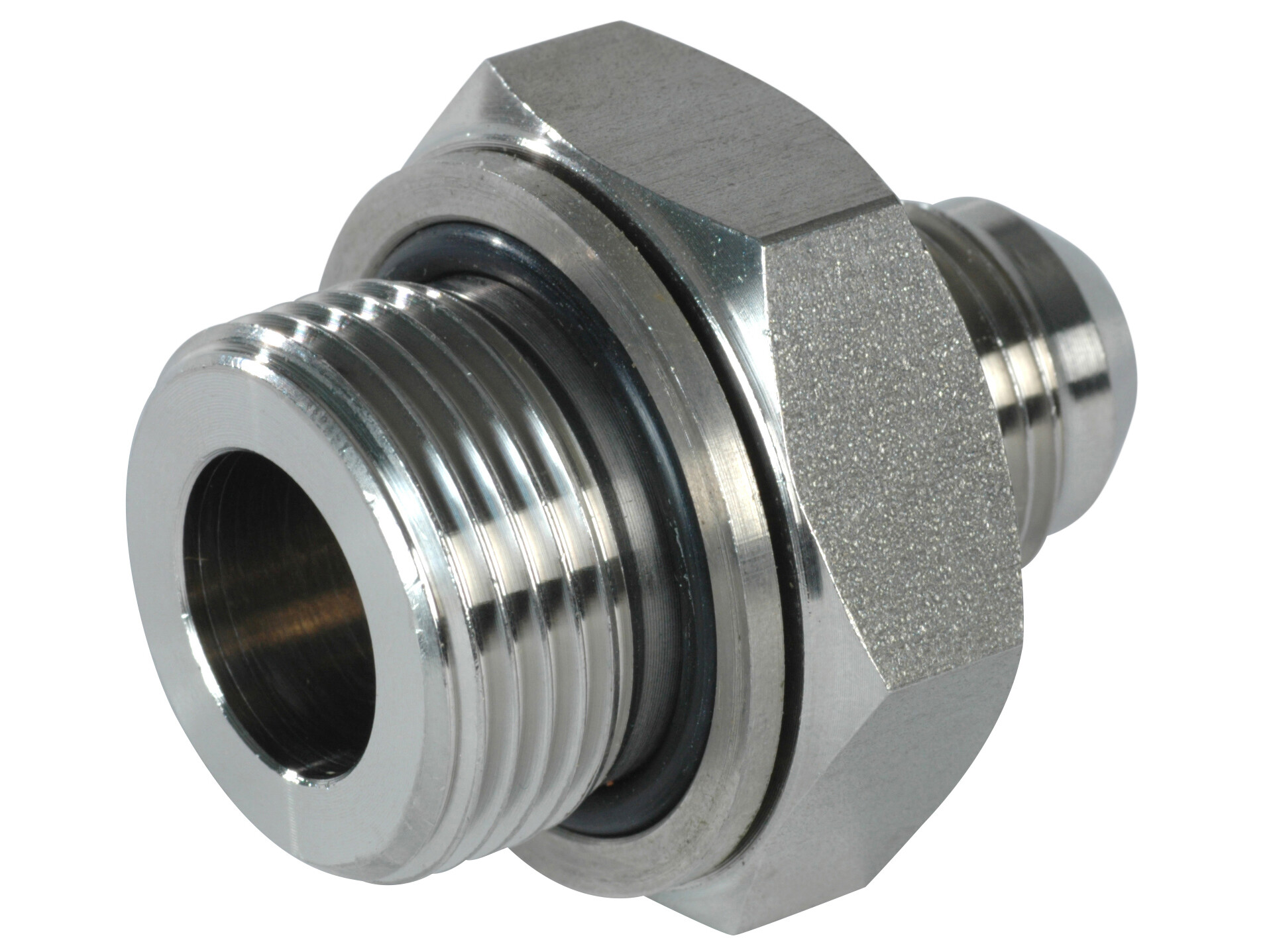

Indskruning 9/16-18 JIC udv x 1/2 BSP udv NW27-AISI316
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
M-10-1/2/71
Package size:
0 stk
Min. order quantity is:
1 stk
Brand Name
Hydraspecma
C
7 mm
Diameter pipe
10 mm
L
38,5 mm
Material
Rustfrit stål
Material quality
1.4404 / AISI316L
Pressure max.
700 bar
Sealing material
NBR
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread
G 1/2 BSP
Thread outer
9/16-18 JIC
Thread outer
G 1/2 BSP
Package size
0 stk
Barcode
5704295451718
Gross weight
0,08 Kg
Net weight
0,08 Kg
Country of origin
ESP
Intrastat code
73072910
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
