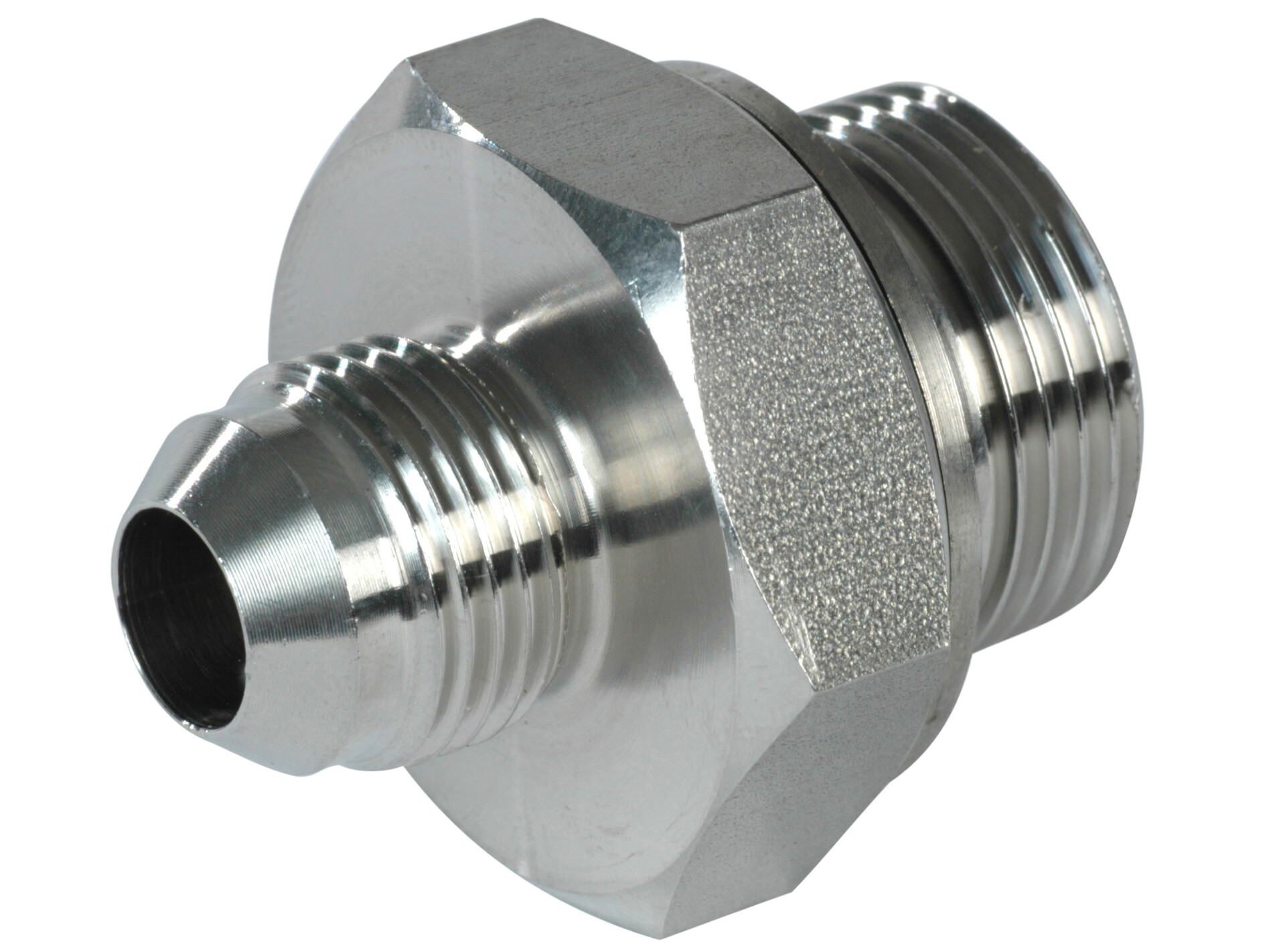

Indskruning 3/4-16 JIC udv x 1/2 BSP udv NW30-AISI316
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
M-12-1/2/71
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
Hydraspecma
C
9,5 mm
Diameter pipe
12 mm
L
39,5 mm
Material
Rustfrit stål
Material quality
1.4404 / AISI316L
Pressure max.
700 bar
Sealing material
NBR
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread
G 1/2 BSP
Thread outer
3/4-16 JIC
Thread outer
G 1/2 BSP
Package size
0 pcs
Barcode
5704295451749
Gross weight
0,09 Kg
Net weight
0,09 Kg
Country of origin
ESP
Intrastat code
73072910
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
