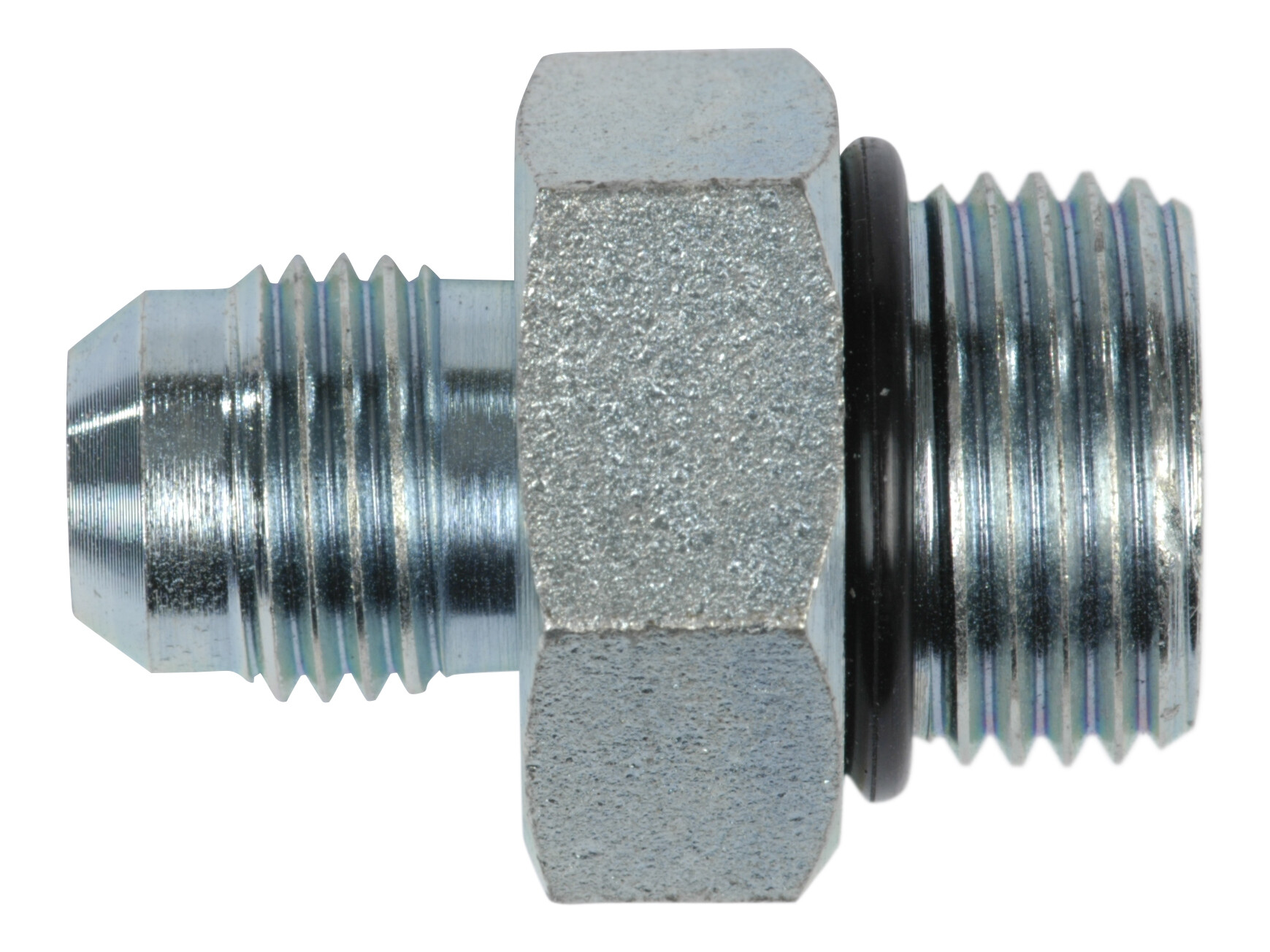

Indskruning 9/16-18 JIC udv x 3/4-16 UNF udv
Indskruning 9/16-18 JIC udv x 3/4-16 UNF udv
Partnumber:
M-10-3/4
Package size:
0 pcs
Min. order quantity is:
1 pcs
A
35 mm
Angle
0 °
B
14 mm
Brand Name
FOR
CH
22 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
11 mm
Diameter pipe
10 mm
Dimension F
3/4-16 UNF
F
3/4-16 UNF
J
9/16-18 JIC
Material
Stål
Model code
A102012/1019
Pressure max.
350 bar
Sealing material
NBR
Standard ISO
ISO 11926
Surface treatment
El-forzinket / hvidkromatiseret
T
10 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
9/16-18 JIC
Thread outer
3/4-16 UNF
Package size
0 pcs
Barcode
5704334335269
Gross weight
0,06 Kg
Net weight
0,06 Kg
Country of origin
ITA
Intrastat code
73071110
Indskruning 9/16-18 JIC udv x 3/4-16 UNF udv
