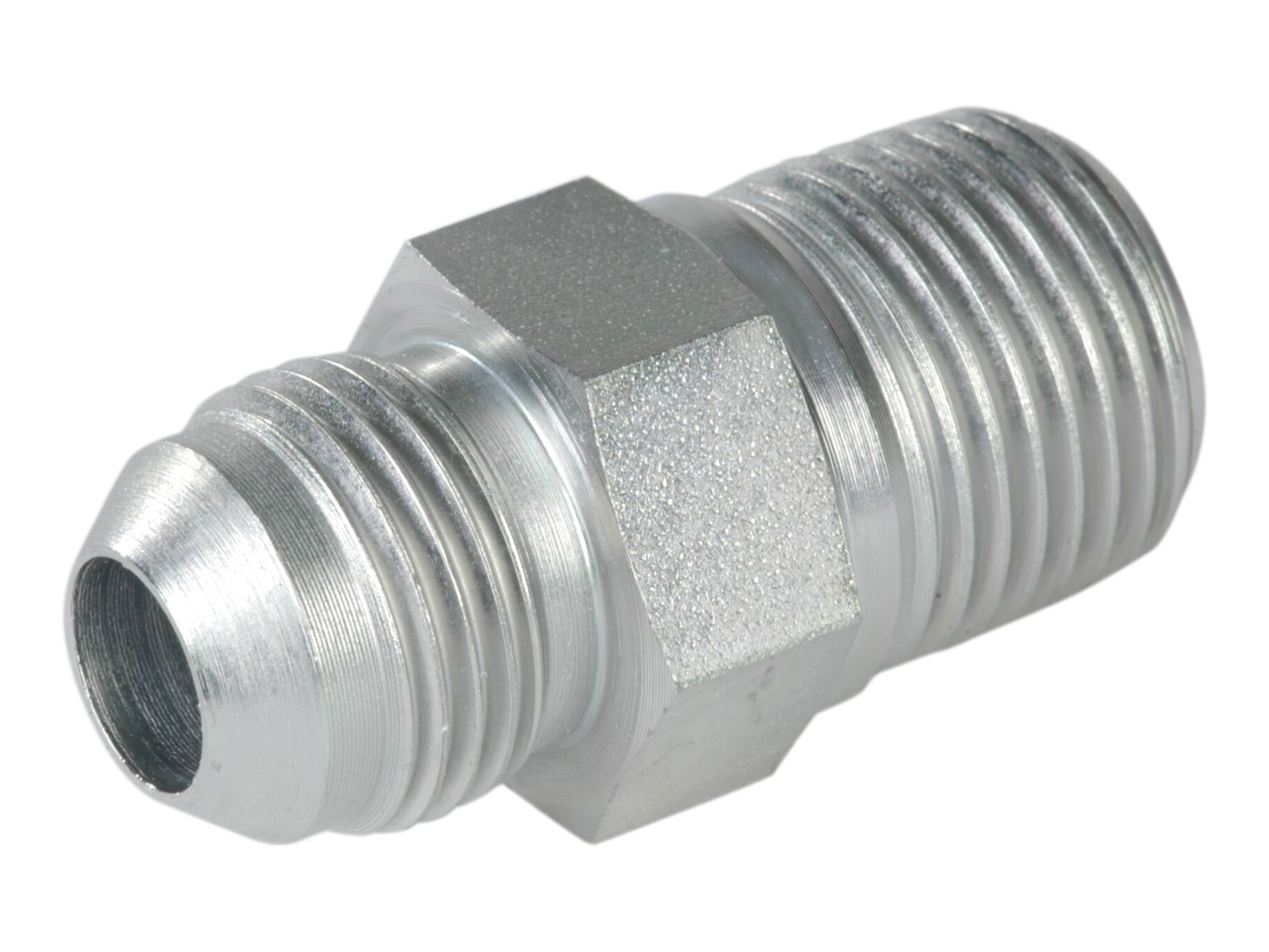

Indskruning 3/4-16 JIC udv x 1/2 NPT udv
Indskruning 3/4-16 JIC udv x 1/2 NPT udv
Varenummer:
M1-12-1/2
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Angle
0 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
12 mm
Dimension A
45.5 mm
Dimension B
17 mm
Dimension C
19 mm
Dimension CH
22 mm
Dimension F
1/2 NPT
Dimension J
3/4-16 JIC
Dimension T
12 mm
Material
Stål
Pressure max.
350 bar
Surface treatment
El-forzinket / hvidkromatiseret
Thread outer
1/2 NPT
Thread outer
3/4-16 JIC
Package size
0 pcs
Barcode
5704295979809
Gross weight
0,06 Kg
Net weight
0,06 Kg
Country of origin
ITA
Intrastat code
73071110
Indskruning 3/4-16 JIC udv x 1/2 NPT udv
Note: Opening 3D files requires a program that supports the file format
