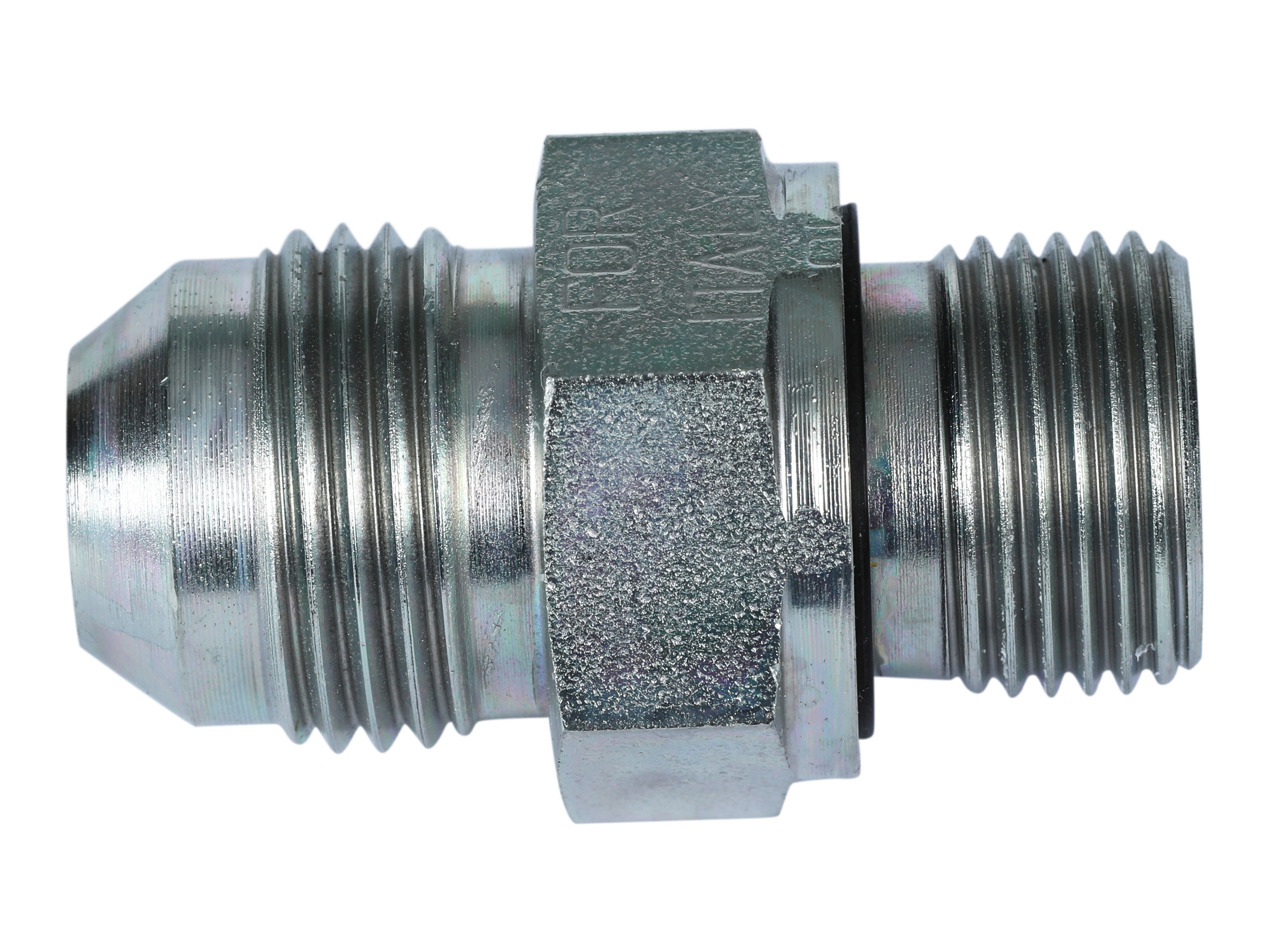

Adaptor 3/4-16 JIC male x 3/8 BSP male with WD seal
Adaptor 3/4-16 JIC male x 3/8 BSP male with WD seal
Partnumber:
M-12-3/8WD
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
12 mm
Dimension A
39.5 mm
Dimension B
17 mm
Dimension CH
22 mm
Dimension D
12 mm
Dimension F
G 3/8 BSP
Dimension J
3/4-16 JIC
Dimension T
12 mm
Material
Steel
Pressure max.
350 bar
Surface treatment
Electro zinc plated
Thread
G 3/8 BSP
Thread outer
3/4-16 JIC
Thread outer
G 3/8 BSP
Förpackningsstorlek
0 pcs
Streckkod
5704334629047
Bruttovikt
0,06 Kg
Nettovikt
0,06 Kg
Ursprungsland
ITA
Intrastat artikelkod
73071110
Adaptor 3/4-16 JIC male x 3/8 BSP male with WD seal
Obs: För att öppna 3D-filer krävs ett program som stöder filformatet
