2" Kobling - 2" SAE6000 fuldflange - 90° - 32GSM32FLHCFM90S
2" Kobling - 2" SAE6000 fuldflange - 90° - 32GSM32FLHCFM90S
Varenummer:
GSM3232PHF90
Pakke str.:
10 pcs
Min. bestillingsenhed er:
1 pcs

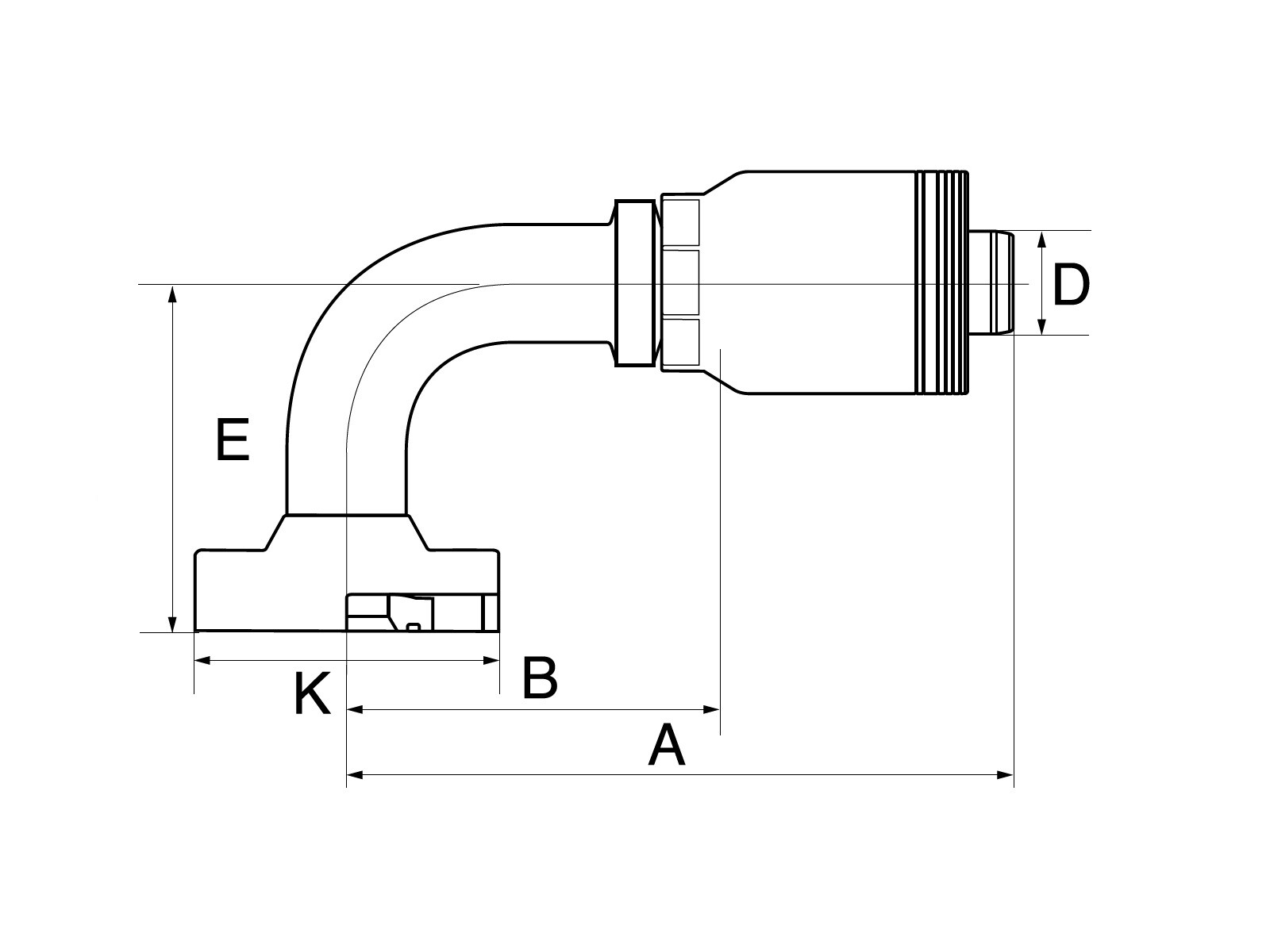

A
264 mm
Angle
90 °
B
150 mm
Brand Name
Gates
Corrosion resistance
500 hours salt spray ASTM B-117
D
2 BSP
Diameter flange
79.5 mm
E
120 mm
Flange
2 "
Flange SAE/DIN
6000 PSI
Hose coupling type
Med fast kappe
Hose size
2 "
K
79,5 mm
Material
Stål
Model code
32GSM32FLHCFM90S
O-ring
56,75X3,53 mm
Pressure max.
420 bar
REACH compliant
Ja
RoHs compliant
Ja
Shore
90
Standard ISO
ISO 6162-2
Standard SAE
SAE J518 Code 62
Surface treatment
TuffCoat™
Torque tightening
271 - 294 Nm
Förpackningsstorlek
10 pcs
Streckkod
5704334729938
Bruttovikt
6,84 Kg
Nettovikt
6,84 Kg
Ursprungsland
USA
Intrastat artikelkod
73269098
