2" Kobling - 2" SAE3000 flange

Tilslutningsbeskrivelse: SAE-flangetilslutningsslange, bruges sammen med flangebeslag.

Artikelnummer:

GSM3232PA

Förpackningsstorlek:

0 pcs

Minsta beställningskvantitet:

1 pcs

Tillbehör (4)

O-ring 90S

Partnumber: 56.75X3.53S

Split flange 2" SAE3000 - complete w. M12

Partnumber: AFS306M

Afdækning 2" SAE3000 flange

Partnumber: PFS332

Profil ring t.2" SAE-flange 55x63,4x2,85

Partnumber: WD2PH

Specifications
Dimensions and shipping

2514 mm

1374 mm

2 BSP

Diameter flange

71.4 mm

Flange

2 "

Flange SAE/DIN

3000 PSI

714 mm

Korrosions resistens

500 hours salt spray ASTM B-117

Materiale

Stål

Model kode

32GSM-32FL

Mærke navn

Gates

O-ring

56,75X3,53 mm

Overfladebehandling

TuffCoat™

REACH compliant

RoHs compliant

Shore

Slangekoblingstype

Med fast kappe

Slangestørrelse

2 "

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Tilspændingsmoment

75 - 90 Nm

Tryk maks.

210 bar

Vinkel

0 °

Package size

0 pcs

Barcode

5704334379683

Gross weight

1,90 Kg

Net weight

1,90 Kg

Country of origin

TUR

Intrastat code

73269098

Product information

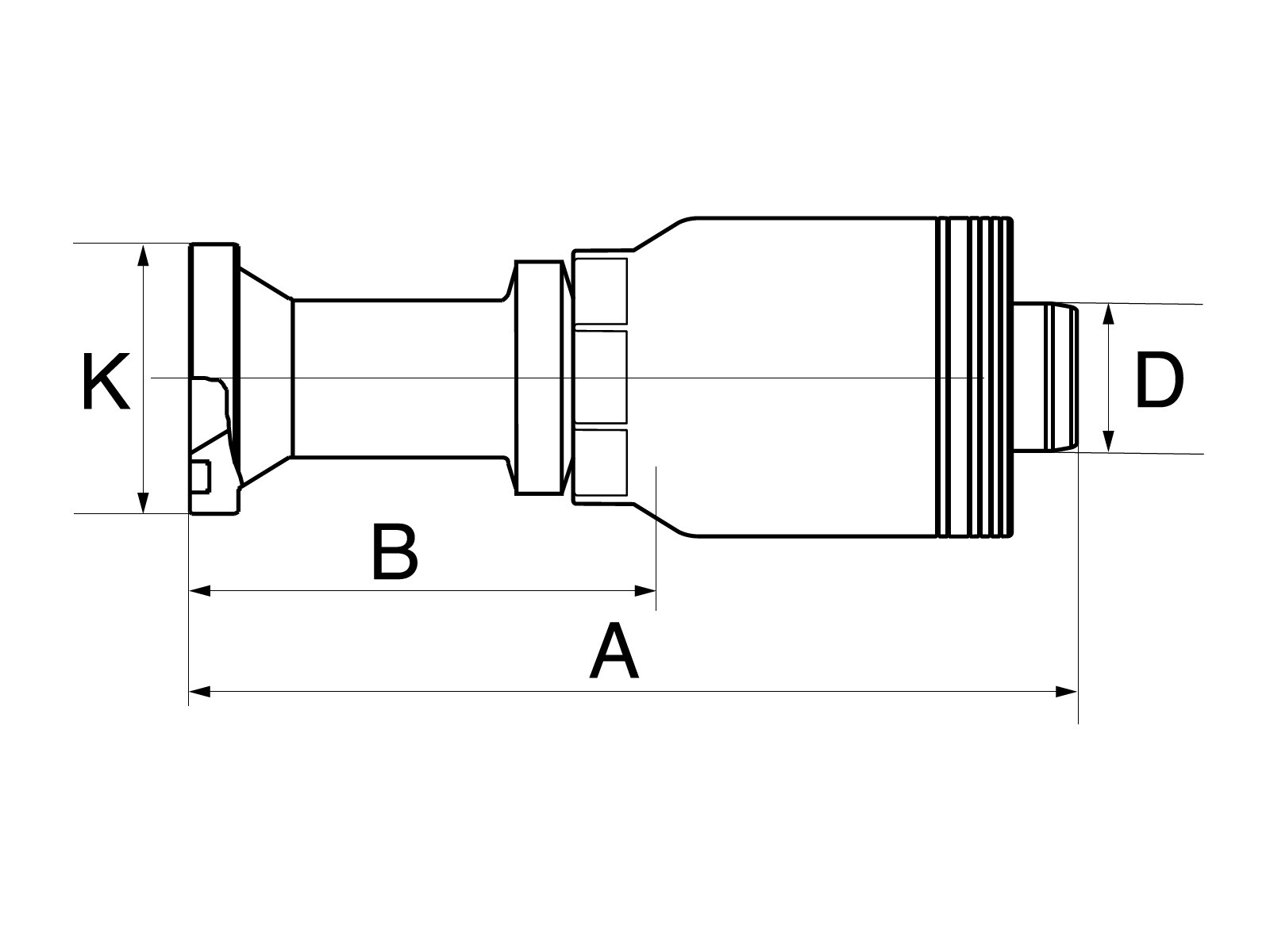

Measure sketch

Tilslutningsbeskrivelse: SAE-flangetilslutningsslange, bruges sammen med flangebeslag.
