1.1/2" Kobling - (38S) M52x2 oml. - 90°

Tilslutning: Indvendigt MM-gevind med 24° udadvendt konus og o-ring.

Pakning/tætningsflade: O-ring (gummi) mod konus (metal).

Partnumber:

GSM2438RO529

Package size:

0 pcs

Min. order quantity is:

1 pcs

Accessories (1)

Male protection plug, M52x2

Partnumber: PLUG18M

Specifications
Dimensions and shipping

222,6 mm

Angle

90 °

127,6 mm

Brand Name

Gates

Corrosion resistance

500 hours salt spray ASTM B-117

1.1/2"

40 mm

Diameter pipe

38 mm

92 mm

60 mm

Hose coupling type

Med fast kappe

Hose size

1.1/2 "

Material

Stål

Model code

24GSM-38FDHORX90

Pressure max.

420 bar

REACH compliant

RoHs compliant

Sealing material

NBR

Series

Surface treatment

TuffCoat™

Temperature max.

+100 °C

Temperature min.

-35 °C

Torque tightening

290 - 310 Nm

Package size

0 pcs

Barcode

5704334380139

Gross weight

1,00 Kg

Net weight

1,00 Kg

Country of origin

CZE

Intrastat code

73269098

Product information

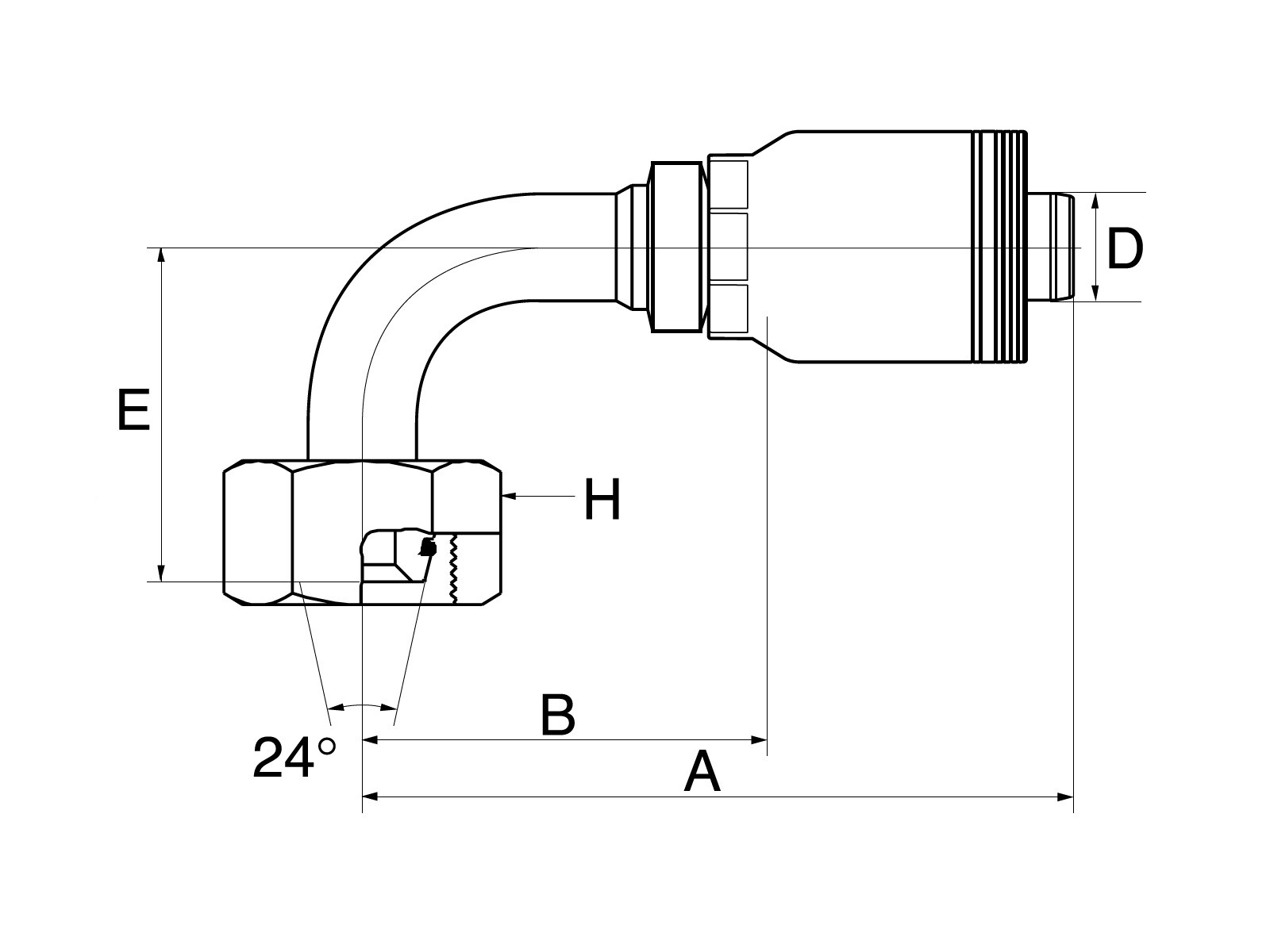

Measure sketch

Tilslutning: Indvendigt MM-gevind med 24° udadvendt konus og o-ring.

Pakning/tætningsflade: O-ring (gummi) mod konus (metal).
