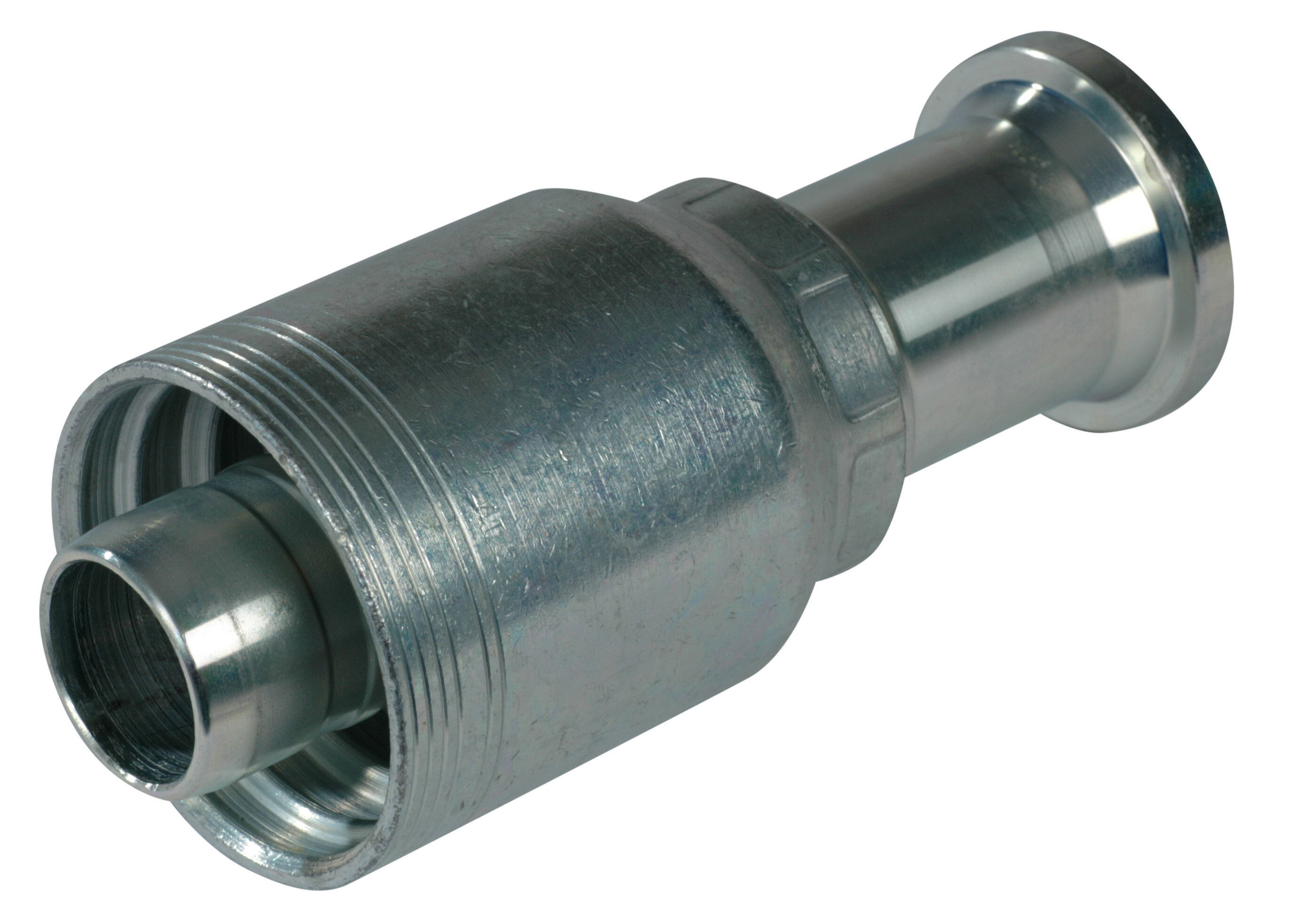

1.1/2" Kobling - 1.1/2" SAE3000 flange

1.1/2" Kobling - 1.1/2" SAE3000 flange

1.1/2" Kobling - 1.1/2" SAE3000 flange

1.1/2" Kobling - 1.1/2" SAE3000 flange

Anvendes i forbindelse med halv-flanger

Varenummer:

GSM2424PA

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Specifikationer
Dimensioner och frakt

Diameter flange

60.3 mm

Flange

1.1/2 "

Flange SAE/DIN

3000 PSI

Korrosions resistens

500 hours salt spray ASTM B-117

Materiale

Stål

Model kode

24GSM-24FL

Mærke navn

Gates

O-ring

47,22X3,53 mm

Overfladebehandling

TuffCoat™

REACH compliant

Ja

RoHs compliant

Ja

Shore

90

Slangekoblingstype

Med fast kappe

Slangestørrelse

1.1/2 "

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Tilspændingsmoment

62 - 79 Nm

Tryk maks.

210 bar

Vinkel

0 °

Förpackningsstorlek

0 pcs

Streckkod

5704334379676

Bruttovikt

1,64 Kg

Nettovikt

1,64 Kg

Ursprungsland

USA

Intrastat artikelkod

73269098

Produktinformation
Måttskiss

Anvendes i forbindelse med halv-flanger

1.1/2" Kobling - 1.1/2" SAE3000 flange
