GSM2424FF - 1.1/2" Kobling - 2"-12 ORFS oml.

Stikbeskrivelse: Indvendigt gevind ORFS-slangetilslutning med flad tætningsflade.

Tætning: O-ring mod metal.

Partnumber:

GSM2424FF

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Dimension A

1644 mm

Dimension B

694 mm

Dimension D

1.1/2 "

Dimension H1

60 mm

Dimension H2

55 mm

Gevind

2-12 ORFS

Korrosions resistens

500 hours salt spray ASTM B-117

Materiale

Stål

Overfladebehandling

TuffCoat™

REACH compliant

RoHs compliant

Slangekoblingstype

Med fast kappe

Slangestørrelse

1.1/2 "

Tilspændingsmoment

200 - 245 Nm

Tryk maks.

280 bar

Vinkel

0 °

Package size

0 pcs

Barcode

5704334379645

Gross weight

1,03 Kg

Net weight

1,03 Kg

Country of origin

TUR

Intrastat code

73269098

Product information

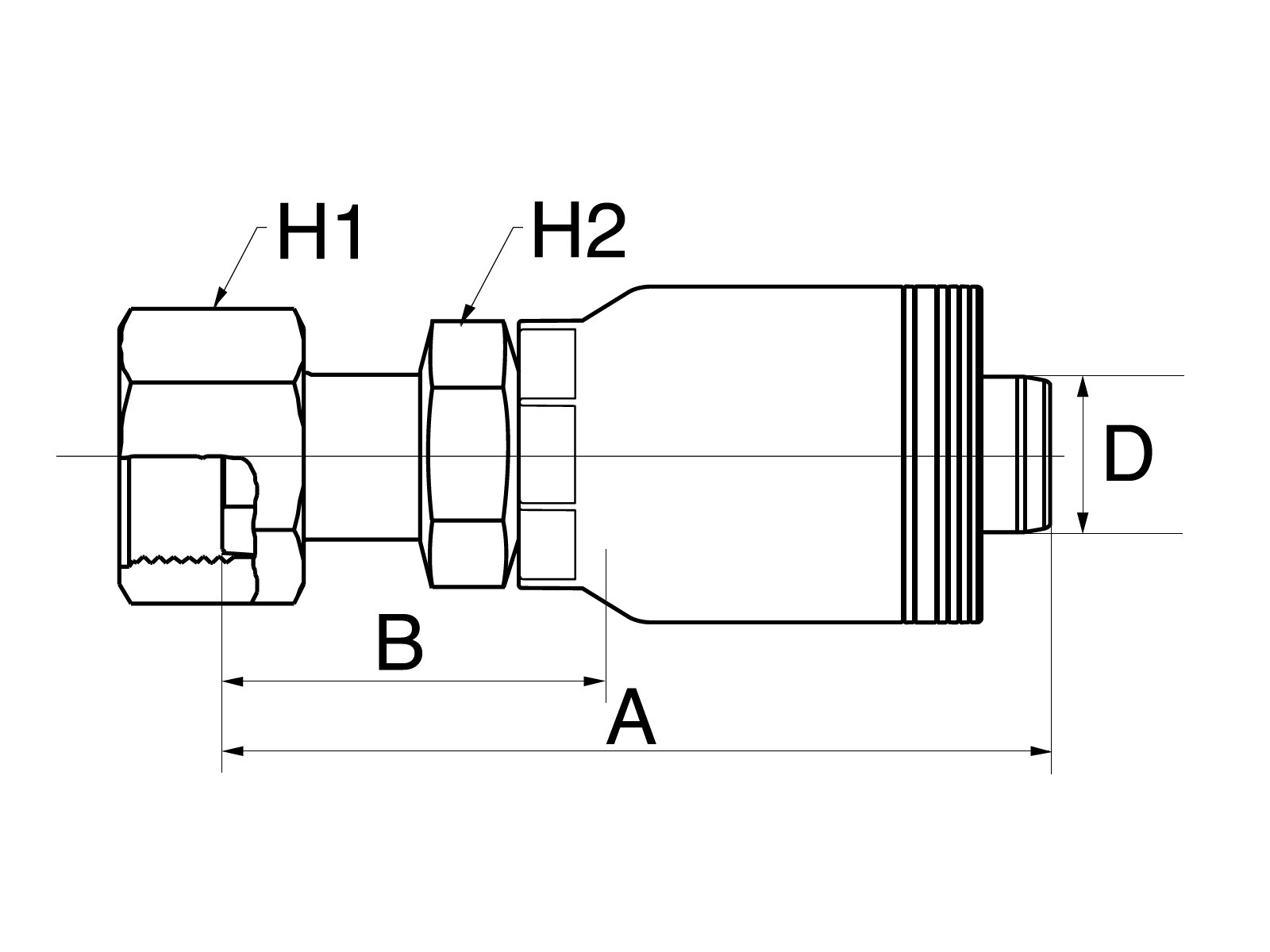

Measure sketch

Stikbeskrivelse: Indvendigt gevind ORFS-slangetilslutning med flad tætningsflade.

Tætning: O-ring mod metal.
