FEGED08SR38WD - Indskruning - ø8S indv x 3/8" BSP - o-ringstætning

Indskruning - ø8S indv x 3/8" BSP - o-ringstætning

Varenummer:

FEGED08SR38WD

Pakke str.:

1 pcs

Min. bestillingsenhed er:

1 pcs

Specifications
Dimensions and shipping

Angle

0 °

Brand Name

Stauff

Corrosion resistance

1200 hours salt spray DIN EN ISO 9227

Diameter pipe

8 mm

Dimension D1

8 mm

Dimension D2

4 mm

Dimension L1

32 mm

Dimension S1

22 mm

Dimension S2

19 mm

Dimension T

G 3/8 BSP

Dimension i

12 mm

Material

Stål

Model code

VADKO 8-S/R3/8"/WD/ZN

Pressure max.

800 bar

REACH compliant

RoHs compliant

Safety factor

Sealing material

NBR

Series

Surface treatment

Zink-Nikkel belagt

Temperature max.

+100 °C

Temperature min.

-35 °C

Thread T

G 3/8 BSP

Thread inner metric

M16x1,5 MM

Thread outer

G 3/8 BSP

Torque tightening

80 Nm

Package size

1 pcs

Barcode

5704334901464

Gross weight

Net weight

0,065 Kg

Country of origin

deu

Intrastat code

73071110

Product information

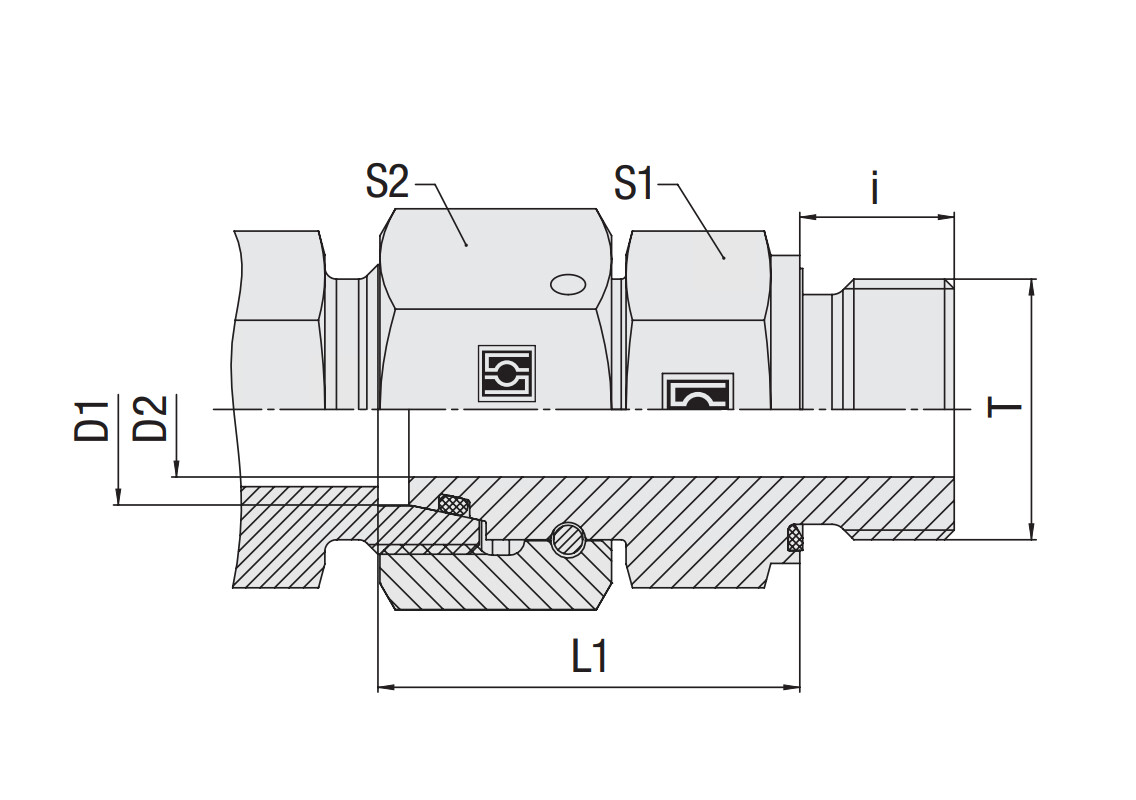

Measure sketch

Indskruning - ø8S indv x 3/8" BSP - o-ringstætning
