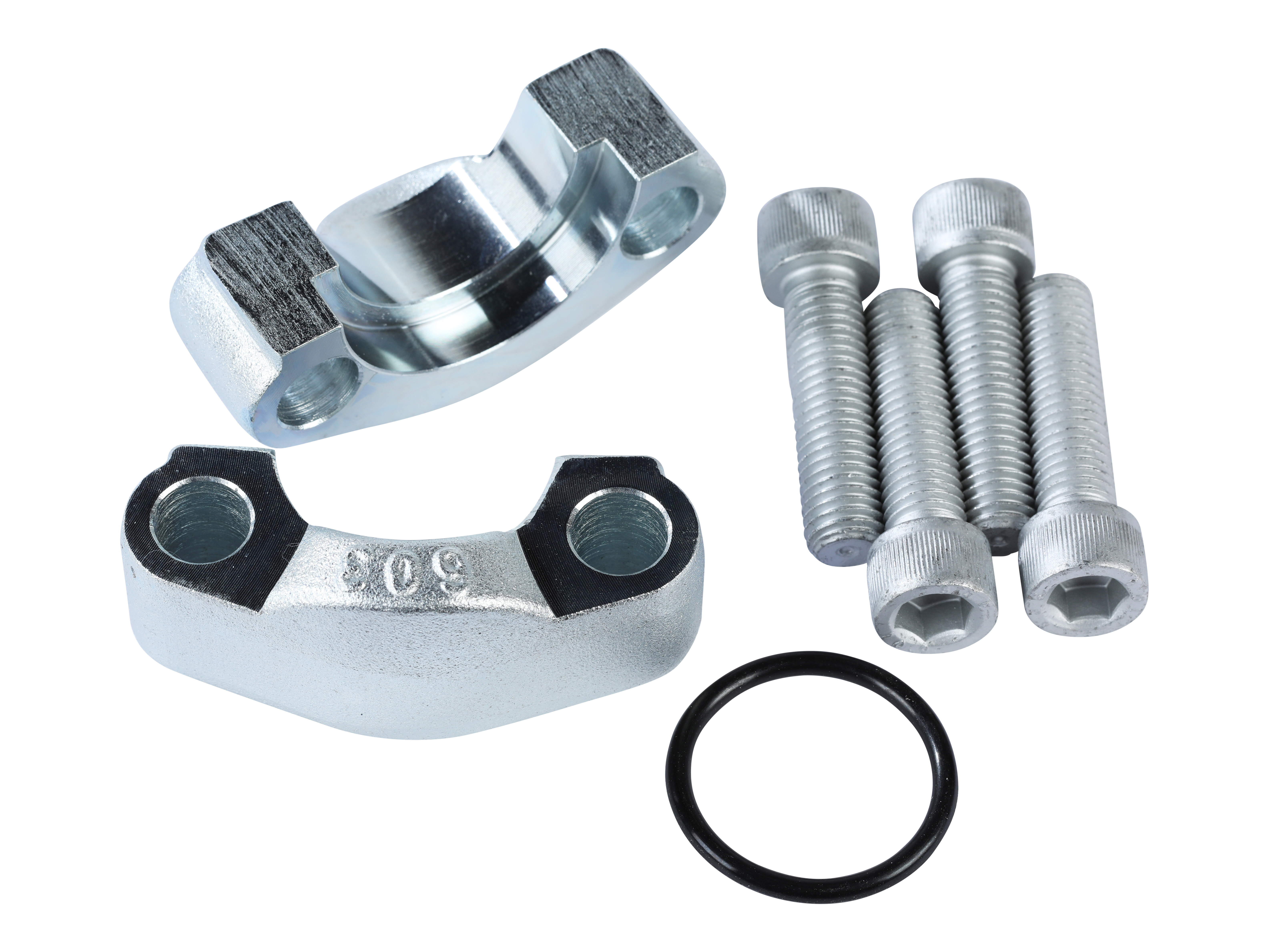

Split flange 1" SAE6000 - komplet

Partnumber:

AFS603M

Package size:

0 Set

Min. order quantity is:

1 Set

Reservedele (1)

O-ring 90S

Partnumber: 32.93X3.53S

Specifications
Dimensions and shipping

Antal bolte

Bolt dimension

M12x45 mm

Diameter flange

47.6 mm

Dimension C

57.2 mm

Dimension E

27.8 mm

Flange

1 "

Flange SAE/DIN

6000 PSI

Korrosions resistens

480 hours salt spray DIN EN 9227

Materiale

Stål

Mærke navn

Havit

O-ring

32.93X3.53 mm

Pakningsmateriale

NBR

Shore

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Temperatur maks.

+90 °C

Temperatur min.

-40 °C

Tryk maks.

420 bar

Package size

0 Set

Barcode

5704295921617

Gross weight

0,75 Kg

Net weight

0,75 Kg

Country of origin

DEU

Intrastat code

73079100

Product information
Measure sketch

Split flange 1" SAE6000 - komplet
