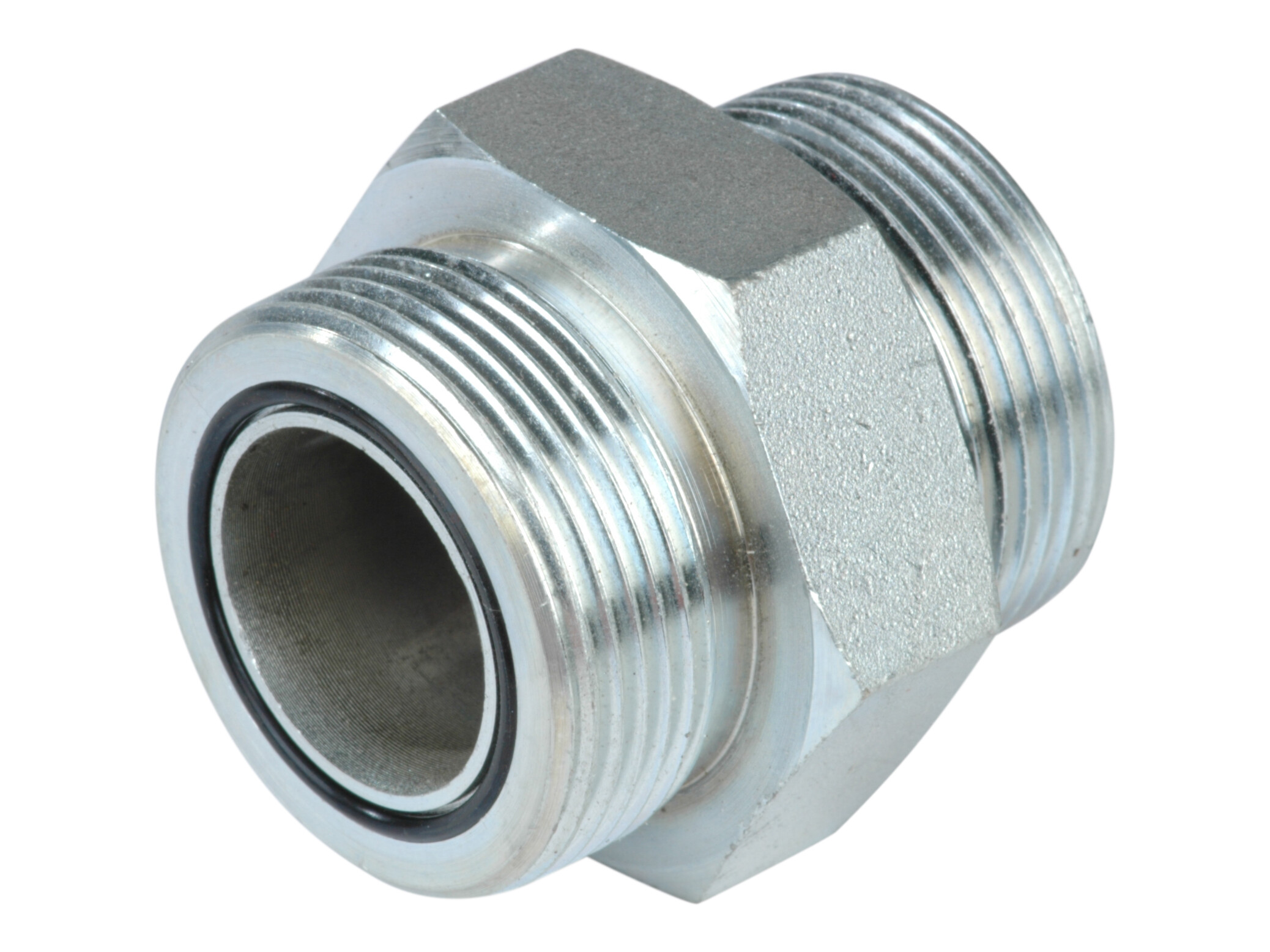

Nippel 1.11/16" ORFS x 1.5/8" SAE
Nippel 1.11/16" ORFS x 1.5/8" SAE
Partnumber:
103FR2020
Package size:
0 pcs
Min. order quantity is:
1 pcs
A
52,3 mm
Angle
0 °
B
17,5 mm
B1
17,5 mm
Brand Name
FOR
CH
48 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
18,5 mm
F
1.11/16-12 ORFS
F1
1.5/8-12 UNF
Material
Stål
Model code
A502014/3241
Pressure max.
280 bar
Sealing material
NBR
Standard ISO
ISO 11926
Surface treatment
El-forzinket / hvidkromatiseret
T
28-30-32 mm
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread outer
1.11/16-12 ORFS
Thread outer
1.5/8-12 UNF
Package size
0 pcs
Barcode
5704295796451
Gross weight
0,39 Kg
Net weight
0,39 Kg
Country of origin
ITA
Intrastat code
73071110
Nippel 1.11/16" ORFS x 1.5/8" SAE
