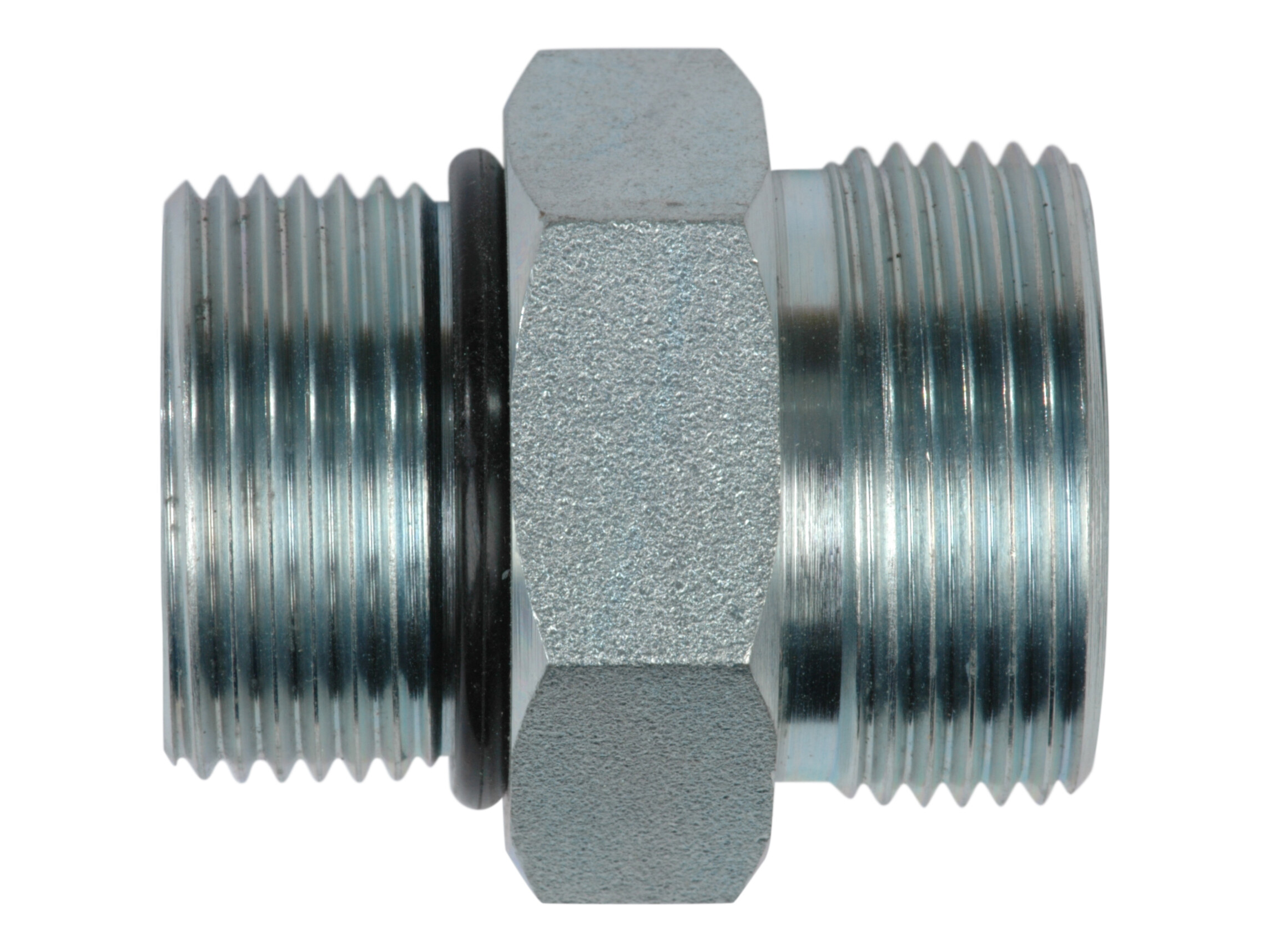

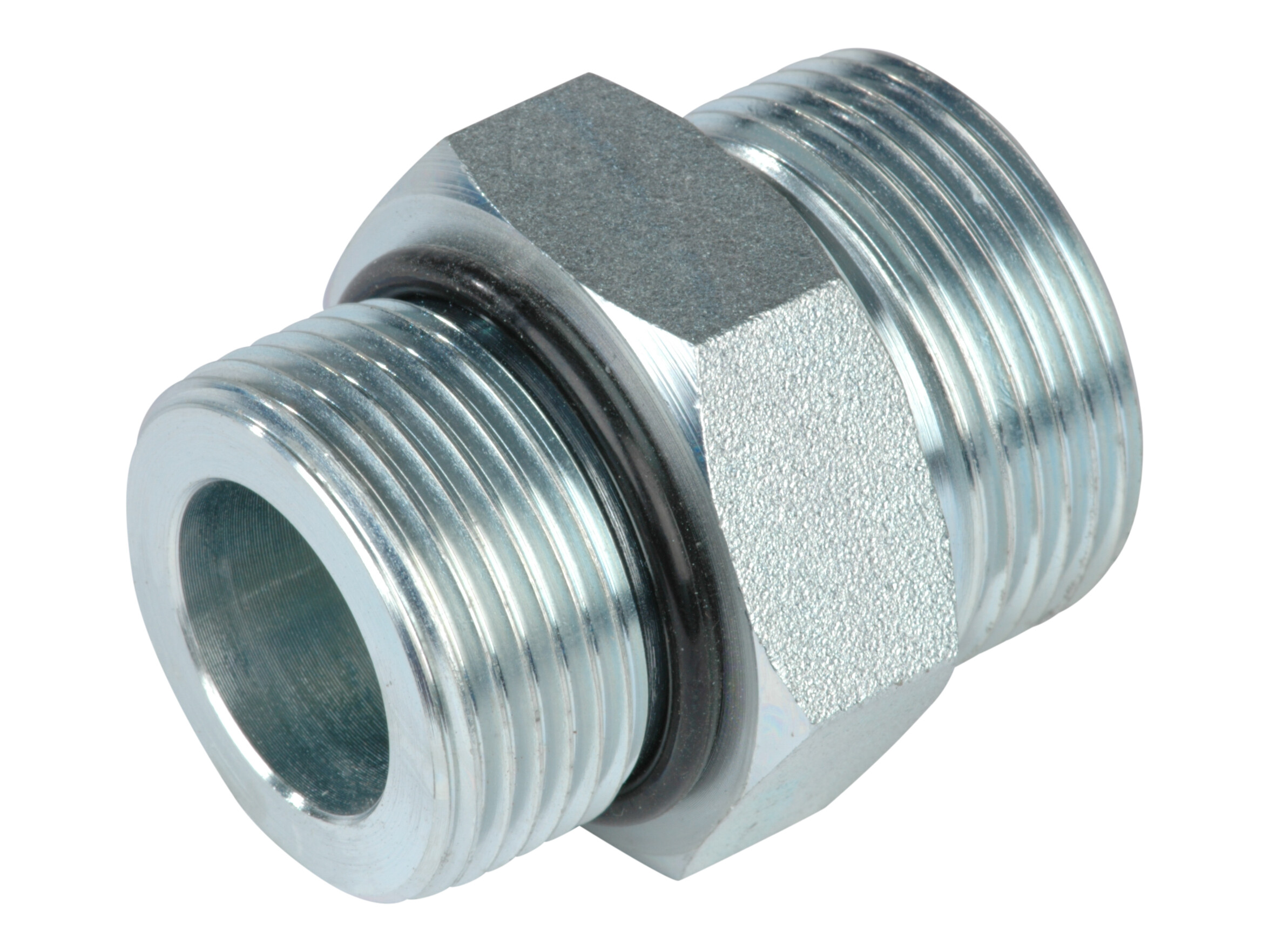

103FR1616 - Nippel 1.7/16"ORFSx1.5/16"SAE
Nippel 1.7/16"ORFSx1.5/16"SAE
Varenummer:
103FR1616
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
A
50,3 mm
Angle
0 °
B
17,5 mm
Brand Name
FOR
CH
38 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
18,5 mm
Material
Stål
Pressure max.
420 bar
Sealing material
NBR
Standard ISO
ISO 11926
Surface treatment
El-forzinket / hvidkromatiseret
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread outer
1.7/16-12 ORFS
Thread outer
1.5/16-12 UNF
Package size
0 pcs
Barcode
5704295801834
Gross weight
0,27 Kg
Net weight
0,27 Kg
Country of origin
ITA
Intrastat code
73071110
Nippel 1.7/16"ORFSx1.5/16"SAE
