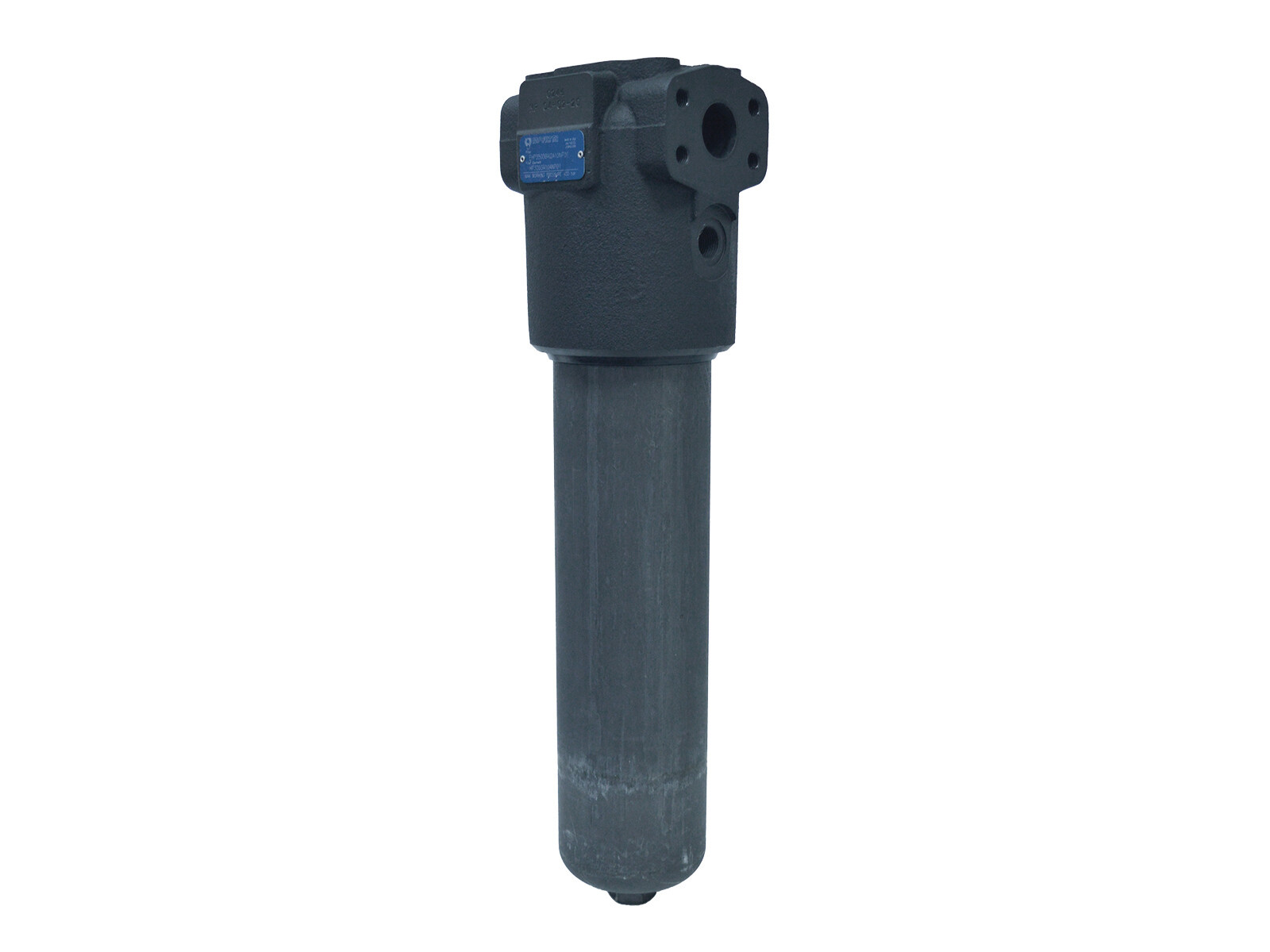

FHP3503BAI2A10NP01 - Tryckfilter 450 l/min SAE 1-1/4'' 10my absolut
Vaihtopatruuna HP3203A10AN, Bypass 6bar
Partnumber:
FHP3503BAI2A10NP01
Package size:
1 st
Min. order quantity is:
1 st
By-pass ventil
6 bar

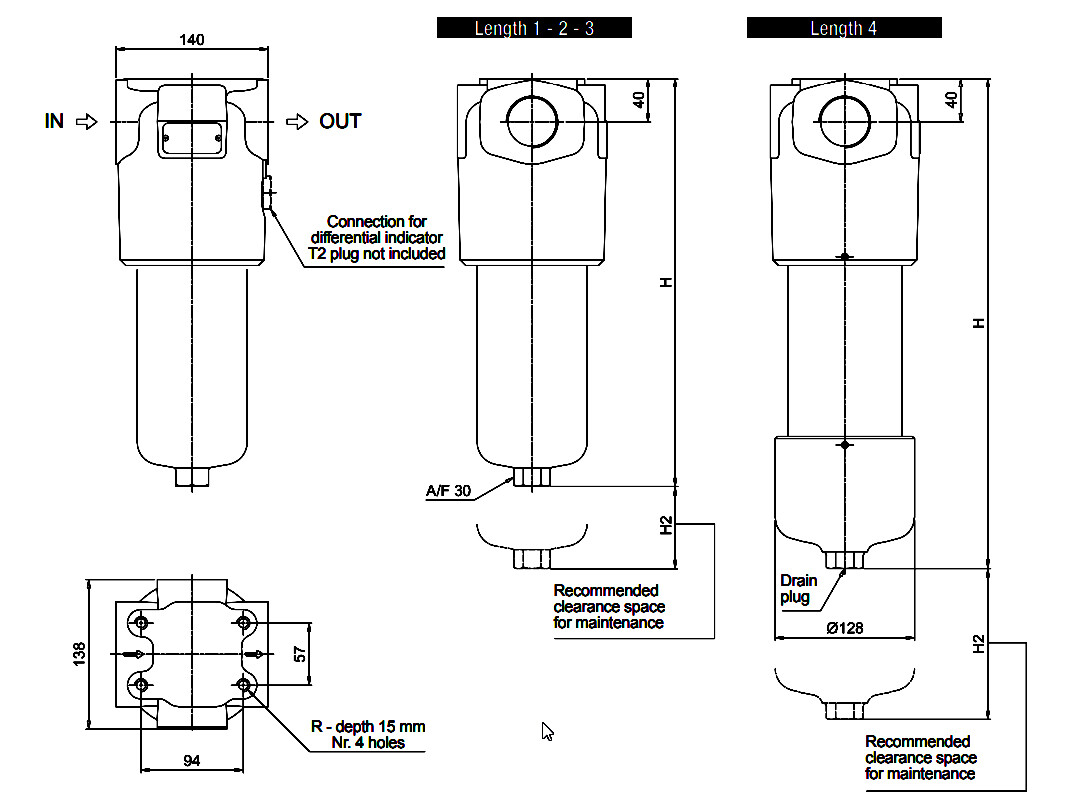

Dimension H
550 mm
Filtrering
Absolut
Filtreringsgrad
10 my
Fläns
1.1/4 "
Fläns SAE/DIN
6000 PSI
Flödeshastighet nominell LMin
450 lpm
Modell kod
FHP3503BAI2A10NP01
Märke namn
MP Filtri
Packningsmaterial
NBR
Temperatur max.
+110 °C
Temperatur min.
-25 °C
Tryck max.
420 bar
Package size
1 st
Barcode
416113
Gross weight
18,37 Kg
Net weight
18,37 Kg
Country of origin
IT
Vaihtopatruuna HP3203A10AN, Bypass 6bar
