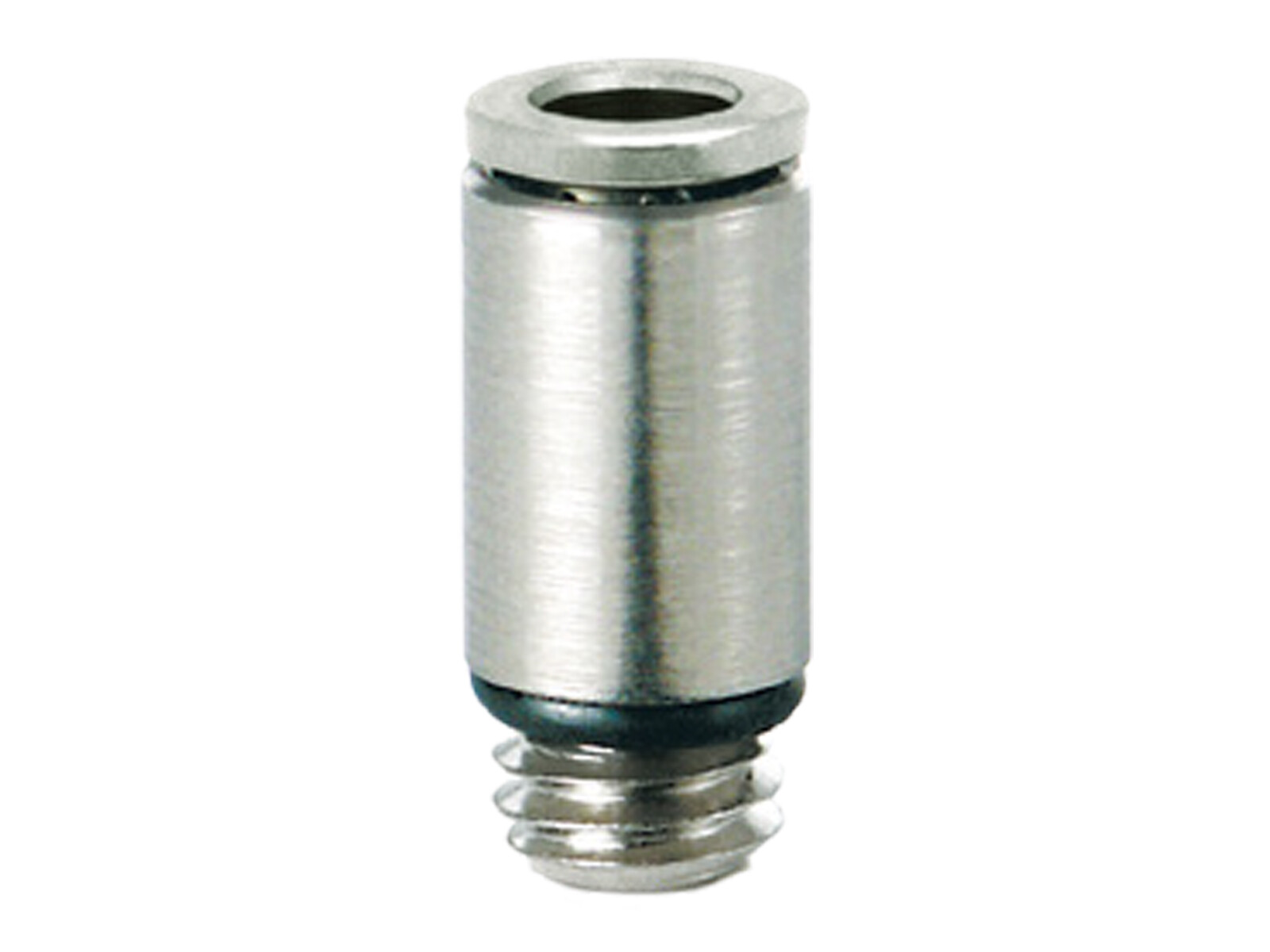

Pneufit 10 straight basic connectors MM cylindrical thread

Adapter Rak Ø4 mm Utv-M3

Adapter Rak Ø4 mm Utv-M5

Adaptor straight Ø4 mm Utv-M6

Adapter Rak Ø5 mm Utv-M5

Adapter Rak Ø6 mm Utv-M5

SELECT VARIANT

Partnumber	Description	Diameter pipe	Pressure max.
102250403	Adapter Rak Ø4 mm Utv-M3	4 mm	20 bar
102250405	Adapter Rak Ø4 mm Utv-M5	4 mm	20 bar
102250406	Adaptor straight Ø4 mm Utv-M6	4 mm	20 bar
102250505	Adapter Rak Ø5 mm Utv-M5	5 mm	20 bar
102250605	Adapter Rak Ø6 mm Utv-M5	6 mm	20 bar

Angle

Material

Brass

Pressure max.

REACH compliant

Yes

RoHs compliant

Yes

Sealing material

NBR, POM (Acetal)

Standard

Silicone Free

Surface treatment

Nickel-plated

Temperature max.

+80

Temperature min.

-20

Thread ISO standard

ISO 262

Vacuum max.

-0.9
