    • Straight fitting 0° - L-series - DIN union nut O-ring seal x MM male WD seal - VA-MLDKO / EGE-LMED

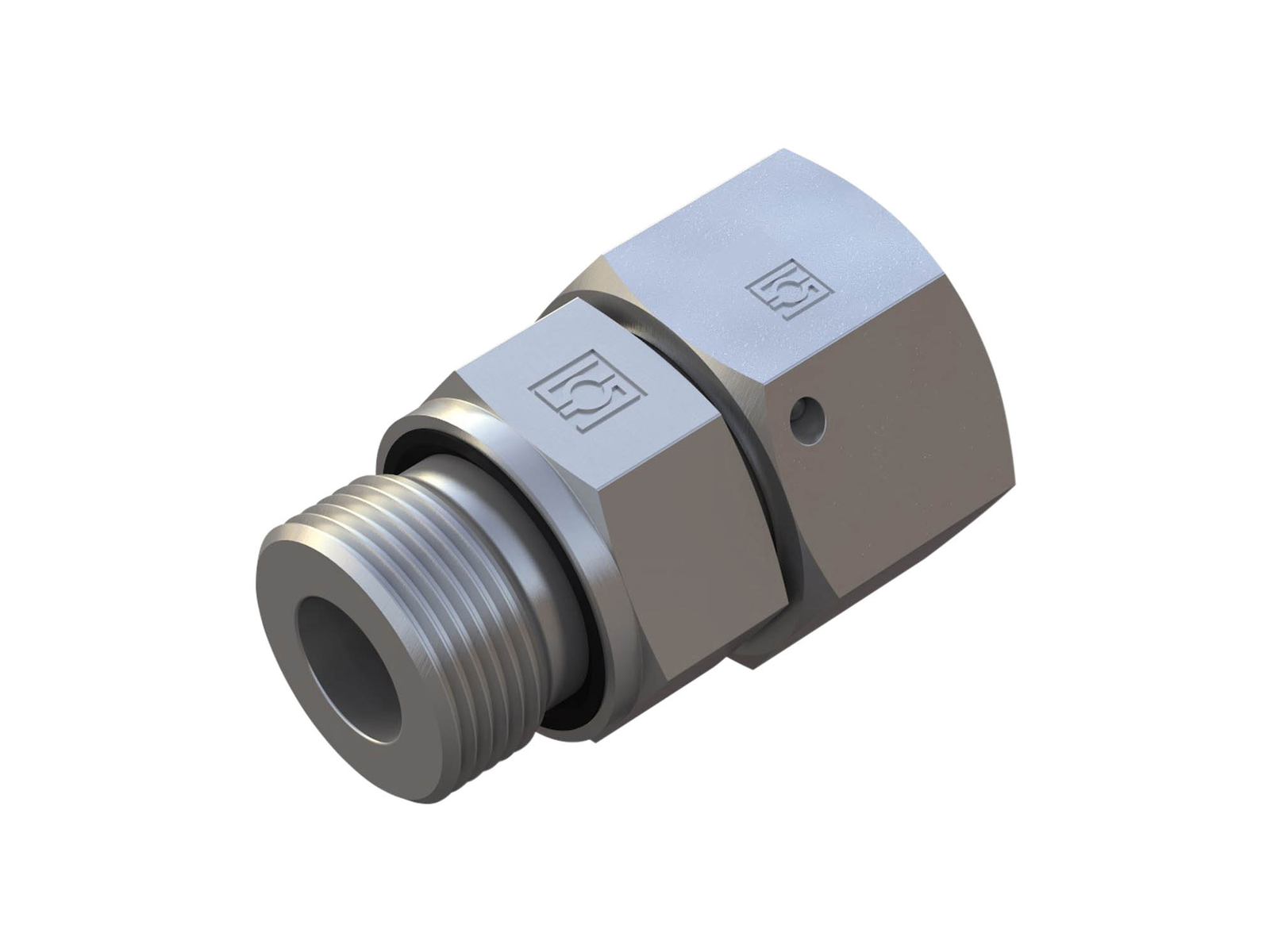

    Straight fitting 0° - L-series - DIN union nut O-ring seal x MM male WD seal - VA-MLDKO / EGE-LMED

    Välj variant
    VÄLJ VARIANT
    VÄLJ VARIANT
    Artikelnummer Beskrivning Diameter pipe Thread outer metric Pressure max. Thread inner metric
    EGE06LMED Stud fitting - ø6L indv x m10x1 - o-ring seal 6 mm M10x1 500 bar M12x1,5
    EGE08LMED Stud fitting - ø8L indv x M12x1.5 o-ring seal 8 mm M12x1,5 500 bar M14x1,5
    EGE10LMED Stud fitting - ø10L indv x M14x1.5 - o-ring seal 10 mm M14x1,5 500 bar M16x1,5
    EGE12LMED Stud fitting - ø12L indv x M16x1.5 - o-ring seal 12 mm M16x1,5 500 bar M18x1,5
    EGE15LMED Stud fitting - ø15L indv x M18x1.5 - o-ring seal 15 mm M18x1,5 400 bar M22x1,5
    EGE18LMED Stud fitting - ø18L indv x M22x1.5 - o-ring seal 18 mm M22x1,5 400 bar M26x1,5
    EGE22LMED Stud fitting - ø22L indv x M26x1.5 - o-ring seal 22 mm M26x1,5 250 bar M30x2
    EGE28LMED Stud fitting - ø28L indv x M33x2 - o-ring seal 28 mm M33x2 250 bar M36x2
    EGE35LMED Stud fitting - ø35L indv x M42x2 - o-ring seal 35 mm M42x2 250 bar M45x2
    Angle
    0
    Corrosion resistance
    1200 hours salt spray DIN EN ISO 9227
    Material
    Steel
    REACH compliant
    Yes
    RoHs compliant
    Yes
    Safety factor
    4
    Sealing material
    NBR
    Series
    L
    Surface treatment
    Zinc-Nickel plated
    Temperature max.
    +100
    Temperature min.
    -35
