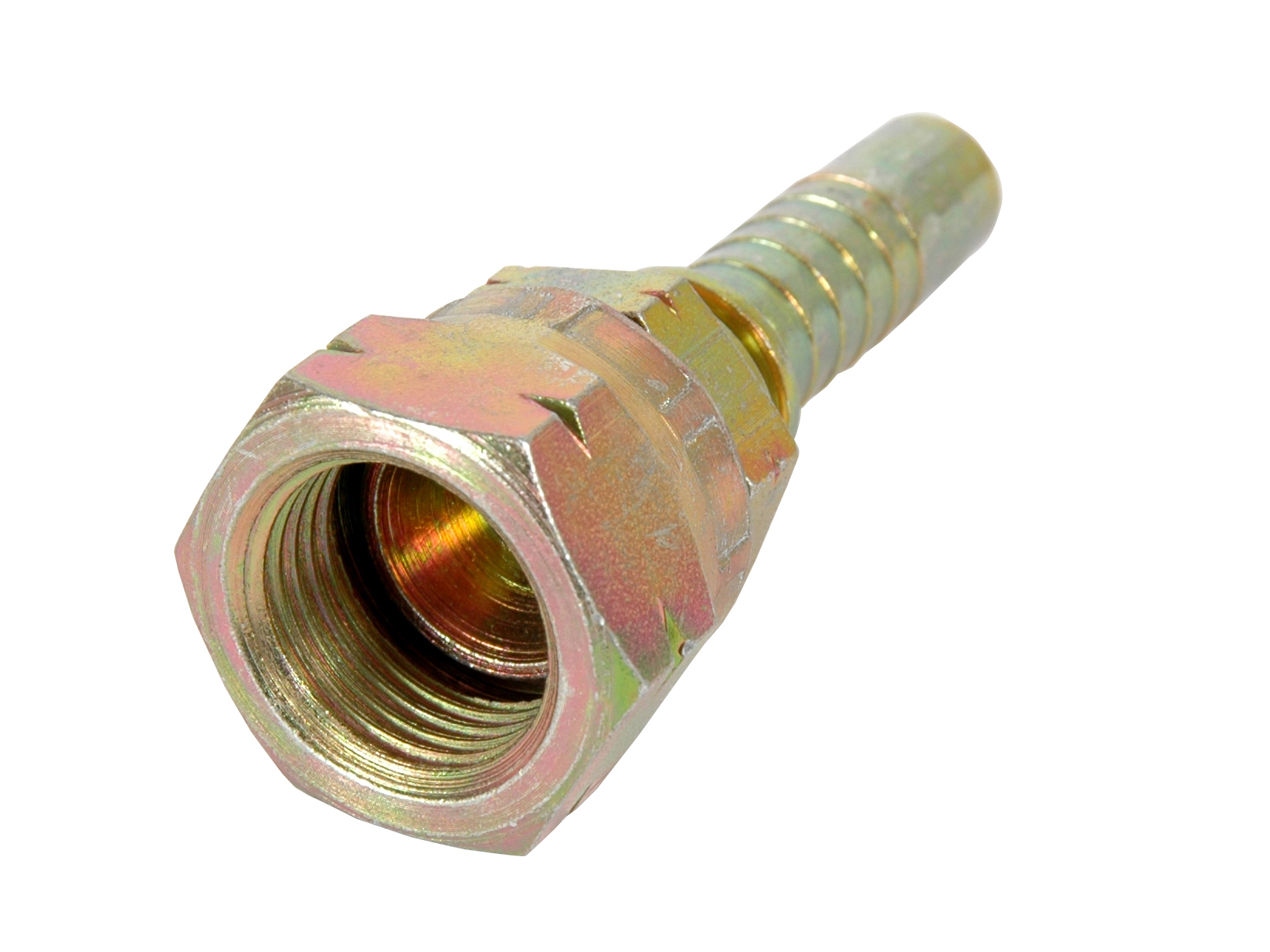

Metric union nut, 60° cone face JIS/M - "NM"

SELECT VARIANT
Partnumber Description Hose size Angle Hose coupling type Material
4907-14-04 Insert 1/4" - M14x1.5 nut 1/4 " 0 ° For separate ferrule Steel
4907-14-06 Insert 3/8" - M14x1.5 nut 3/8 " 0 ° For separate ferrule Steel
4907-16-05 Insert 5/16" - M16x1.5 nut 5/16 " 0 ° For separate ferrule Steel
4907-16-06 Insert 3/8" - M16x1.5 nut 3/8 " 0 ° For separate ferrule Steel
4907-18-06 Insert 3/8" - M18x1.5 nut 3/8 " 0 ° For separate ferrule Steel
4907-18-08 PRESSNIPPEL 4907 IJM18 SL1/2 1/2 " 0 ° For separate ferrule Steel
4907-22-08 Insert 1/2" - M22x1.5 nut 1/2 " 0 ° For separate ferrule Steel
4907-24-10 Insert 5/8" - M24x1.5 nut 5/8 " 0 ° For separate ferrule Steel
4907-30-12 Insert 3/4" - M30x1.5 nut 3/4 " 0 ° For separate ferrule Steel
4907-33-16 Insert 1" - M33x1.5 nut Komatsu 1 " 0 ° For separate ferrule Steel
4907-36-20 Insert 1.1/4" - M36x1.5 nut Komatsu 1.1/4 " 0 ° For separate ferrule Steel
4907-42-24 Insert 1.1/2" - M42x1.5 nut Komatsu 1.1/2 " 0 ° For separate ferrule Steel
Angle
0

Brand Name
I.M.M Hydraulics

Hose coupling type
For separate ferrule

Material
Steel

Surface treatment
Electro-galvanized / White chromatized
