Partnumber Description Displacement Shaft diameter Shaft type Continuous power max.

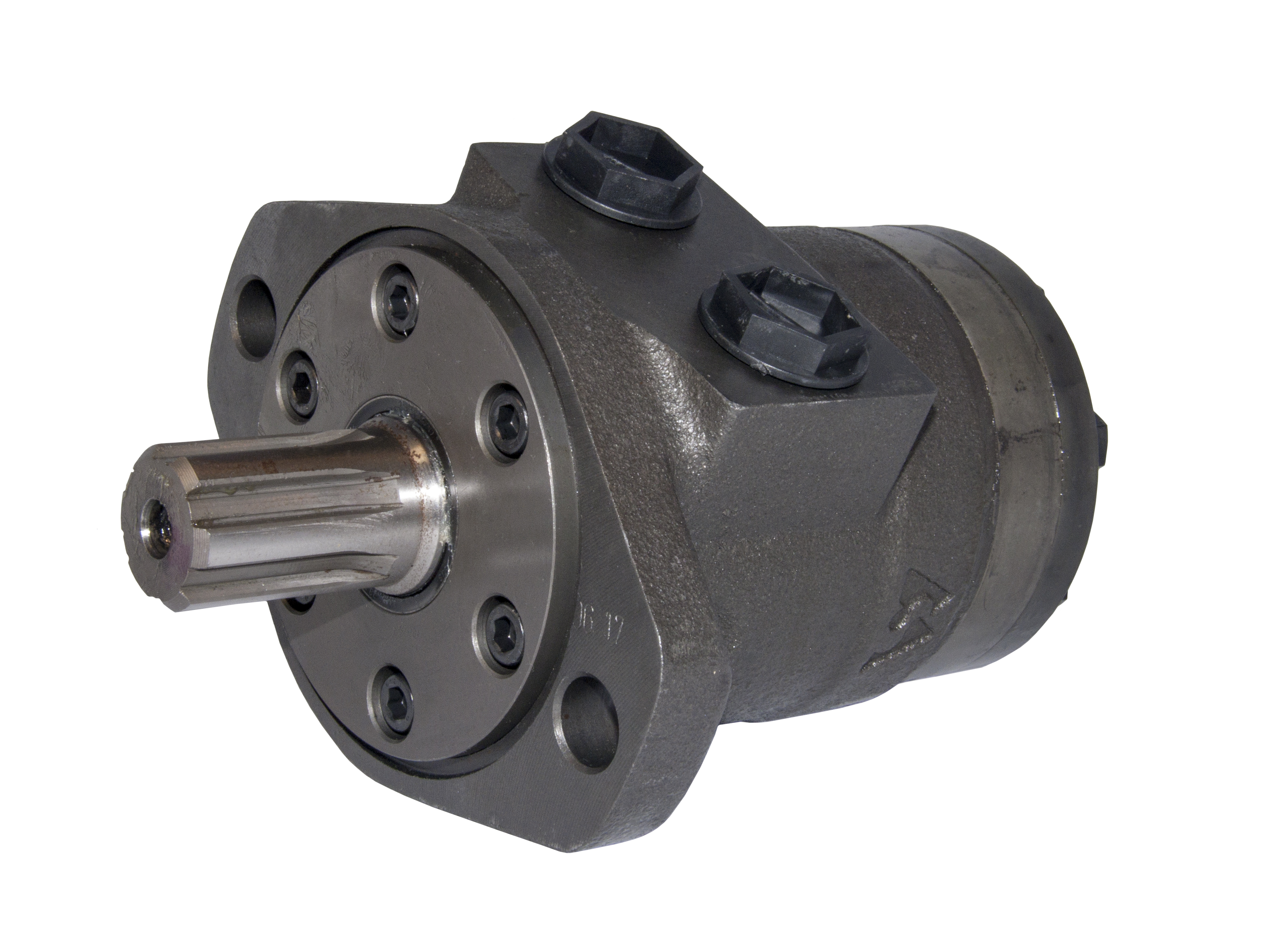

HP125GU-01C MOTOR M+S 125cc 125 cm3 25,4 mm Spline 8.4 kW
HP160GU-01C MOTOR M+S 160cc SAE-A 2H 160 cm3 25,4 mm Spline 7.7 kW
HP200GU-01C MOTOR M+S 200cc SAE-A 2H 200 cm3 25,4 mm Spline 7.1 kW
Brand Name
Hydraspecma
Drainport
G 1/4
Holes circle
106.4
Mounting flange
SAE-A2
Number of mounting holes
2
Recess
82,5
Shaft diameter
25,4
Shaft spline
SAE 6B 1"
Shaft type
Spline
Working ports
G 1/2
