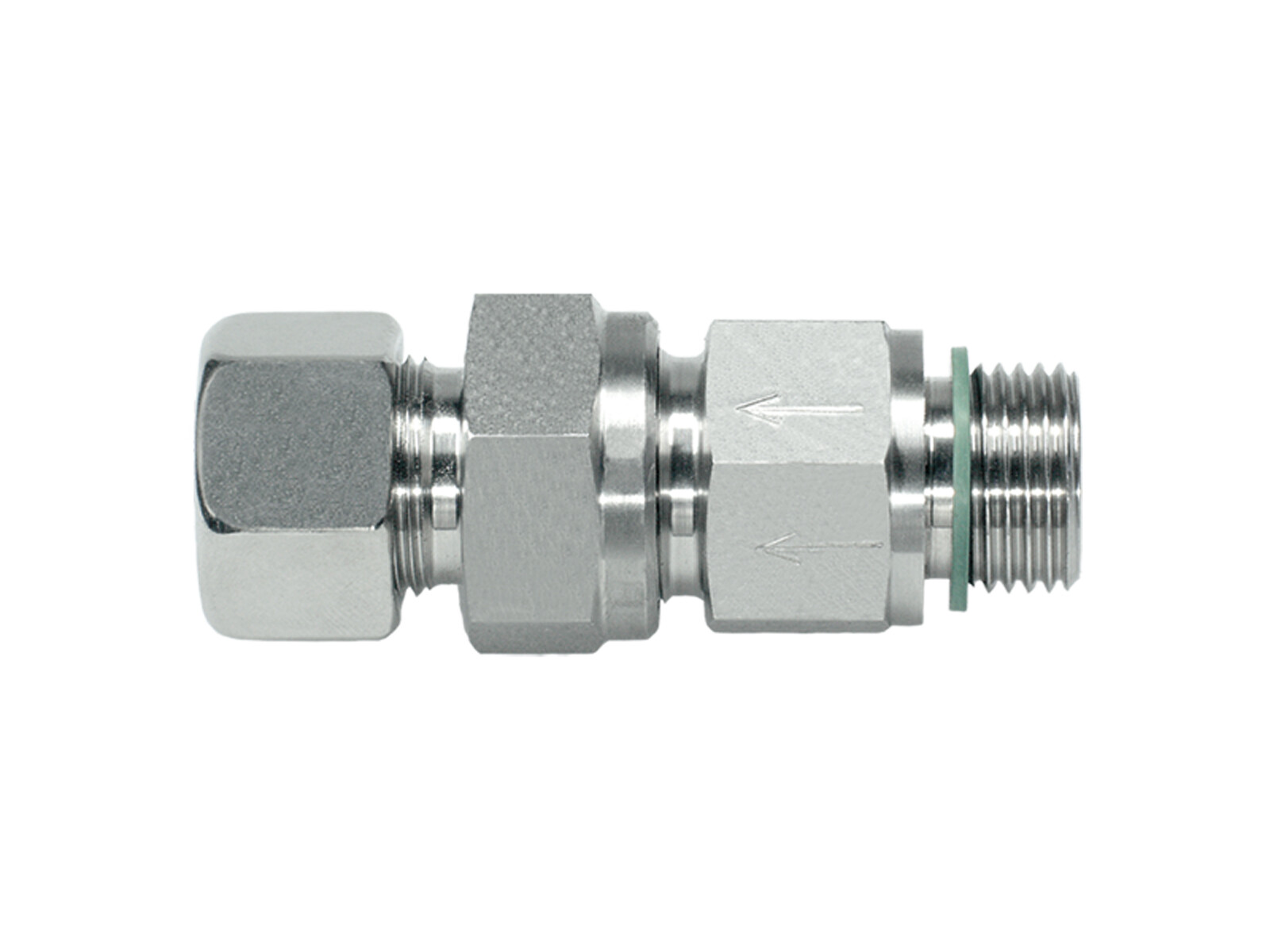

Backventil 25S, Utv-G1''ED 250 Bar Syrafast
Are supplied without cutting ring and nut - These parts must be ordered separately.
Standards: DIN 2353 / ISO 8434-1 and -4.
Material: Steel.
Surface: Galvanized and white passivated.
Mounting standard: DIN 3895-2
Allowable working temperature: -40°C to +120°C.
O-ring: NBR (Perbunan) Temperature range O-ring: -35°C to +100°C.
Partnumber:
RHV25SRED-SY
Package size:
1 st
Min. order quantity is:
1 st
Brand Name
Volz
Diameter pipe
25 mm
Material
Stainless steel
Material quality
1.4571 / AISI316Ti
Pressure max.
250 bar
Series
S
Temperature max.
+60 °C
Temperature min.
-20 °C
Thread
G 1 BSP
Package size
1 st
Barcode
236643
Gross weight
Kg
Net weight
Kg
Country of origin
deu
Are supplied without cutting ring and nut - These parts must be ordered separately.
Standards: DIN 2353 / ISO 8434-1 and -4.
Material: Steel.
Surface: Galvanized and white passivated.
Mounting standard: DIN 3895-2
Allowable working temperature: -40°C to +120°C.
O-ring: NBR (Perbunan) Temperature range O-ring: -35°C to +100°C.
