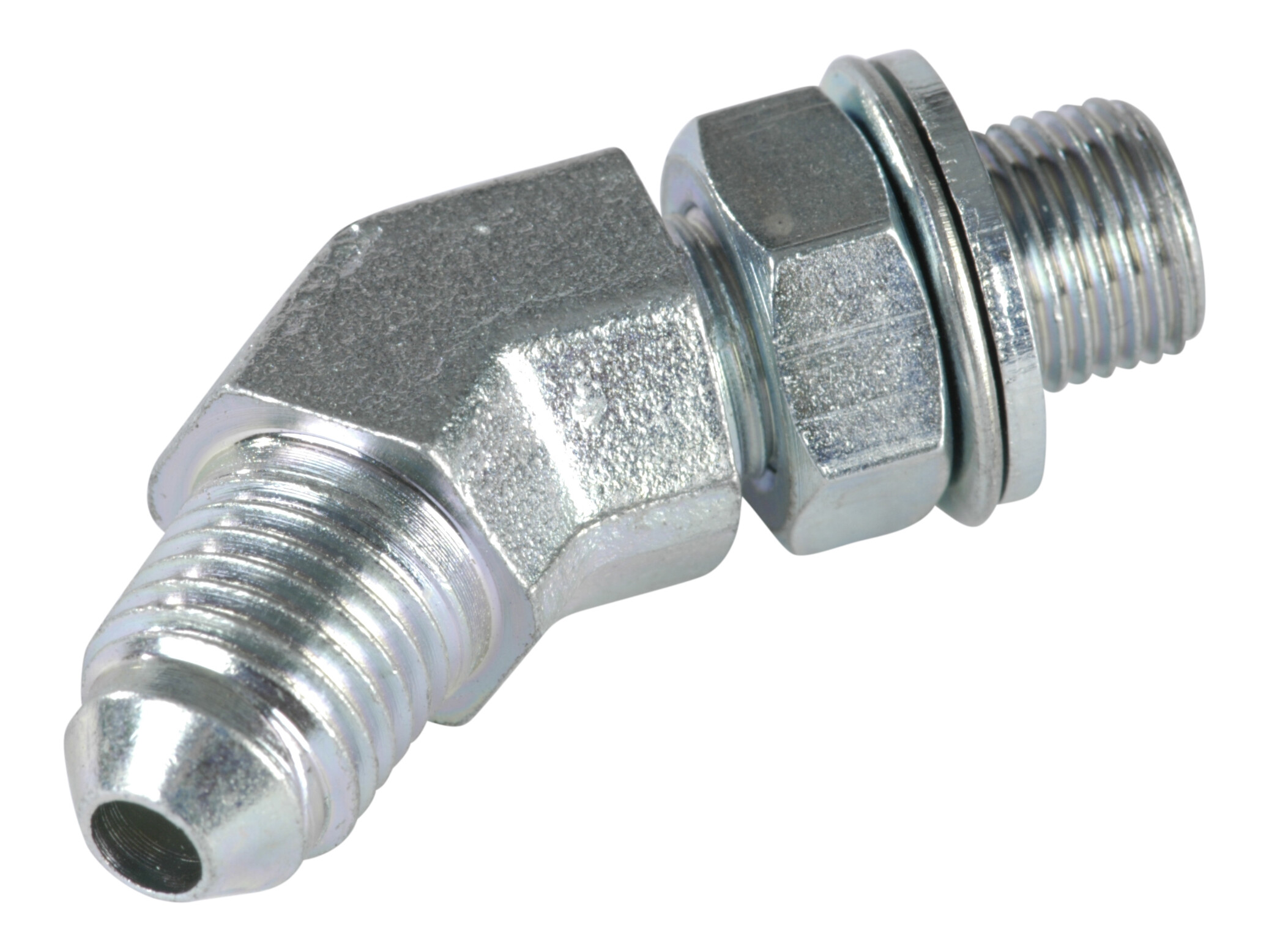

S615-06-10G elbow BSP
S615-06-10G elbow BSP
Partnumber:
JVEE-04-02
Package size:
50 st
Min. order quantity is:
1 st
Angle
45 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
6 mm
Dimension B
18 mm
Dimension C
26.5 mm
Dimension CH
14 mm
Dimension F
G 1/8 BSP
Dimension J
7/16-20 JIC
Dimension T
6 mm
Material
Steel
Pressure max.
450 bar
Surface treatment
Electro-galvanized / White chromatized
Thread outer
7/16-20 JIC
Thread outer
G 1/8 BSP
Package size
50 st
Barcode
144193
Gross weight
0,04 Kg
Net weight
0,04 Kg
Country of origin
ITA
Intrastat code
73071110
S615-06-10G elbow BSP
Note: Opening 3D files requires a program that supports the file format
