Reducing adaptor - ø6LL x ø4LL - INCL FIM + FIDS
Temperature/pressure reduction:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
Partnumber:
GR0604LL
Package size:
50 st
Min. order quantity is:
1 st
Diameter rør
6 - 4 mm

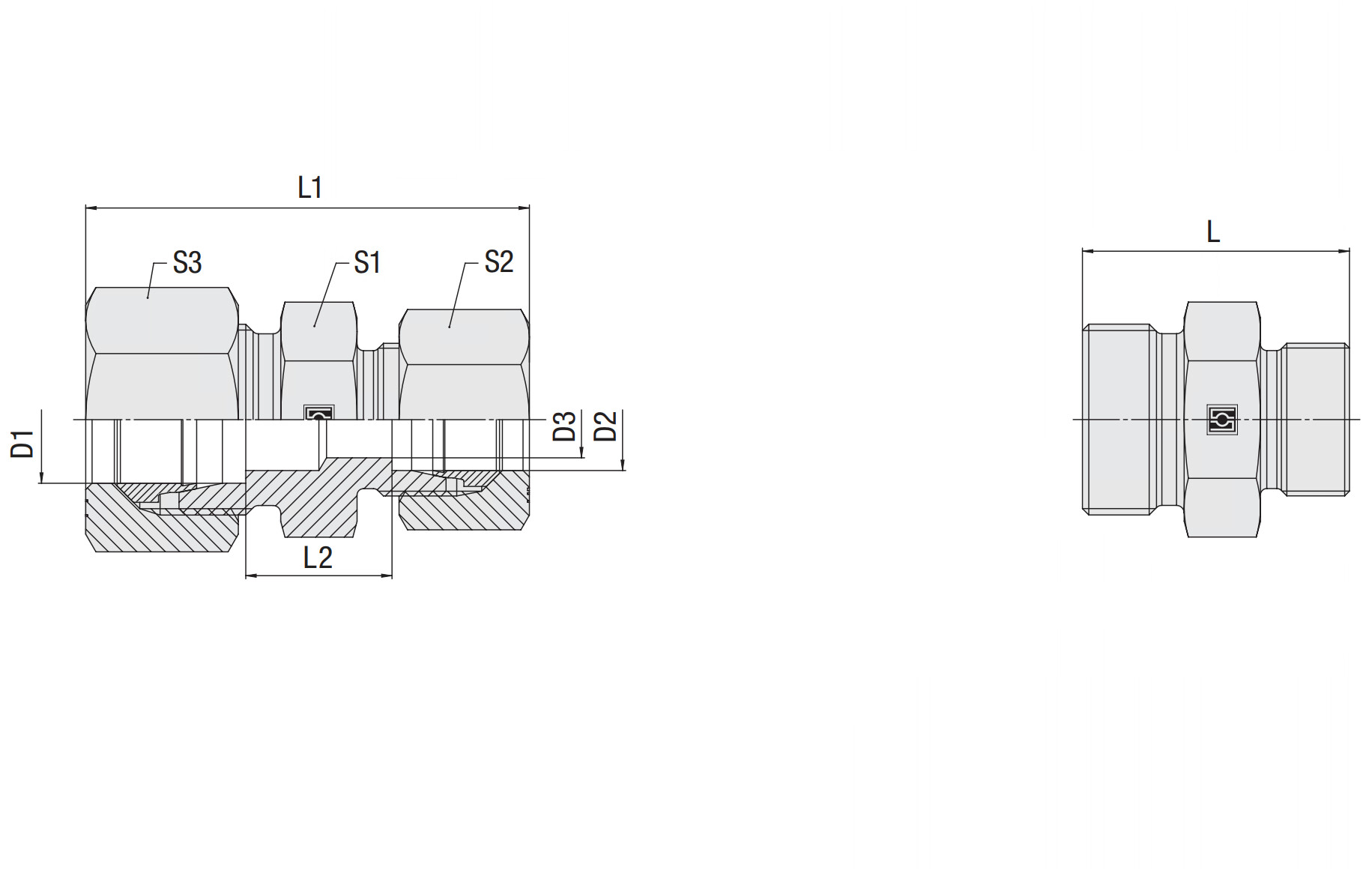

Dimension D1
6 mm
Dimension D2
4 mm
Dimension D3
3 mm
Dimension L
20 mm
Dimension L2
10.5 mm
Dimension S1
11 mm
Gevind udvendig metrisk
M10x1, M8x1
Korrosions resistens
1200 hours salt spray DIN EN ISO 9227
Materiale
Steel
Model kode
FI-G-06/04LL-W3-MS
Mærke navn
Gates
Overfladebehandling
Zinc-Nickel plated
REACH compliant
Yes
RoHs compliant
Yes
Serie
LL
Serie 1
LL
Serie 2
LL
Sikkerhedsfaktor
4
Temperatur maks.
+120 °C
Temperatur min.
-40 °C
Tryk maks.
100 bar
Vinkel
0 °
Package size
50 st
Barcode
129702
Gross weight
0,018 Kg
Net weight
0,018 Kg
Country of origin
deu
Intrastat code
73071110
Temperature/pressure reduction:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
