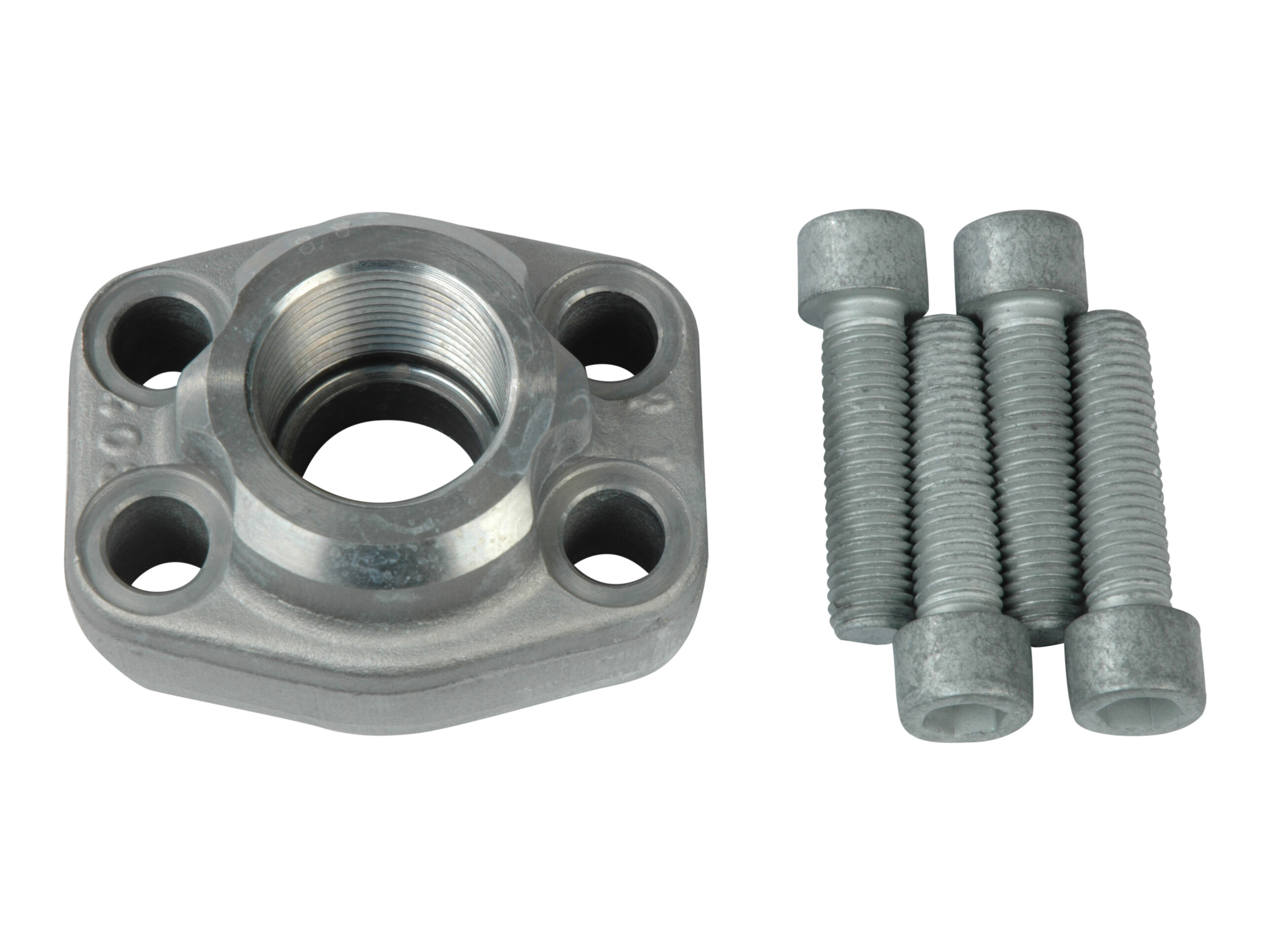

Threaded flange 1" SAE6000 x 1" BSP - complete
Threaded flange 1" SAE6000 x 1" BSP - complete
Varenummer:
8610-16-16-KM
Pakke str.:
1 Set
Min. bestillingsenhed er:
1 Set
A
G 1 BSP
Angle
0 °
B
25 mm
Bolt dimension
M12x45 mm
Brand Name
Havit
C
57,2 mm
Corrosion resistance
480 hours salt spray DIN EN 9227
D
81 mm
Diameter flange
47.6 mm
E
27,8 mm
F
65 mm
Flange
1 "
Flange SAE/DIN
6000 PSI
G
42 mm
H
25 mm
I
24 mm
L
13 mm
M
M12x45
Material
Steel
Number of bolts
4
O-ring
32,93X3,53 mm
Pressure max.
420 bar
Sealing material
NBR
Shore
90
Standard ISO
ISO 6162-2
Standard SAE
SAE J518 Code 62
Surface treatment
Zinc-Nickel plated
Temperature max.
+90 °C
Temperature min.
-40 °C
Pakke str.
1 Set
Stregkode
110421
Brutto vægt
0,81 Kg
Netto vægt
0,81 Kg
Oprindelsesland
DEU
Intrastat varekode
73079100
Threaded flange 1" SAE6000 x 1" BSP - complete
