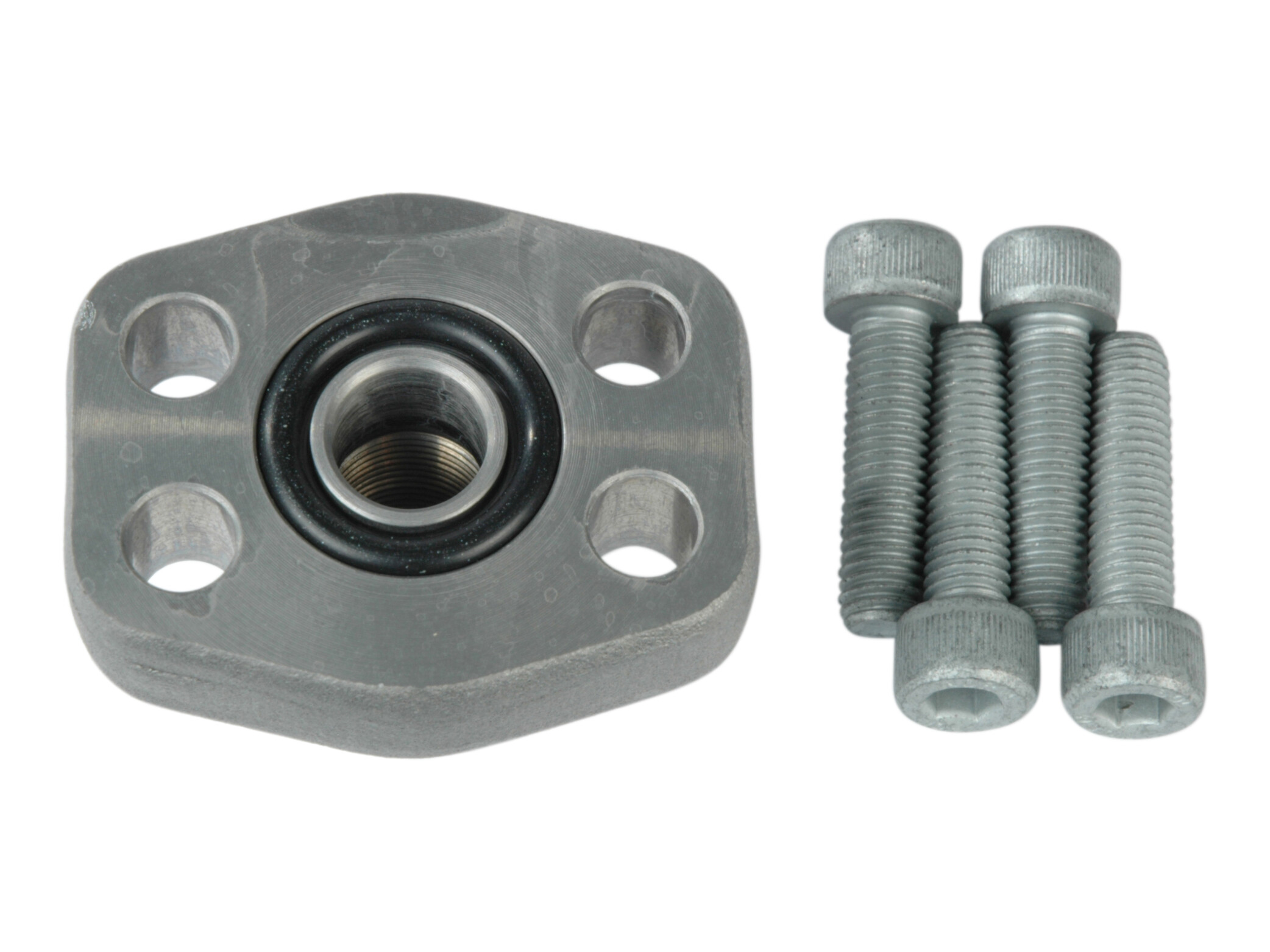

Threaded flange 1/2" SAE3000 x 3/8" BSP - complete

Threaded flange 1/2" SAE3000 x 3/8" BSP - complete

Partnumber:

8310-08-06-KM

Package size:

1 set

Min. order quantity is:

1 set

Specifications
Dimensions and shipping

Angle

0 °

Bolt dimension

M8x30 mm

Brand Name

Havit

Corrosion resistance

480 hours salt spray DIN EN 9227

Diameter flange

30.2 mm

Dimension C

38.1 mm

Dimension E

17.5 mm

Flange

1/2 "

Flange SAE/DIN

3000 PSI

Material

Steel

Number of bolts

O-ring

18.64X3.53 mm

Pressure max.

350 bar

Sealing material

NBR

Shore

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Surface treatment

Zinc-Nickel plated

Temperature max.

+90 °C

Temperature min.

-40 °C

Thread inner

G 3/8 BSP

Package size

1 set

Barcode

416766

Gross weight

0,25 Kg

Net weight

0,25 Kg

Country of origin

DEU

Intrastat code

73079100

Product information
Measure sketch

Threaded flange 1/2" SAE3000 x 3/8" BSP - complete
