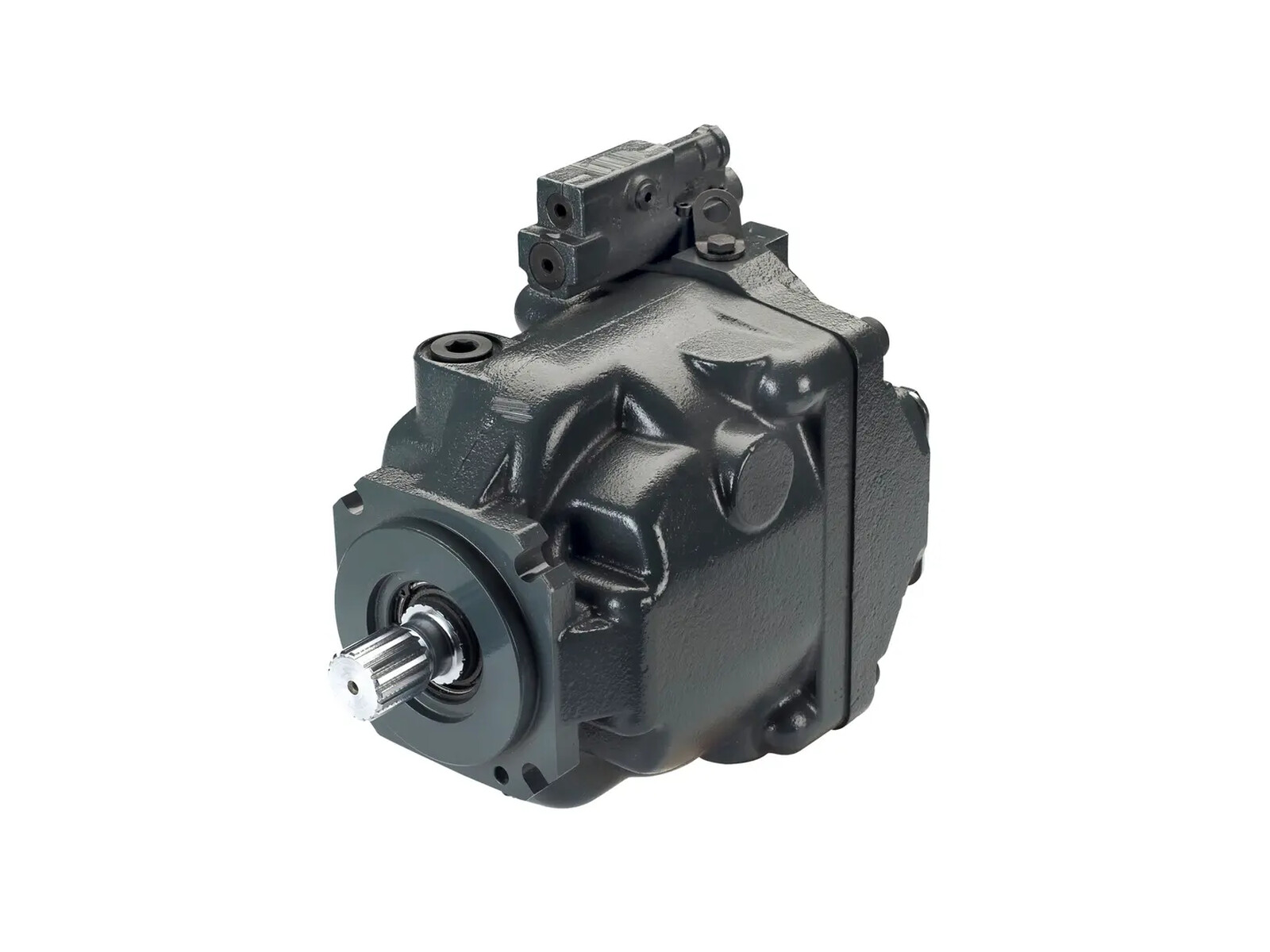

ER-R-147C-LS-25-20-NN-N-3-K5RP-A1N-AAA-NNN-NNN
ER-R-147C-LS-25-20-NN-N-3-K5RP-A1N-AAA-NNN-NNN
Partnumber:
83025068
Package size:
1 st
Min. order quantity is:
1 st
AuxMount/EndCap code
RP
Brand Name
Danfoss
Contamination level max.
22/18/13 - ISO 4406
Continuous rotation max.
2100 rpm
Control
Load sensing
Control type
LS
Displacement
147 cm3
Displacement limiter
Adjustable
Flange SAE/DIN
3000 PSI/6000 PSI
Flange inlet
2.1/2 "
Flange outlet
1.1/4 "
Holes circle
161.9 mm
Model
Frame E
Model code
ER-R-147C-LS-25-20-NN-N-3-K5RP-A1N-AAA-NNN-NNN
Mounting flange
SAE-C4
Number of mounting holes
4
Oil viscocity recommended
9 - 110 cSt
Port position
Side
Pressure continous max.
260 bar
Pressure max.
350 bar
Rear flange
None
Recess
127,0 mm
Rotation direction
Right (CW)
Rotation max. at max. pressure
2800 rpm
Rotational speed max.
2475 rpm
Rotational speed min.
500 rpm
Sensor type
None
Shaft code
K5
Shaft diameter
38,08 mm
Shaft keyway
9,52 mm
Shaft seal material
FKM/FPM (Viton®)
Shaft type
Cylindrical
Temperature intermittent max.
+104 °C
Temperature max.
+82 °C
Temperature min.
-40 °C
Package size
1 st
Barcode
450404
Gross weight
Kg
Net weight
59,75 Kg
Country of origin
usa
Intrastat code
84135061
ER-R-147C-LS-25-20-NN-N-3-K5RP-A1N-AAA-NNN-NNN
