Pump S45 ER-L-130B-LS-25-20-NN-N-3-K5CP-A1N-NNN-NNN-NNN
Danfoss S45 variabel piston pump for open circuit.

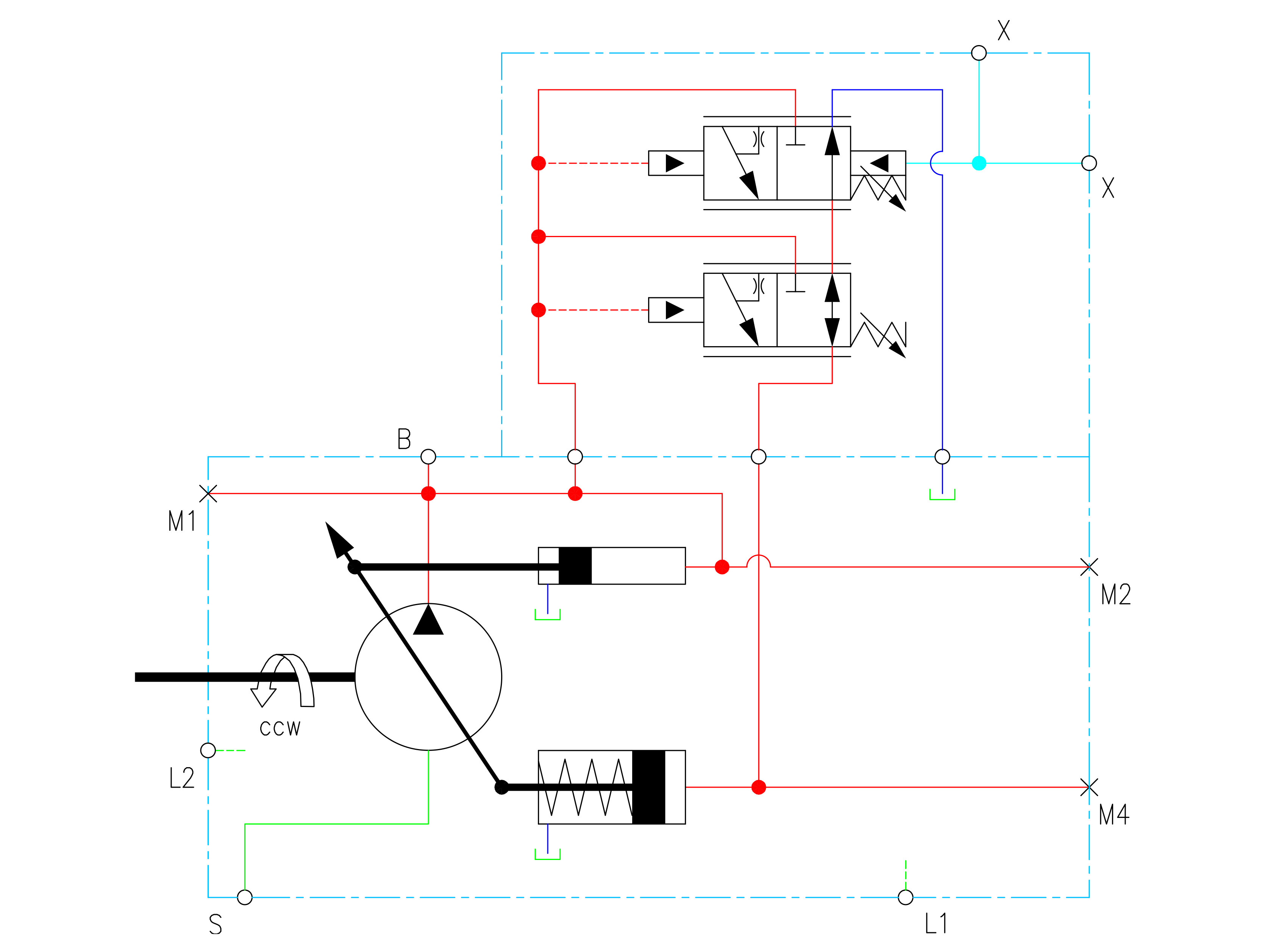

Regulations: Pressure Compensator, Load sensing, PC controlled pressure.
Connections: SAE flange side connection in endcap.
Shaft- and o-ringsseals in Viton®.
Partnumber:
83013229
Package size:
1 st
Min. order quantity is:
1 st
Antal monteringshål
4
Axel diameter
38,1 mm
Axel kilspår
9,52 mm
Axel kod
K5
Axeltätning materiale
FKM/FPM (Viton®)
Bultcirkel
161.9 mm
Deplacement
130 cm3
Ekstra montering/endedæksel typ
CP
Fläns SAE/DIN
3000 PSI/6000 PSI
Fläns bak
SAE-C 14T
Fläns ingång
2.1/2 "
Fläns utgång
1.1/4 "
Föroreningsgrad max.
22/18/13 - ISO 4406
Förträngningsbegränsar
None
Kont. rotation max.
2200 rpm
Kontroll
Load sensing
Kontrolltyp
LS
Modell
Frame E
Modell kod
ER-L-130B-LS-25-20-NN-N-3-K5CP-A1N-NNN-NNN-NNN
Monteringsfläns
SAE-C4
Märke namn
Danfoss
Oljeviskositet rekommanderad
9 - 110 cSt
Portplacering
Side
Reces
127,0 mm
Rotation max. vid max. tryck
2200 rpm
Rotationshastighet max.
2600 rpm
Rotationshastighet min.
500 rpm
Rotationsriktning
Left (CCW)
Sensor typ
None
Standard SAE
SAE J518 Code 62
Temperatur intermittent max.
+104 °C
Temperatur max.
+82 °C
Temperatur min.
-40 °C
Tryck kontinuerlig max.
310 bar
Tryck max.
400 bar
Package size
1 st
Barcode
334124
Gross weight
65,00 Kg
Net weight
65,00 Kg
Country of origin
Intrastat code
84135061
Danfoss S45 variabel piston pump for open circuit.
Regulations: Pressure Compensator, Load sensing, PC controlled pressure.
Connections: SAE flange side connection in endcap.
Shaft- and o-ringsseals in Viton®.
