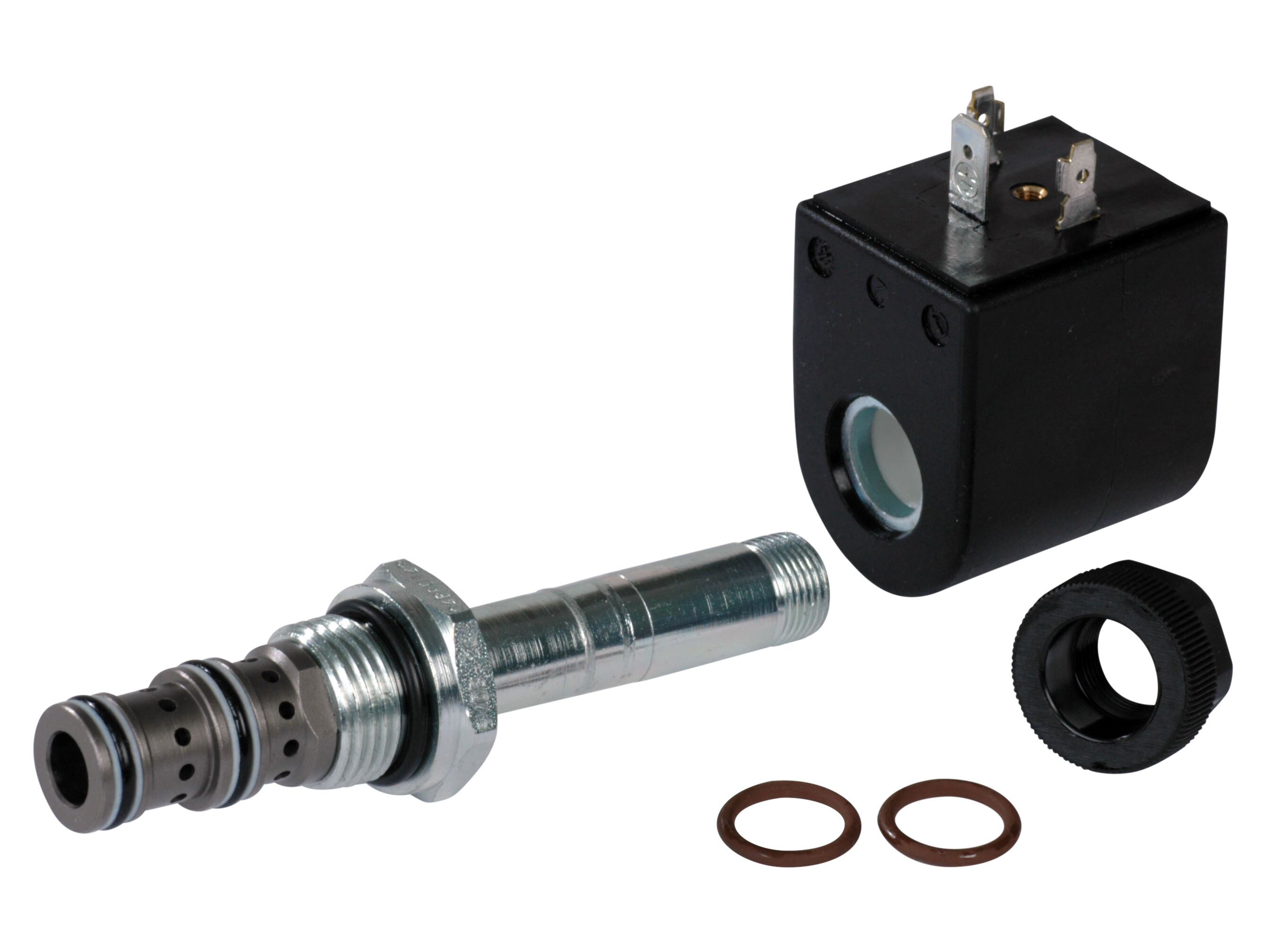

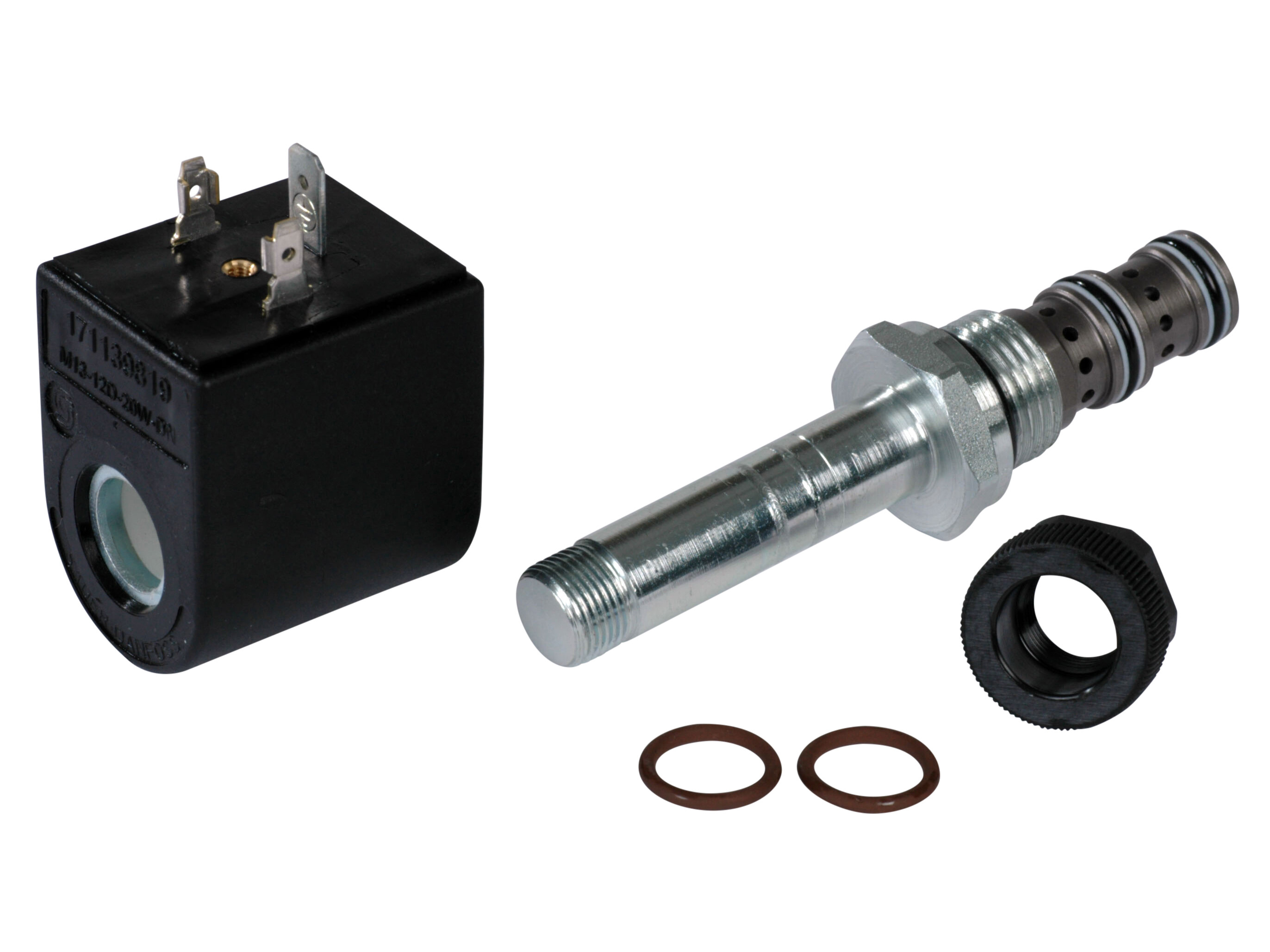

SOLENOID VALVE SV08-23-04-12D-DN-B-00
SOLENOID VALVE SV08-23-04-12D-DN-B-00
Partnumber:
805350319
Package size:
1 st
Min. order quantity is:
1 st
Activation
Solenoid
Brand Name
Danfoss
Cavity
SDC08-3
Contamination level max.
20/18/14 - ISO 4406
Current type
DC
Filter built-in
No
Flow rate nominal LMin
10 lpm
Manual operated
No
Model code
SV08-23-04-12D-DN-B-00
Number of ways/positions
3/2
Oil viscocity recommended
12 - 54 cSt
Plug type
DIN 43650 Form A
Pressure max.
230 bar
Sealing material
NBR
Solenoidtype
M13
Temperature max.
+100 °C
Temperature min.
-40 °C
Torque tightening
35 - 40 Nm
Voltage
12 V
Package size
1 st
Barcode
451273
Gross weight
0,32 Kg
Net weight
0,32 Kg
Country of origin
Intrastat code
84812010
SOLENOID VALVE SV08-23-04-12D-DN-B-00
