Pump S45 LR-R-025C-LS-26-20-NN-N-3-C3NG-A6N-KNB-NNN-NNN
Danfoss S45 variabel piston pump for open circuit.

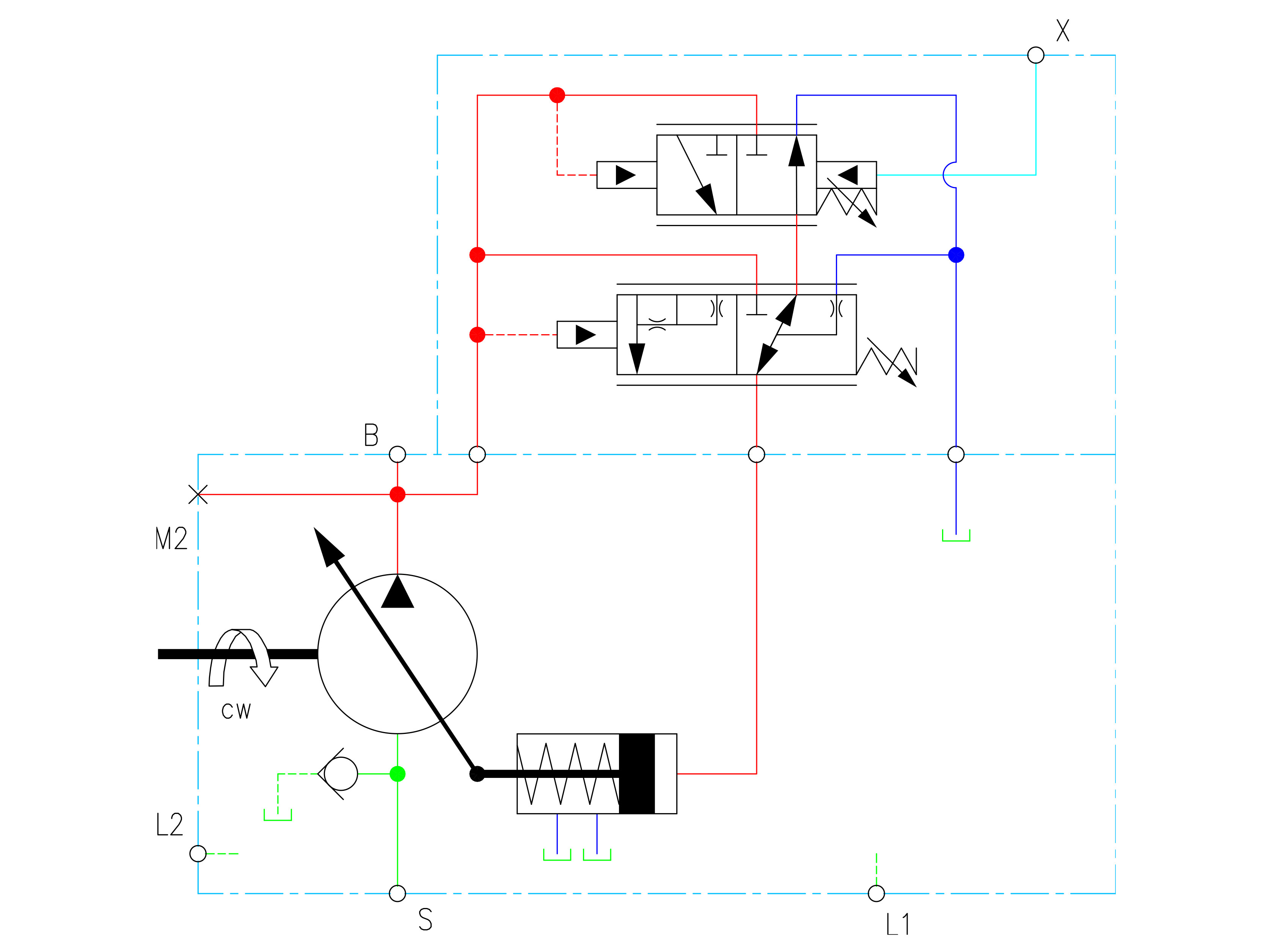

Regulations: Pressure Compensator, Load sensing, PC controlled pressure.
Connections: SAE flange side connection in endcap.
Shaft- and o-ringsseals in Viton®.
Partnumber:
7005057
Package size:
1 st
Min. order quantity is:
1 st
Antal monteringshål
2
Axel diameter
25,4 mm
Axel kod
C3
Axel spline
15T 16/32 SAE-BB
Axeltyp
Spline
Axeltätning materiale
FKM/FPM (Viton®)
Bultcirkel
146 mm
Deplacement
25 cm3
Ekstra montering/endedæksel typ
NG
Fläns bak
None
Föroreningsgrad max.
22/18/13 - ISO 4406
Förträngningsbegränsar
None
Ingång
1.7/8-12 UNF
Kont. rotation max.
3200 rpm
Kontroll
Load sensing
Kontrolltyp
LS
Modell
Frame L
Modell kod
LR-R-025C-LS-26-20-NN-N-3-C3NG-A6N-KNB-NNN-NNN
Monteringsfläns
SAE-B2
Märke namn
Danfoss
Oljeviskositet rekommanderad
9 - 110 cSt
Portplacering
Side
Reces
101,6 mm
Rotation max. vid max. tryck
3200 rpm
Rotationshastighet max.
3600 rpm
Rotationshastighet min.
500 rpm
Rotationsriktning
Right (CW)
Sensor typ
None
Temperatur intermittent max.
+104 °C
Temperatur max.
+82 °C
Temperatur min.
-40 °C
Tryck kontinuerlig max.
260 bar
Tryck max.
350 bar
Utgång
1.5/16-12 UNF
Utv. Splinesantal
15
Package size
1 st
Barcode
334099
Gross weight
25,00 Kg
Net weight
25,00 Kg
Country of origin
Intrastat code
84135061
Danfoss S45 variabel piston pump for open circuit.
Regulations: Pressure Compensator, Load sensing, PC controlled pressure.
Connections: SAE flange side connection in endcap.
Shaft- and o-ringsseals in Viton®.
