Pump S45 FR-R-090C-LS-25-20-NN-N-3-S1R2-A1N-AAA-NNN-NNN
Danfoss S45 variabel piston pump for open circuit.

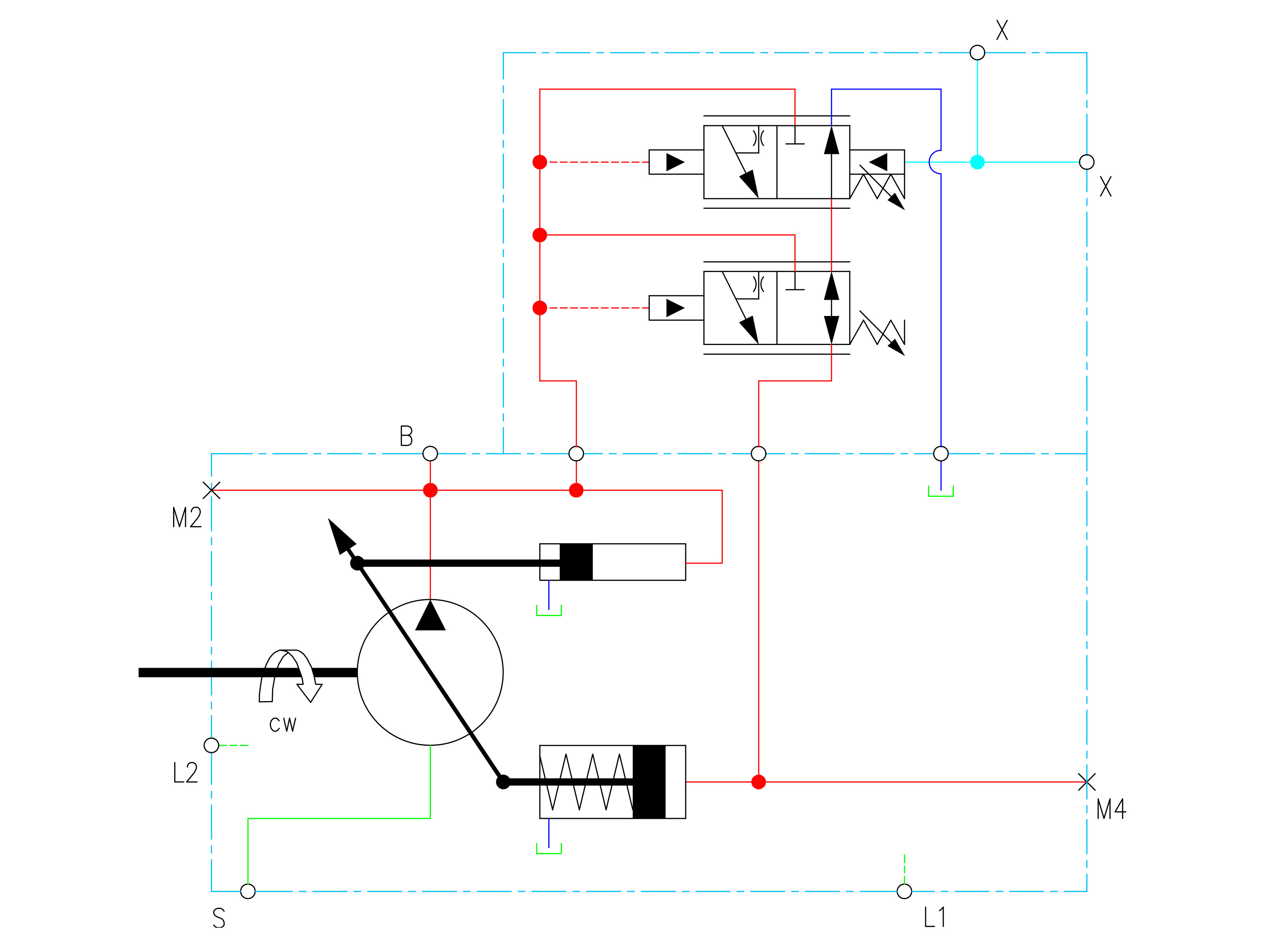

Regulations: Pressure Compensator, Load sensing, PC controlled pressure.
Connections: SAE flange side connection in endcap.
Shaft- and o-ringsseals in Viton®.
Partnumber:
7002511
Package size:
1 st
Min. order quantity is:
1 st
AuxMount/EndCap code
R2
Brand Name
Danfoss
Contamination level max.
22/18/13 - ISO 4406
Continuous rotation max.
2200 rpm
Control
Load sensing
Control type
LS
Displacement
90 cm3
Displacement limiter
Adjustable
Flange SAE/DIN
3000 PSI
Flange inlet
2 "
Flange outlet
1 "
Holes circle
161.9 mm
Model
Frame F
Model code
FR-R-090C-LS-25-20-NN-N-3-S1R2-A1N-AAA-NNN-NNN
Mounting flange
SAE-C4
Number of mounting holes
4
Number of outer grooves
14
Oil viscocity recommended
9 - 110 cSt
Port position
Side
Pressure continous max.
260 bar
Pressure max.
350 bar
Recess
127,0 mm
Rotation direction
Right (CW)
Rotation max. at max. pressure
2200 rpm
Rotational speed max.
2600 rpm
Rotational speed min.
500 rpm
Sensor type
None
Shaft code
S1
Shaft diameter
31,2 mm
Shaft seal material
FKM/FPM (Viton®)
Shaft spline
14T 12/24 SAE-C
Shaft type
Spline
Temperature intermittent max.
+104 °C
Temperature max.
+82 °C
Temperature min.
-40 °C
Package size
1 st
Barcode
334094
Gross weight
32,00 Kg
Net weight
32,00 Kg
Country of origin
Intrastat code
84122981
Danfoss S45 variabel piston pump for open circuit.
Regulations: Pressure Compensator, Load sensing, PC controlled pressure.
Connections: SAE flange side connection in endcap.
Shaft- and o-ringsseals in Viton®.
