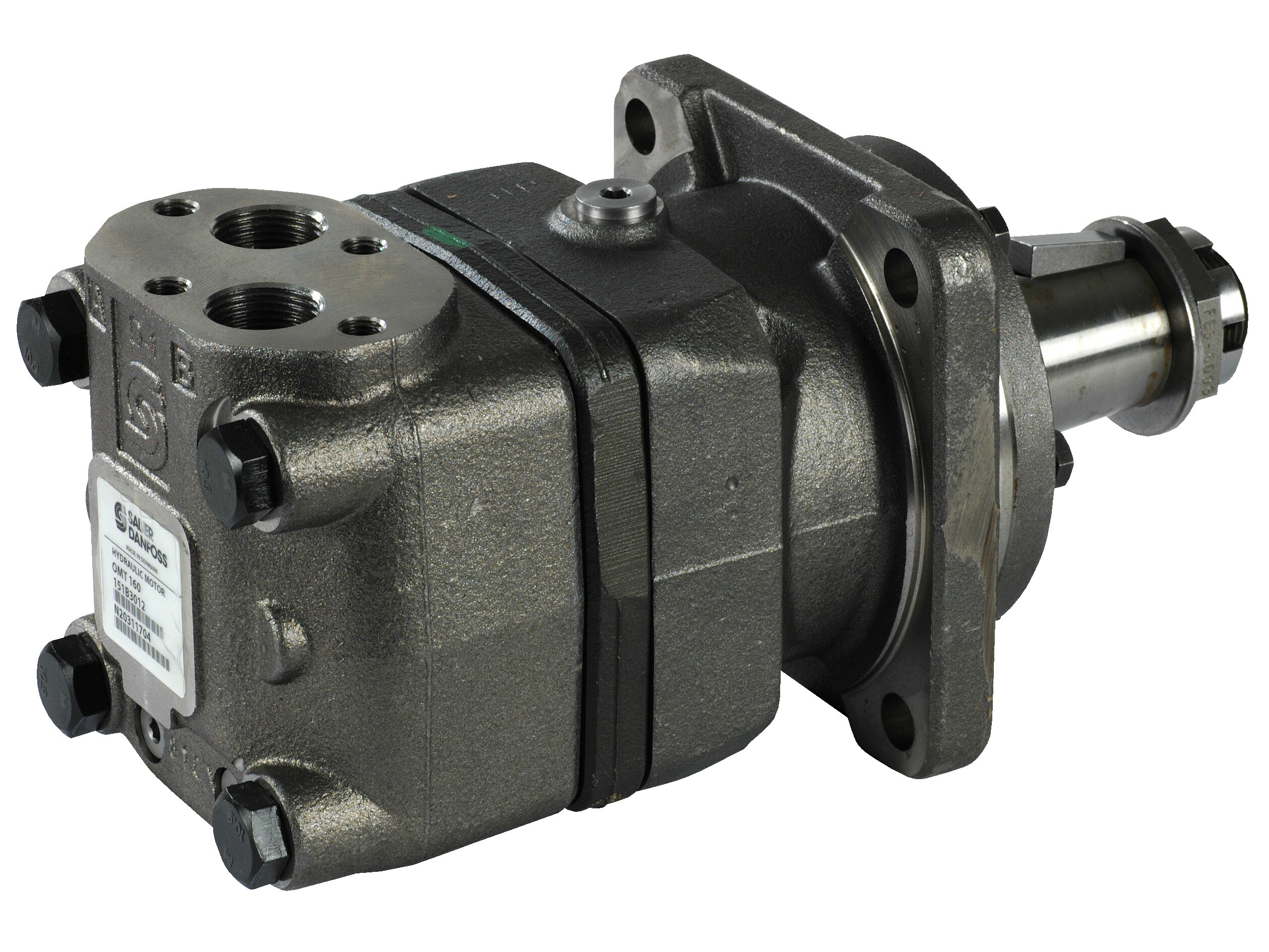

OMT 315 HYDRAULIC MOTOR
Orbital motor for heavy applications. Shaft with taper roller bearings ensures high static and dynamic bearing capacity. Orbit kit with rollers, separate integrated valve. High volumetric and mechanical efficiency. Long durability at high pressure. OMT has internal flush valves.
Artikelnummer:
151B3015
Förpackningsstorlek:
1 st
Minsta beställningskvantitet:
1 st
Brand Name
Danfoss
Contamination level max.
22/20/16 - ISO 4406
Continuous power max.
33.5 kW
Continuous rotation max.
380 rpm
Dimension L
211 mm
Dimension L1
37 mm
Dimension L2
161 mm
Dimension L3
82 mm
Displacement
326.3 cm3
Drainport
G 1/4 BSP
Holes circle
160 mm
Mounting flange
Square 125
Number of mounting holes
4
Oil viscocity recommended
20 - 75 cSt
Port position
Side
Pressure drop continuous max.
200 bar
Recess
125,0 mm

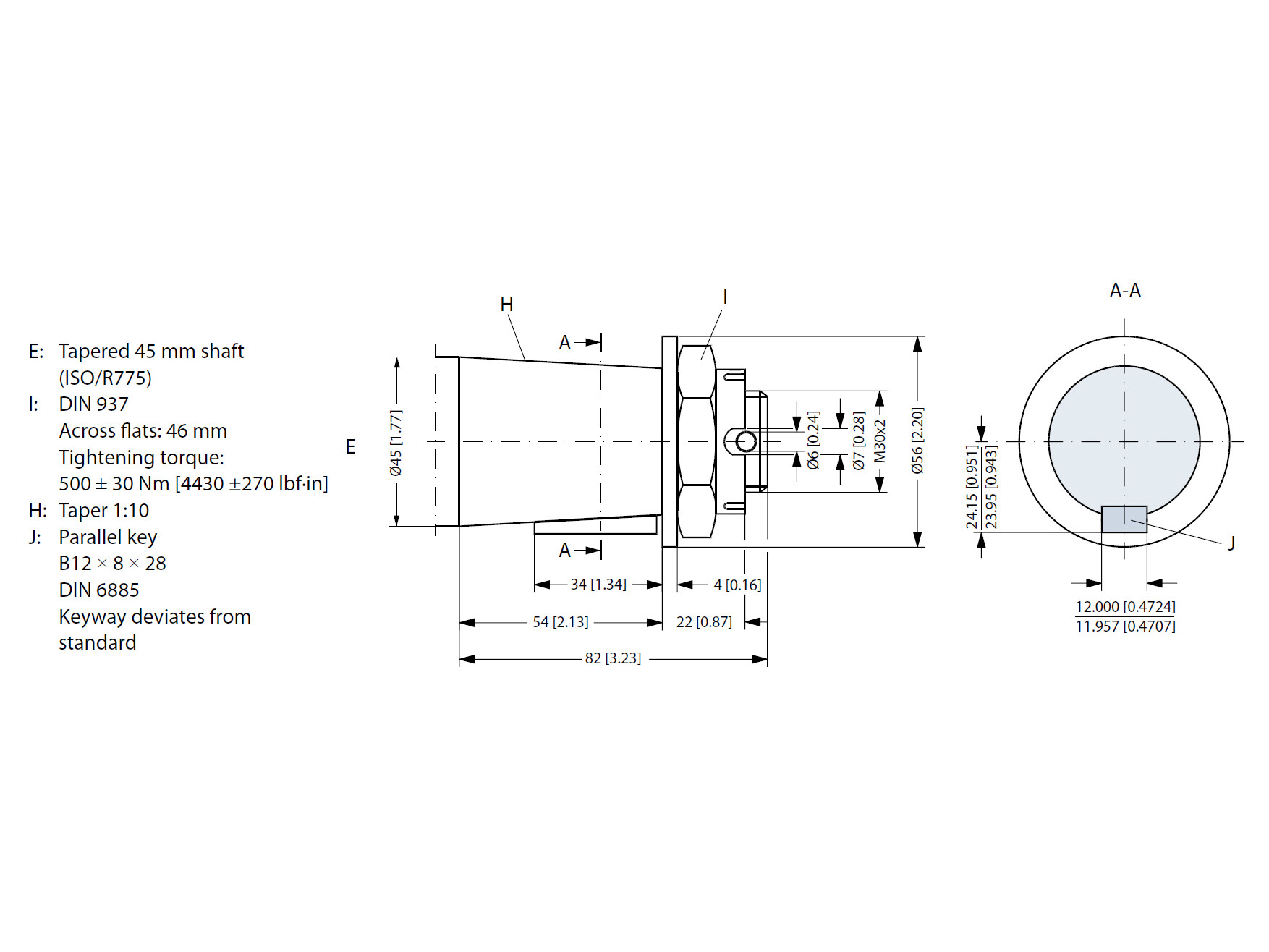

Shaft cone
1:10
Shaft keyway
12,0 mm
Shaft type
Tapered
Temperature ambient max.
+90 °C
Temperature ambient min.
-30 °C
Torque continuous max.
950 Nm
Working ports
G 3/4 BSP
Pakke str.
1 st
Stregkode
333814
Brutto vægt
22,50 Kg
Netto vægt
22,50 Kg
Oprindelsesland
Intrastat varekode
84122981
Orbital motor for heavy applications. Shaft with taper roller bearings ensures high static and dynamic bearing capacity. Orbit kit with rollers, separate integrated valve. High volumetric and mechanical efficiency. Long durability at high pressure. OMT has internal flush valves.
