Flow Divider ventil 57l/m 1:2 CP341-1-B-0-0510

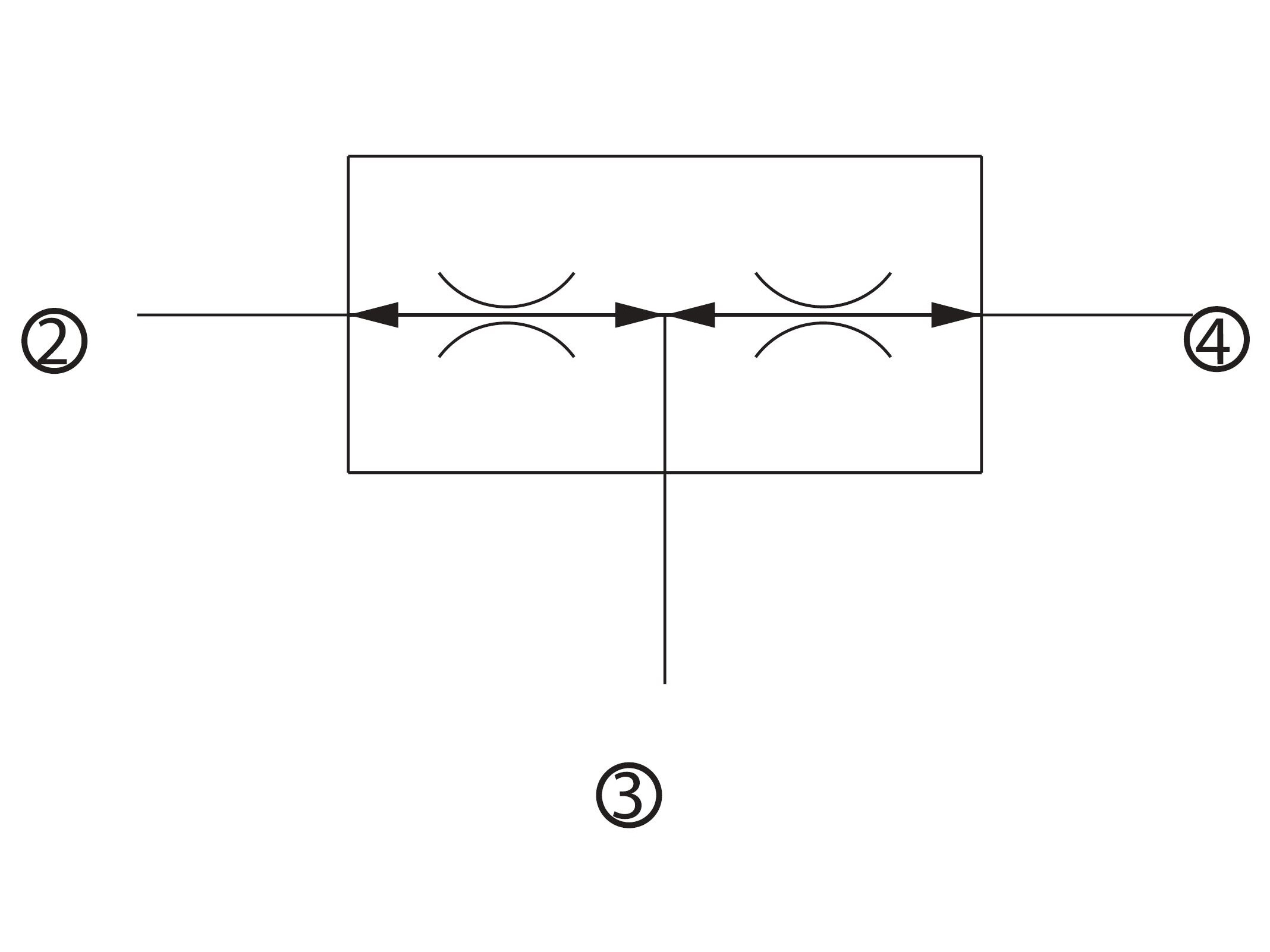

This is a fixed ratio flow divider/combiner valve.
In dividing mode, flow enters port 3 and passes across two fixed orifices in linked spools. If the pressure drop through one orifice is higher than the other, then the spools will move together to restrict the flow in the lower pressure outlet port. This maintains equal pressure drops across the spools, thus maintaining the flow division in the outlet ports.
In combining mode, flow will enter ports 2 and 4 pass through the orifices, which causes the spools to move to restrict the higher-pressure inlet and maintain equal pressure drops and equal flow into the valve.
Varenummer:
133037
Pakke str.:
1 st
Min. bestillingsenhed er:
1 st
Brand Name
Danfoss
Cavity
CP12-4
Contamination level max.
20/18/14 - ISO 4406
Flow max. regulated
57 lpm
Flow min. regulated
57 lpm
Flow rate nominal LMin
75 lpm
Model code
CP341-1-B-0-0510
Oil viscocity recommended
12 - 54 cSt
Pressure compensated
Yes
Pressure max.
210 bar
Sealing material
NBR
Temperature max.
+100 °C
Temperature min.
-40 °C
Torque tightening
68 - 75 Nm
Pakke str.
1 st
Stregkode
374654
Brutto vægt
0,23 Kg
Netto vægt
0,23 Kg
Oprindelsesland
ITA
Intrastat varekode
84812010
This is a fixed ratio flow divider/combiner valve.
In dividing mode, flow enters port 3 and passes across two fixed orifices in linked spools. If the pressure drop through one orifice is higher than the other, then the spools will move together to restrict the flow in the lower pressure outlet port. This maintains equal pressure drops across the spools, thus maintaining the flow division in the outlet ports.
In combining mode, flow will enter ports 2 and 4 pass through the orifices, which causes the spools to move to restrict the higher-pressure inlet and maintain equal pressure drops and equal flow into the valve.
