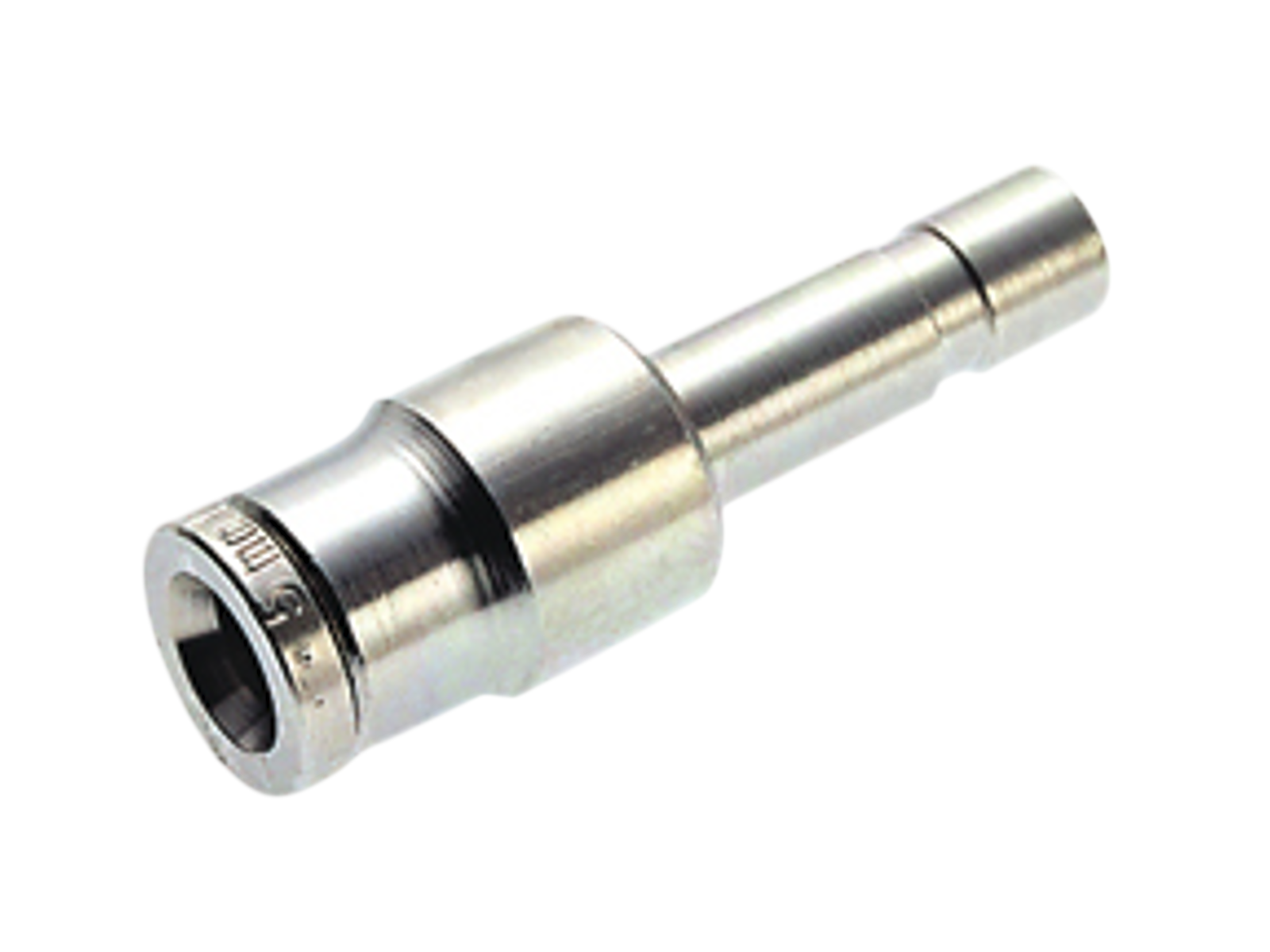

Pneufit 10 sup.connector with tubular thread

Pneufit 10 sup.connector with tubular thread

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Pressure max.
100230604 Skaftadapter Rak Ø4 mm Ø6 mm 20 bar
100230804 Skaftadapter Rak Ø4 mm Ø8 mm 20 bar
100230806 Skaftadapter Rak Ø6 mm Ø8 mm 20 bar
100231006 Skaftadapter Rak Ø6 mm Ø10 mm 20 bar
100231008 Skaftadapter Rak Ø8 mm Ø10 mm 20 bar
100231210 Skaftadapter Rak Ø10 mm Ø12 mm 20 bar
Angle
0
Brand Name
Norgren
Material
Brass, Stainless steel
Material quality
CW614N/CW617N
Pressure max.
20
REACH compliant
Yes
RoHs compliant
Yes
Sealing material
NBR, POM (Acetal)
Series
Pneufit
Standard
Silicone Free
Surface treatment
Nickel-plated
Temperature max.
+80
Temperature min.
-20
Vacuum max.
-0.9
