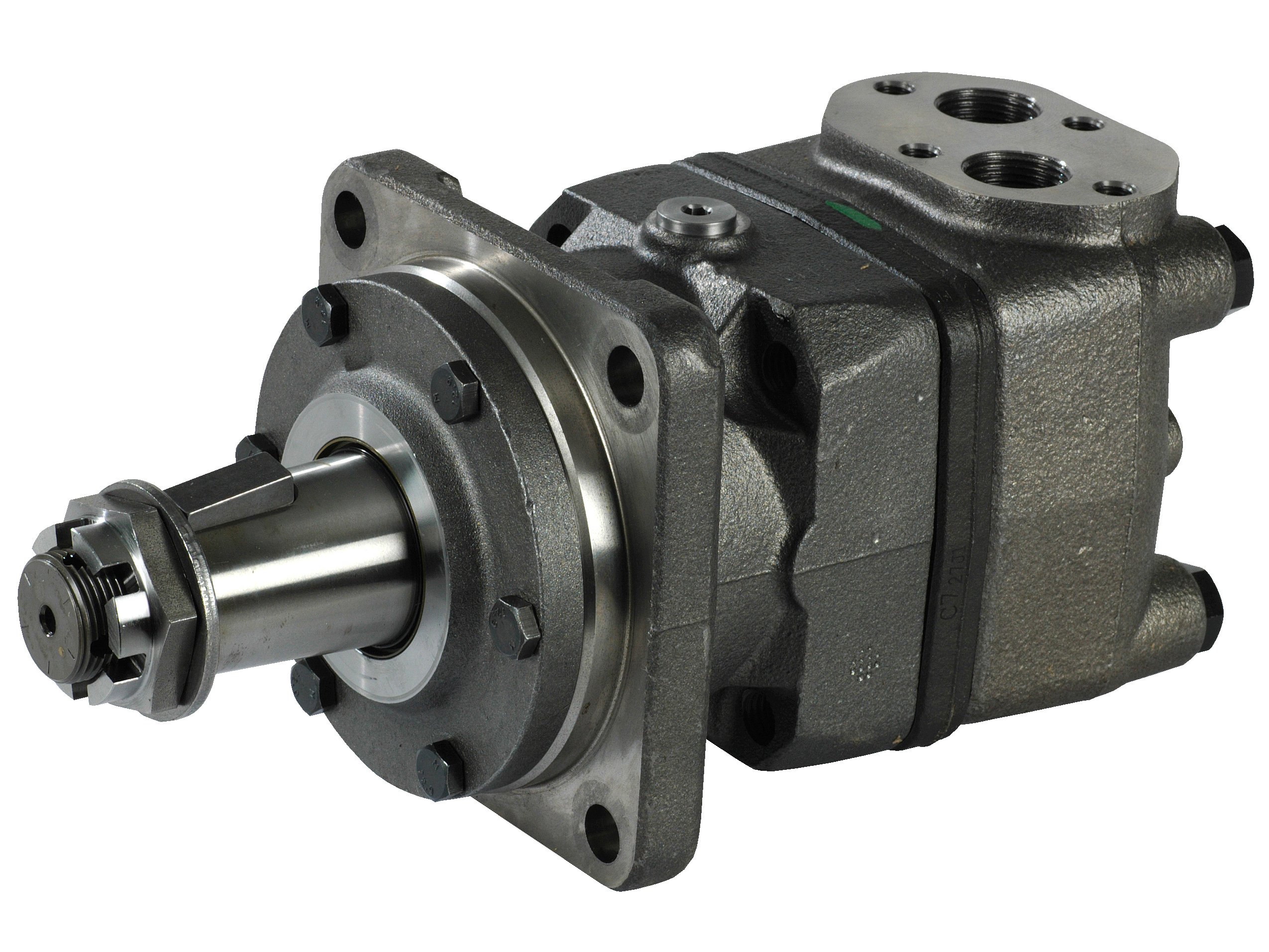

Orbital motors Danfoss OMVW tapered shaft

Orbital motors Danfoss OMVW tapered shaft

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Displacement Shaft diameter Shaft type Continuous power max.
151B3121 OMVW 400 HYDRAULIK MOTOR 400.9 cm3 60 mm Tapered 53.5 kW
151B3123 OMVW 630 HYDRAULIC MOTOR 629.1 cm3 60 mm Tapered 48 kW
Brand Name
Danfoss
Contamination level max.
22/20/16 - ISO 4406
Drainport
G 1/4
Holes circle
224
Mounting flange
Wheel 180
Number of mounting holes
4
Oil viscocity recommended
20 - 75
Port position
Side
Recess
180,0
Shaft cone
1:10
Shaft diameter
60
Shaft keyway
16,0
Shaft type
Tapered
Temperature ambient max.
+90
Temperature ambient min.
-30
Working ports
G 1
