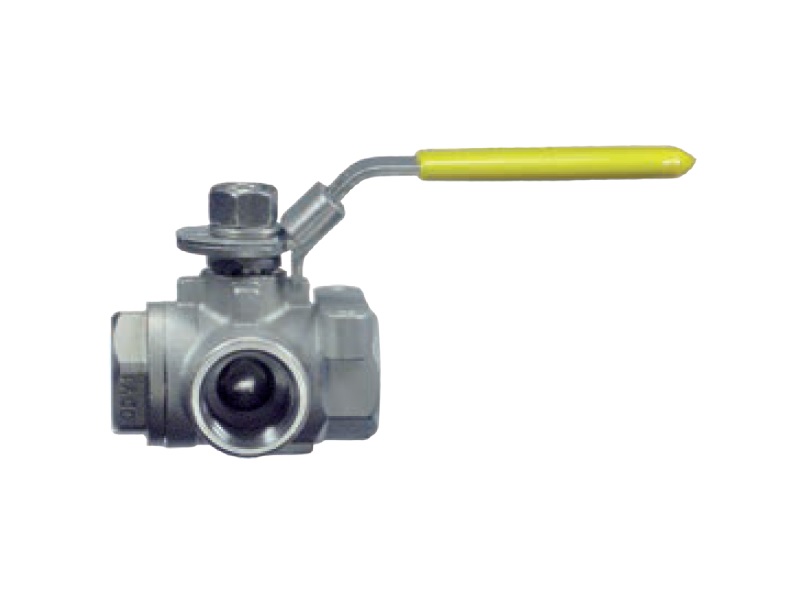

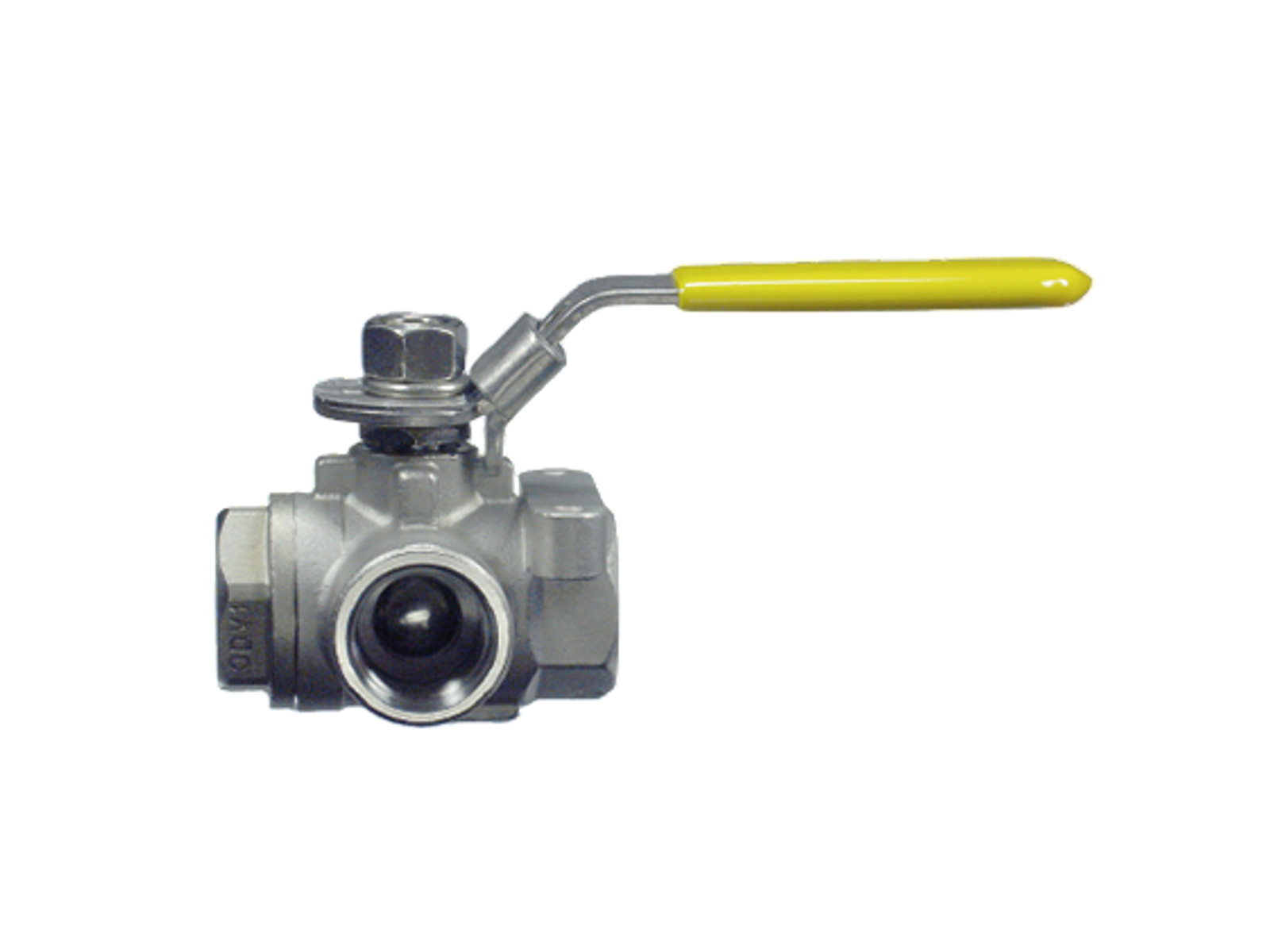

Ball valve 3 way - BSP, T-bore, stainless 1.4408 - GD3115 / S361-SY / H3K60

Ball valve 3 way - BSP, T-bore, stainless 1.4408 - GD3115 / S361-SY / H3K60

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Thread Hole Pressure max.
H3K60-04T 3-tieventtiili T-poraus G 1/4 BSP 11 mm 63 bar
H3K60-08T 3-tieventtiili T-poraus G 1/2 BSP 12 mm 63 bar
H3K60-12T 3-tieventtiili T-poraus G 3/4 BSP 63 bar
H3K60-16T 3-tieventtiili T-poraus G 1 BSP 18 mm 63 bar
H3K60-24T 3-tieventtiili T-poraus G 1.1/2 BSP 32 mm 63 bar
Bore
T
Material
Stainless steel
Material quality
1.4408 / AISI316L
Pressure max.
63
Sealing material
NBR, PTFE (Teflon®)
Standard DIN
DIN 2999
Temperature max.
+180
