Kulmaliitin 90° suunnat uk-uk
-
ORFS 90° directional basic connector
- External thread metric
- O-ring, NBR Shore 85 +5/0 and support ring
- External thread with ORFS O-ring
- ISO 1179 - for threaded ports
- Operating temperature: -20° -
Osanumero:
WOM-16-16-FOR
Pakkauskoko:
30 pcs
Pienin tilausmäärä on:
1 pcs

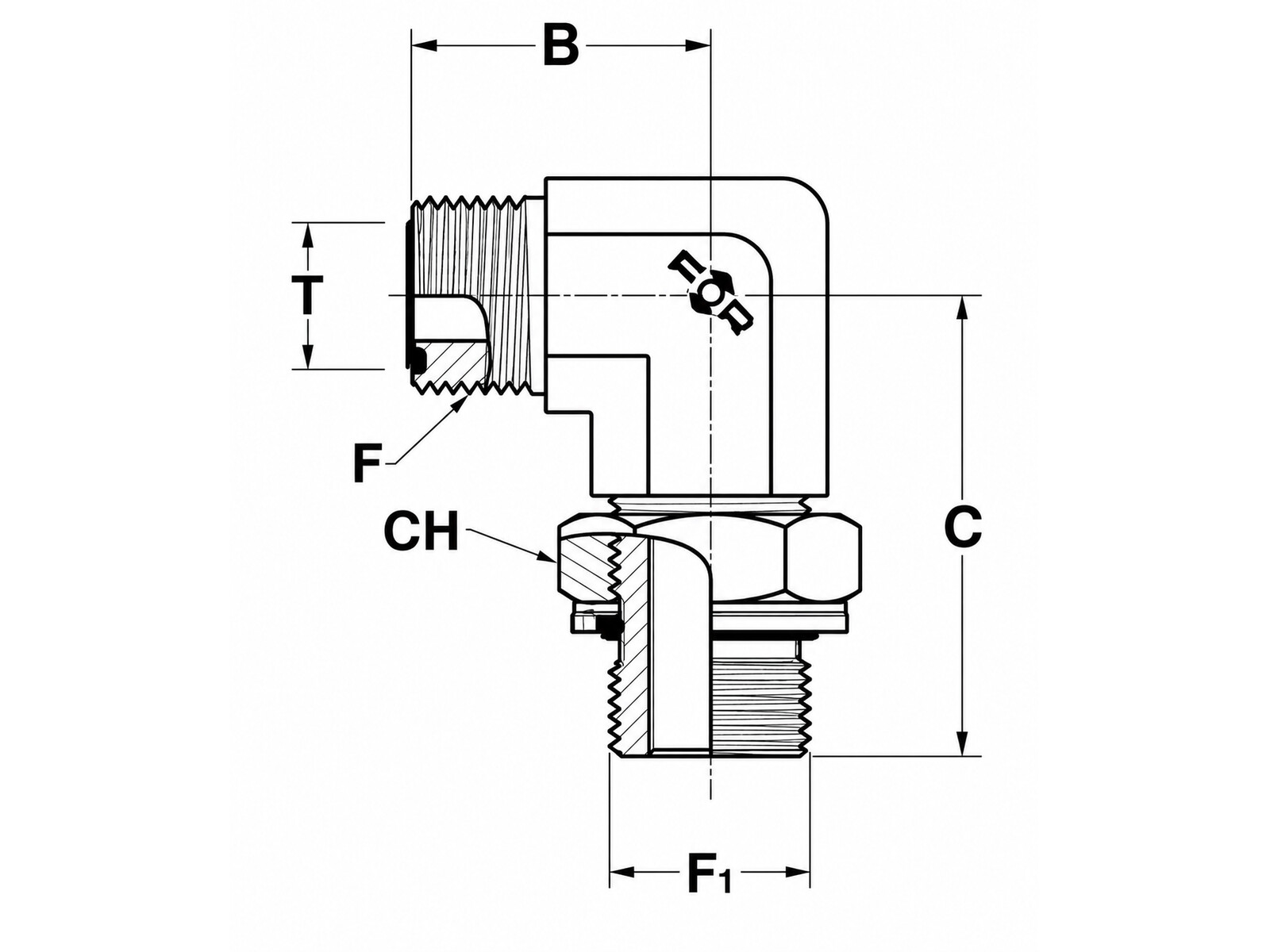

B
33,5 mm
CH
22 mm
Kierre ulko
1-14 ORFS
Kierre ulko MM
M16x1,5 mm
Korroosionkestävyys
1400 hours salt spray DIN EN ISO 9227
Kulma
90 °
Lämpötila max.
+120 °C
Lämpötila min.
-20 °C
Mallikoodi
SA507043/1616
Paine max.
250 bar
Pinta
Electro zinc plated
Standardi ISO
ISO 9974
Tiivistysmateriaali
NBR
Tuotemerkit
FOR
Package size
30 pcs
Barcode
432206
Gross weight
0,26 Kg
Net weight
0,26 Kg
Country of origin
ita
-
ORFS 90° directional basic connector
- External thread metric
- O-ring, NBR Shore 85 +5/0 and support ring
- External thread with ORFS O-ring
- ISO 1179 - for threaded ports
- Operating temperature: -20° -
Note: Opening 3D files requires a program that supports the file format
