Double overcenter valve G3/8"
It is preferable to place the valve as close to the actuator as possible, preferably directly on the actuator with fixed connections. This provides maximum protection in case of hose breaks and the like
Partnumber:
VBCD38-DEA-SF
Package size:
8 pcs
Min. order quantity is:
1 pcs
Brand Name
OM Oleodinamica Marchesini
C1
G 3/8 BSP
C2
G 3/8 BSP

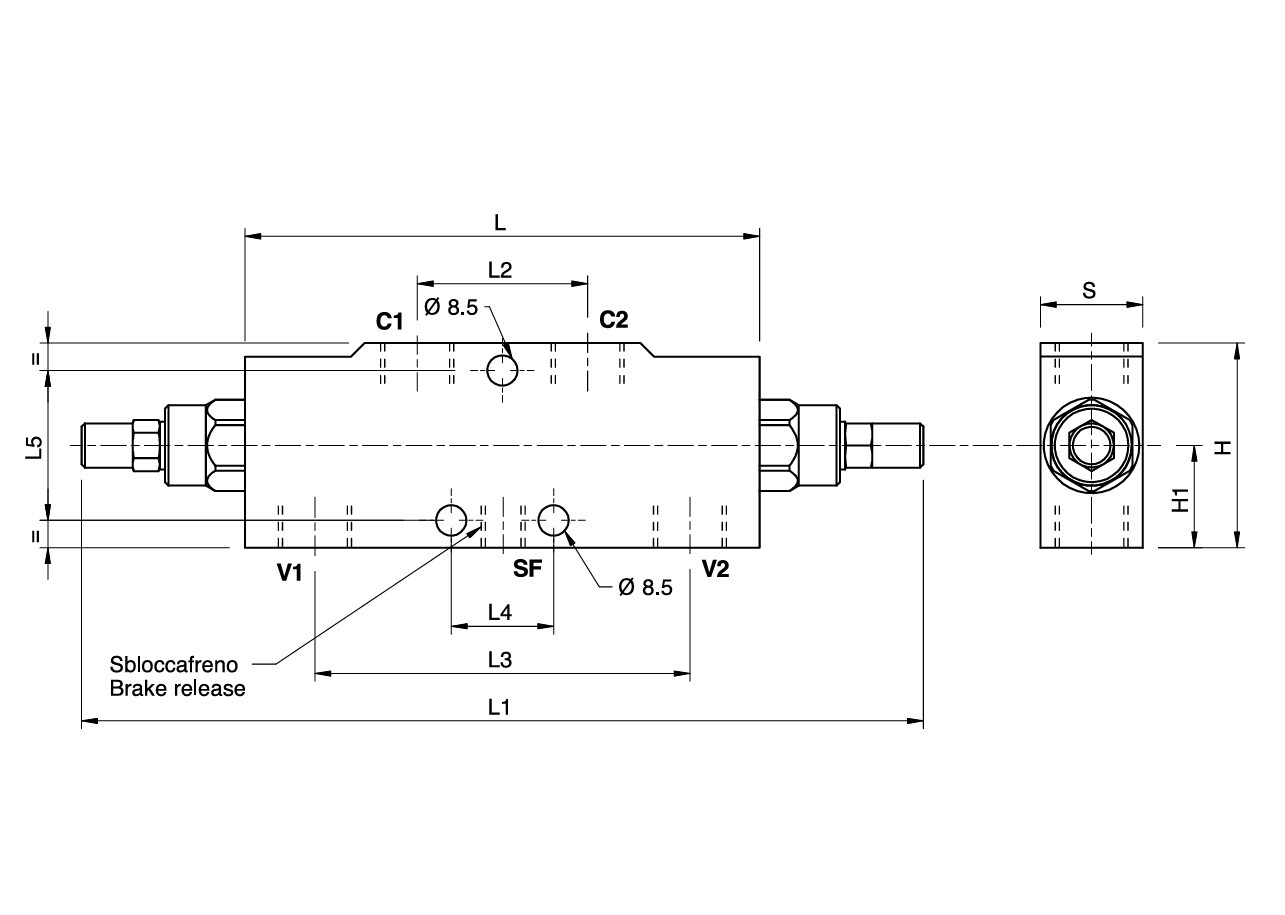

Flowrate nominal LMin
40 lpm
H
60 mm
H1
32 mm
L
150 mm
L1
248 mm
L2
50 mm
L3
110 mm
L4
30 mm
L5
50 mm
Material
Zinc-Plated Steel
Model code
V0422/SF
Pilot ratio
1:4,5
Pressure max.
350 bar
S
30 mm
SF
G 1/4 BSP
Sealing material
NBR
Surface treatment
Zinc-plated
Thread
G 3/8 BSP
V1
G 3/8 BSP
V2
G 3/8 BSP
Package size
8 pcs
Barcode
442985
Gross weight
Kg
Net weight
1,944 Kg
Country of origin
ita
Intrastat code
84812010
It is preferable to place the valve as close to the actuator as possible, preferably directly on the actuator with fixed connections. This provides maximum protection in case of hose breaks and the like
