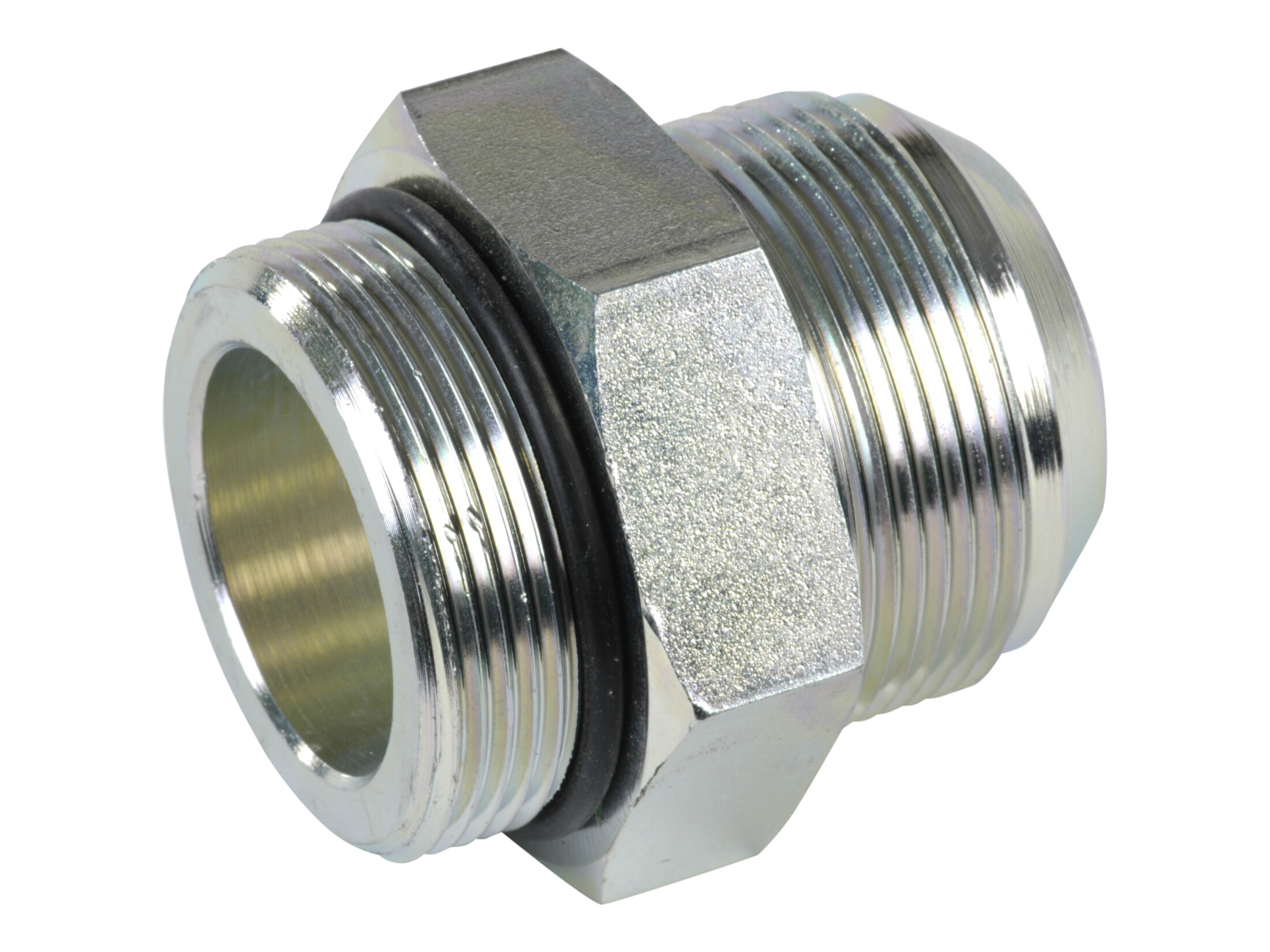

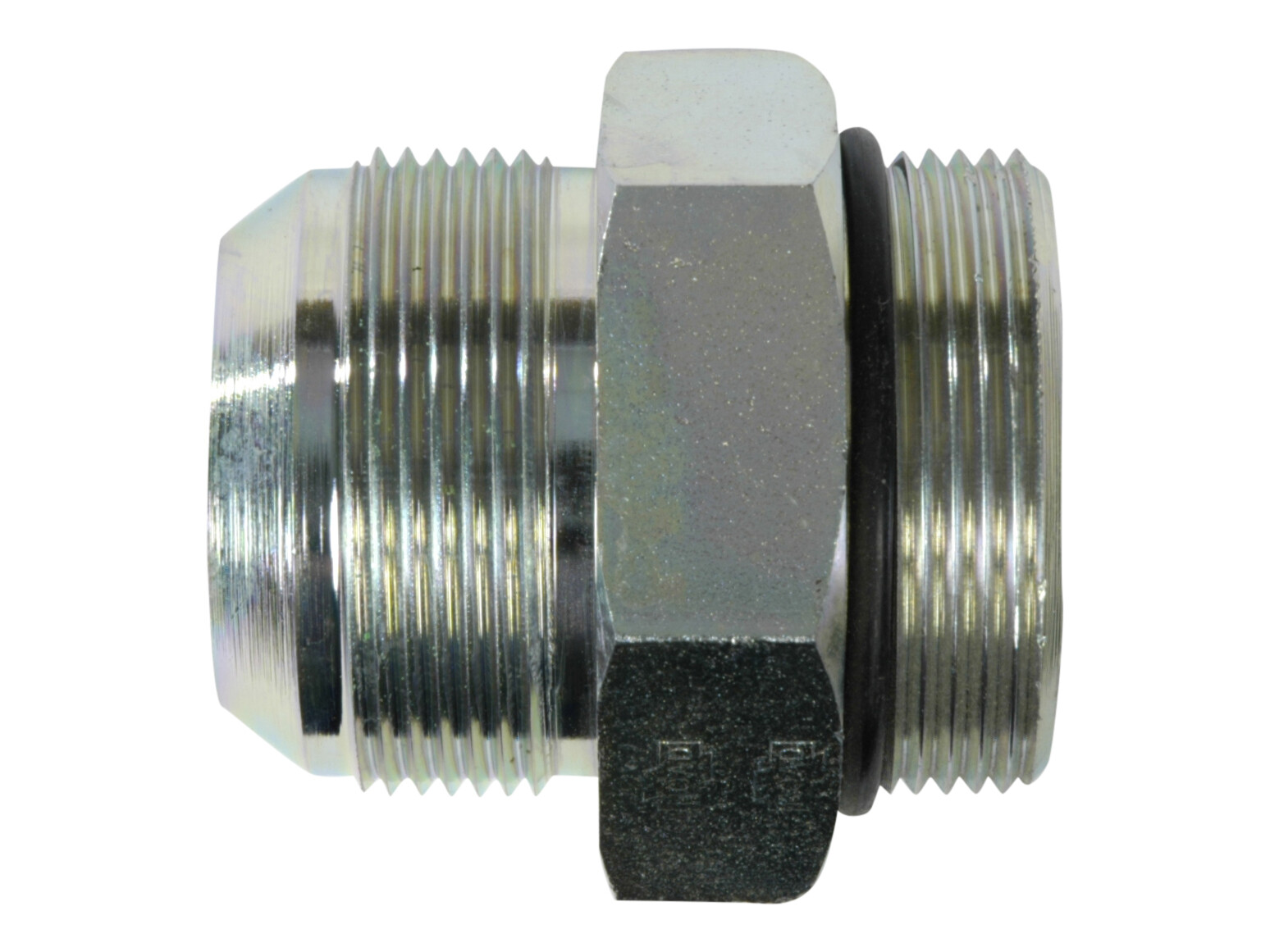

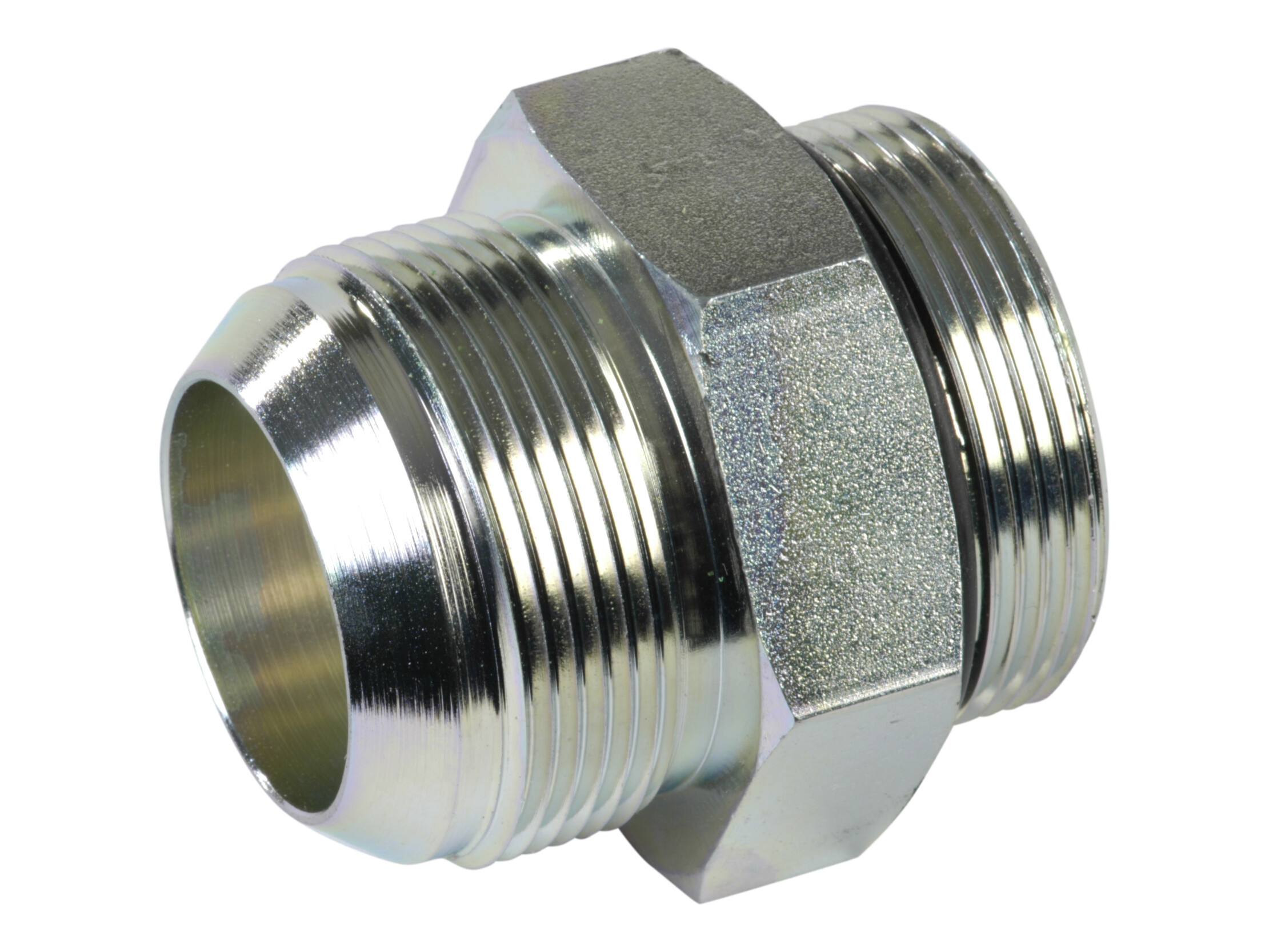

S220-38-48U adaptor UNF
-
JIC 37° male straight basic connector
- Male thread SAE UNF-UN
- O-ring, NBR Shore 85 +5/0
- ISO 11926 - for threaded ports
- Operating temperature -20° to +120°
Partnumber:
S220-24-FOR
Package size:
1 kpl
Min. order quantity is:
1 kpl
A
60 mm
Angle
0 °
B
27,5 mm
Brand Name
FOR
CH
55 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
15 mm
Diameter pipe
38 mm
Dimension F
1.7/8-12 UNF
F
1.7/8-12 UNF
J
1.7/8-12 JIC
Material
Steel
Model code
A102012/3848
Pressure max.
250 bar
Sealing material
NBR
Standard ISO
ISO 11926
Surface treatment
Electro zinc plated
T
38 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
1.7/8-12 JIC
Thread outer
1.7/8-12 UNF
Package size
1 kpl
Barcode
483508
Gross weight
0,15 Kg
Net weight
0,15 Kg
Country of origin
ITA
Intrastat code
73071110
-
JIC 37° male straight basic connector
- Male thread SAE UNF-UN
- O-ring, NBR Shore 85 +5/0
- ISO 11926 - for threaded ports
- Operating temperature -20° to +120°
