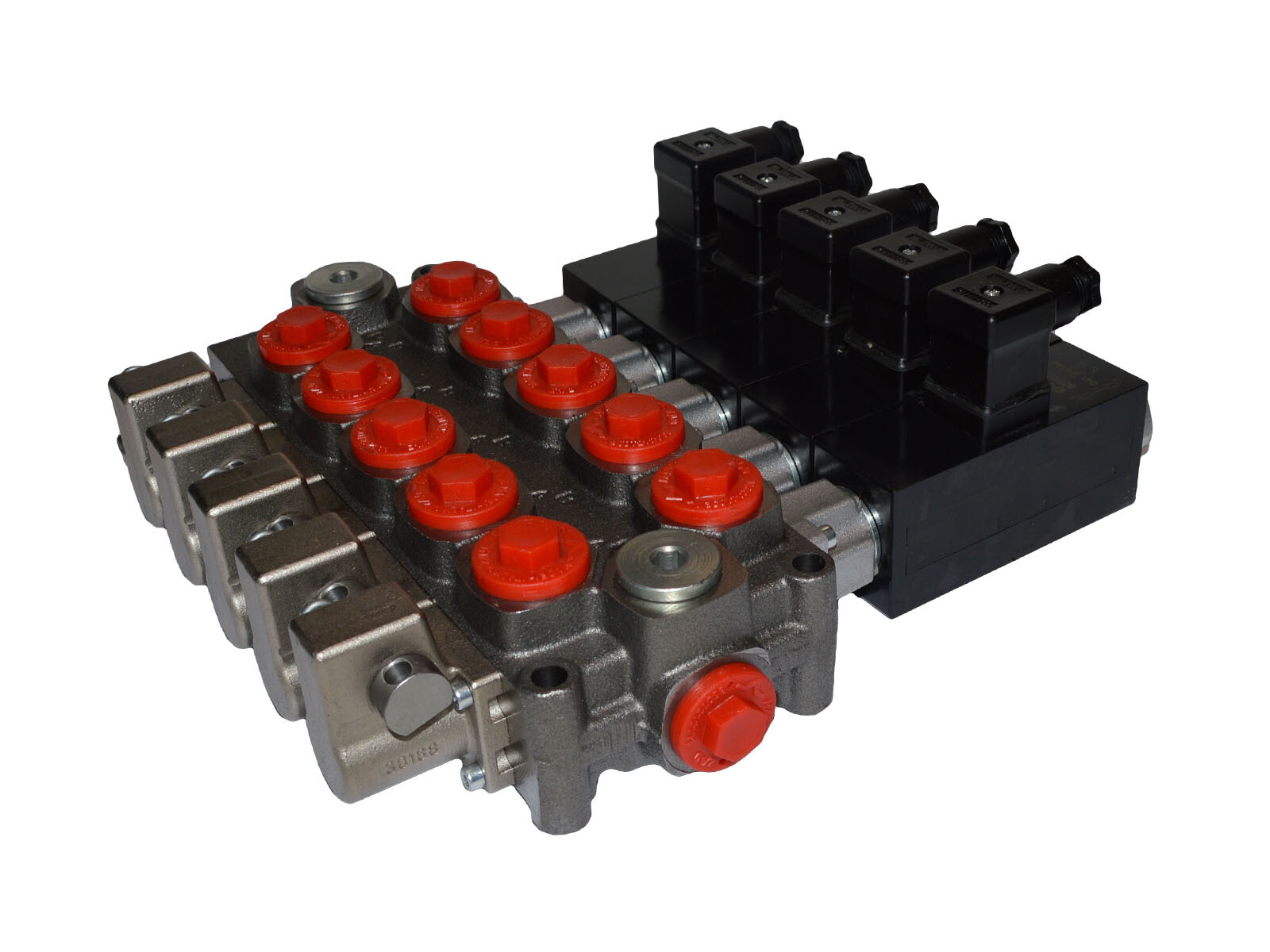

Q45-F1S(N)4x103/A1/D41/12V-F3D

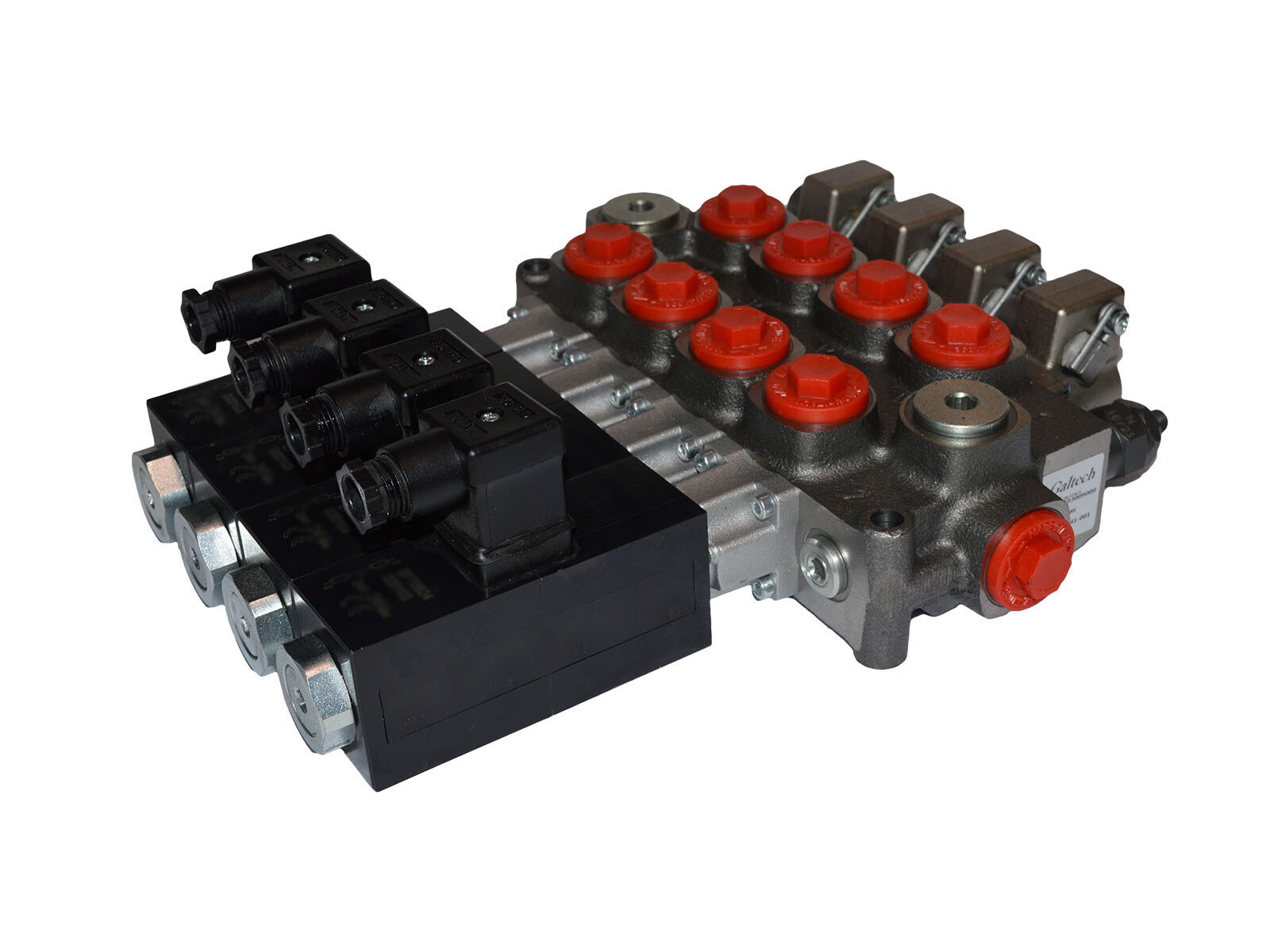

4-section Q45 monoblock directional valve with built-in pressure relief valve. Manually and solenoid activated.
Spool function: 4 x double acting with port A and B closed in neutral position. Spring centered.
Open center port P to T in neutral position.
Partnumber:
Q45/4X03D
Package size:
1 kpl
Min. order quantity is:
1 kpl
Activation
Manual, Solenoid
Brand Name
Walvoil
Contamination level max.
16/14/12 - ISO 4406
Current type
DC
Diameter Bolt hole
6,0 mm
Dimension F
221 mm
E
190 mm
Flow rate nominal LMin
50 lpm
Lever
Exclusive
Material
Cast iron
Model code
Q45-F1S(N)4x103/A1/D41/12V-F3D
Number of sections
4
Oil viscocity recommended
10 - 400 cSt
Port P
G 1/2 BSP
Port P1
G 1/2 BSP
Port T
G 1/2 BSP
Port T1
G 1/2 BSP
Pressure T max.
25 bar
Pressure carry-over
No
Pressure max.
300 bar
Pressure relief valve
Yes
Pressure setting max.
200 bar
Pressure setting min.
100 bar
Temperature max.
+80 °C
Temperature min.
-30 °C
Voltage
12 V
Working ports
G 1/2 BSP
Package size
1 kpl
Barcode
406026
Gross weight
12,38 Kg
Net weight
12,38 Kg
Country of origin
ITA
Intrastat code
84812010
4-section Q45 monoblock directional valve with built-in pressure relief valve. Manually and solenoid activated.
Spool function: 4 x double acting with port A and B closed in neutral position. Spring centered.
Open center port P to T in neutral position.
