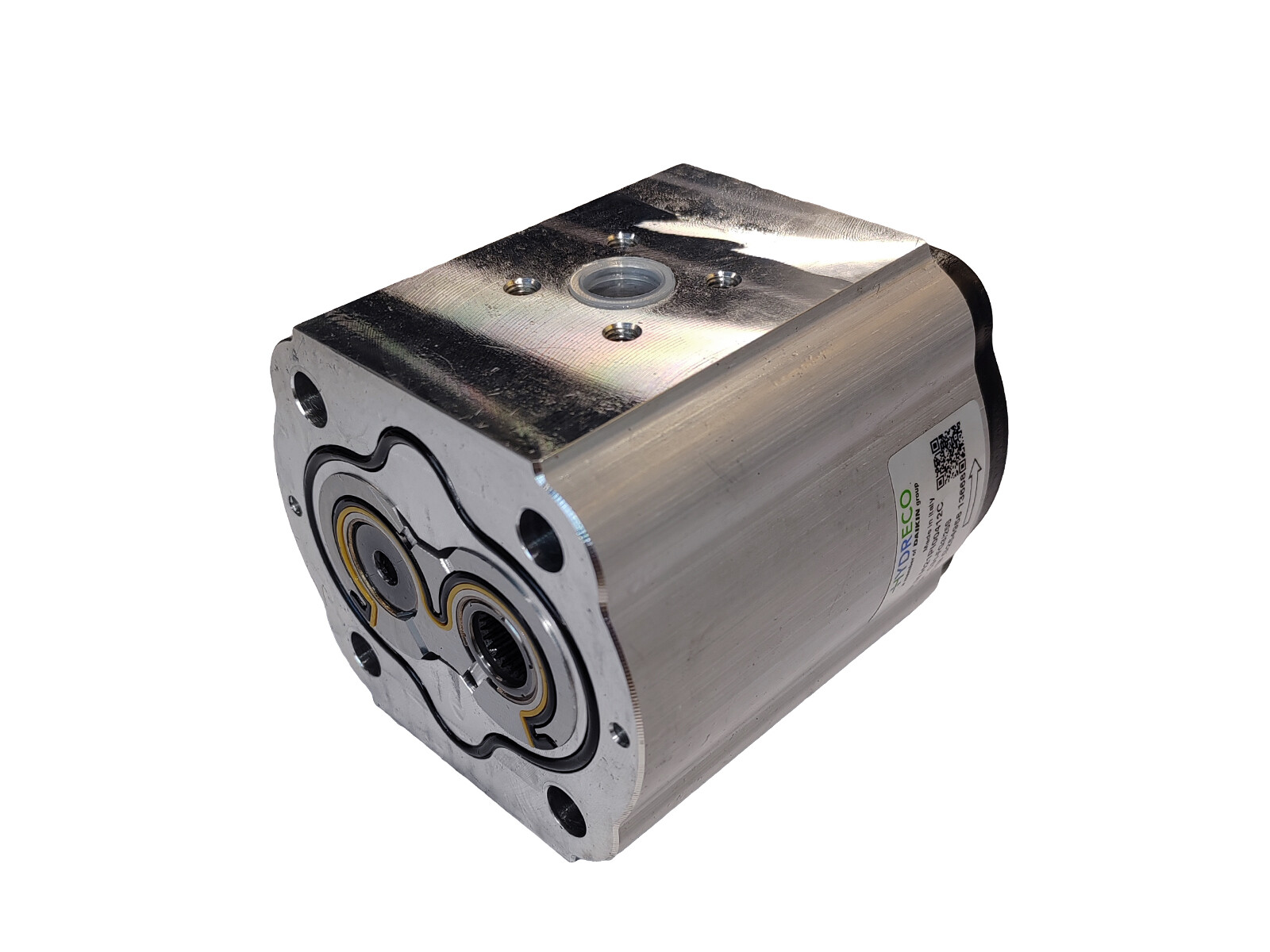

Gear pump Gr2. 4.5 cm³/r Ports 20x40xM6-15x35xM6
Intermediate pump
A= Aluminium body, cast iron rear flange.
2= 2 series
C= Right hand rotation
04= 4.5 cm³/r displacement
FG3/25S= Suction/pressure ports, German flanges, side
- Port size, suction 20 mm
- Bolt pattern, suction 40 mm
- Bolts 4x M8
- Port size, pressure 15 mm
- Bolt pattern, pressure 35 mm
- Bolts 4x M6
1= Series no.
N= NBR seals
Partnumber:
HYPA2C04FG3/25S1N
Package size:
1 kpl
Min. order quantity is:
1 kpl
Brand Name
Hydreco
Contamination level max.
19/17/14 - ISO 4406
Displacement
4.5 cm3
Material
Aluminium
Oil viscocity recommended
10 - 750 cSt
Port inlet
GE40
Port outlet
GE35
Pressure continous P2 max.
290 bar
Pressure continous max.
260 bar
Pressure intermittent max.
290 bar
Pressure peak max.
310 bar
Pump group
2
Rotation direction
Right (CW)
Rotational speed max.
4000 rpm
Rotational speed min.
600 rpm
Temperature max.
+80 °C
Temperature min.
-25 °C
Temperature working fluid max.
+80 °C
Package size
1 kpl
Barcode
485532
Gross weight
Kg
Net weight
3,40 Kg
Country of origin
ita
Intrastat code
84136031
Intermediate pump
A= Aluminium body, cast iron rear flange.
2= 2 series
C= Right hand rotation
04= 4.5 cm³/r displacement
FG3/25S= Suction/pressure ports, German flanges, side
- Port size, suction 20 mm
- Bolt pattern, suction 40 mm
- Bolts 4x M8
- Port size, pressure 15 mm
- Bolt pattern, pressure 35 mm
- Bolts 4x M6
1= Series no.
N= NBR seals
